Product Description

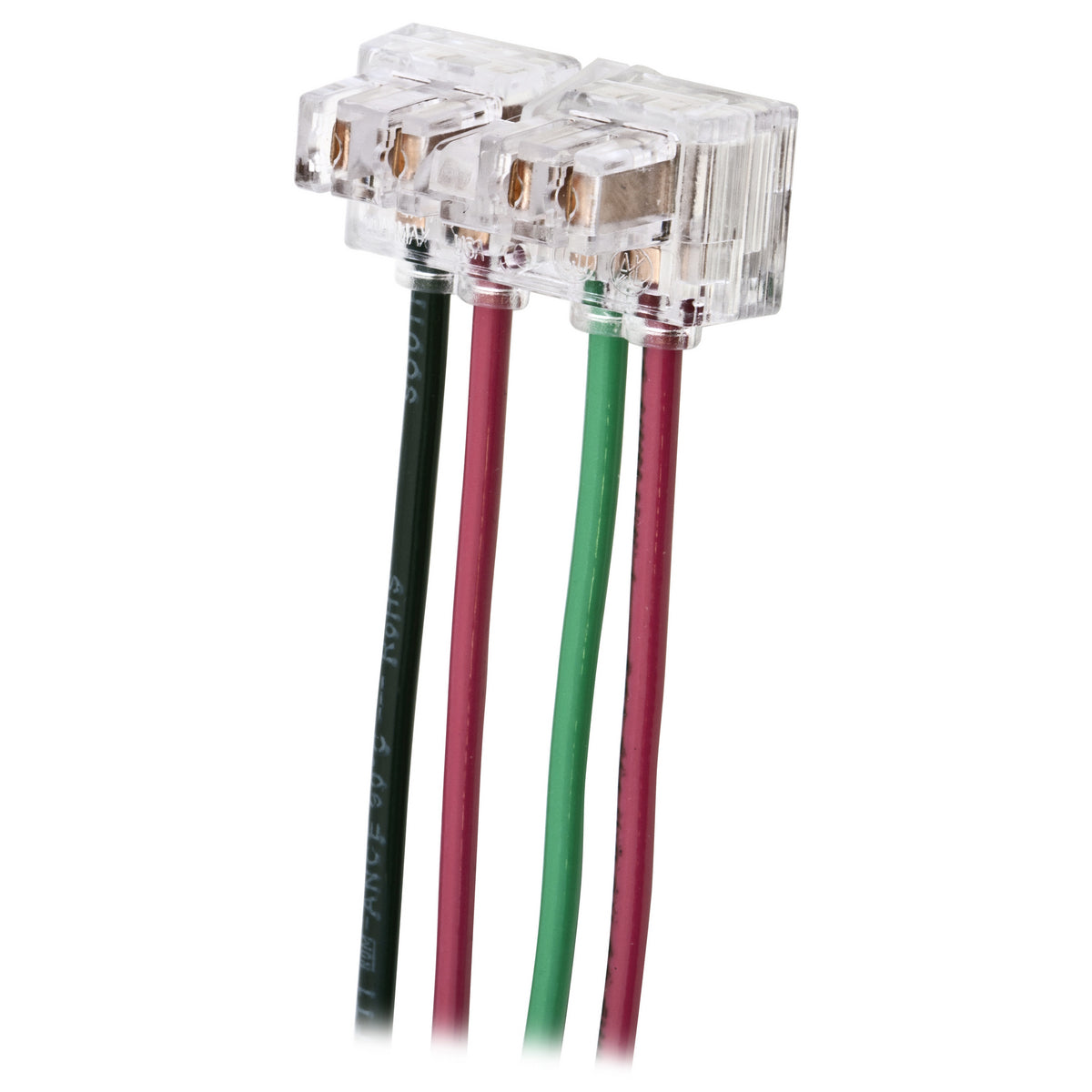

The Hubbell SNAP3W1NA is a wiring device designed for reliable connections. This switch pigtailed connector features a two-position, four-wire setup and is suitable for general-purpose applications. It is constructed with solid twelve AWG wire and fully insulated to ensure durability. Mounting is straightforward with the right-angle design and standard screw configuration, allowing for easy installation in various electrical environments.
- Clear terminal housing for visibility
- No exposed live parts for safety
- Quick connect terminations for efficiency
Product Highlights
This product is ideal for indoor dry environments and is compatible with three-way and illuminated applications.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 78358518997
Technical Specifications
-
Type: 2-Position 4-Wire General Purpose Heavy Duty Right Angle Standard Screw Mount
-
Color: Clear
-
Dimensions: 6.5 in L x 1.39 in W x 0.84 in H
-
Material: Polycarbonate
-
Application: Indoor Dry Environment, 3-Way and 3-Way Illuminated Applications
-
Voltage Rating: 120/277 VAC
-
Current Rating: 15/20 A
-
Operating Temperature: -40 to 75 deg C
-
Standards/Approvals: RoHS Compliant, NEMA WD1, UL 20
-
Features: Connectorized Connection, Threaded Mount, Industrial/Commercial Grade
