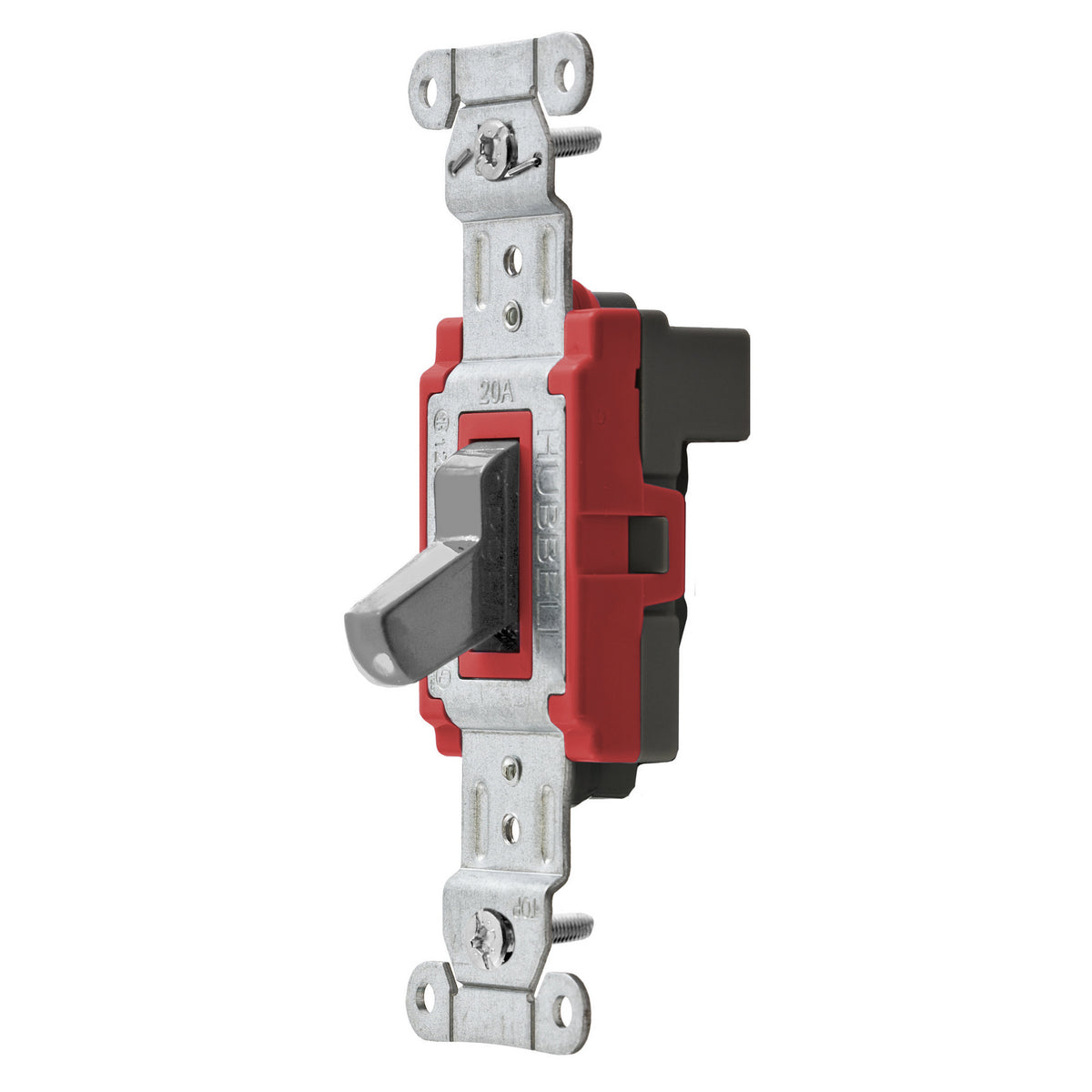

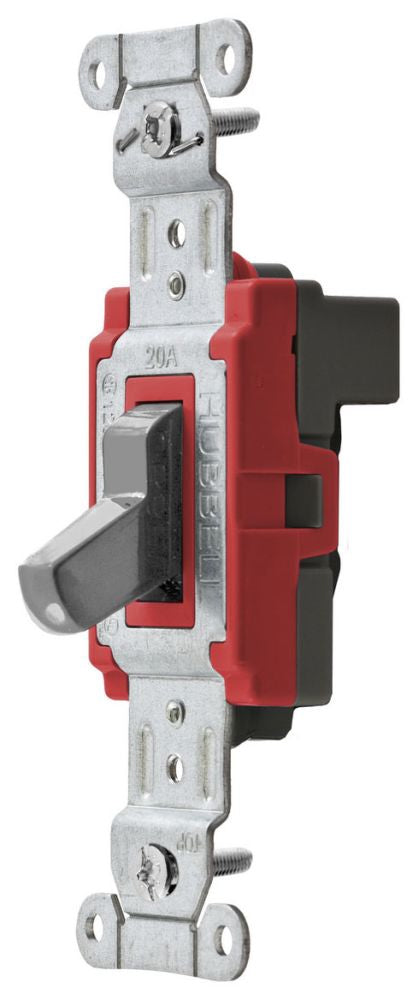

Hubbell SNAP1221GYNA Switch, SNAP, SP, 20A 120/277V

Product Description

The Hubbell SNAP1221GYNA is a toggle switch designed for industrial and commercial use. This single-pole switch operates at 20 amps with a voltage range of 120 to 277 volts. The construction includes a gray thermoplastic body, suitable for various applications including general purpose installations.

• Positive snap action for reliable performance
• UL and CSA approved for safety compliance
• Ideal for commercial and industrial environments

Product Highlights

Engineered for efficiency, the SNAPConnect design allows for easy installation and maintenance. This switch is built to withstand harsh environments.

Product Information

Standard Information

• Brand: Hubbell Incorporated
• MPN: SNAP1221GYNA

Technical Specifications

• Color: Gray
• Size: 4.18 x 1.3 x 1.74 inches
• Material: Thermoplastic
• Current Rating: 20A
• Voltage Rating: 120 to 277V
• Power Rating: 1 HP at 120V, 2 HP at 277V
• Operating Temperature: -40 to 75 degrees Celsius
• Approval: UL, CSA
