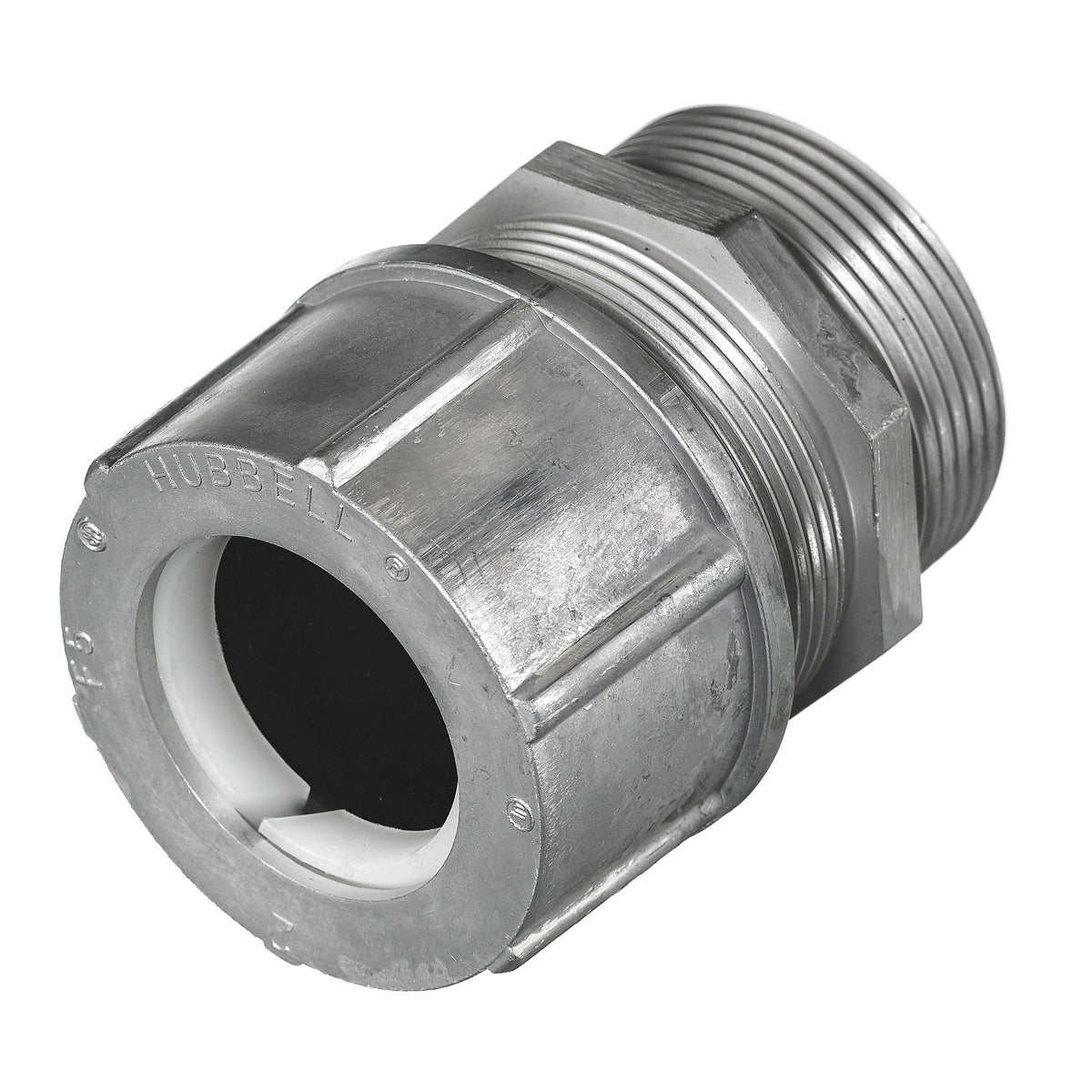

Hubbell SHC1092 Kellems Aluminum Cord Conn 78358520092

Product Description

The Hubbell SHC1092 is an aluminum cord connector designed for flexibility in different applications. This product is suitable for use in wet locations when paired with a listed nylon washer. The connector supports jacketed cables with openings measuring between two point four four inches to two point six three inches.

• One-piece design with machined threads for secure installation.
• Patented GOTCHA ring for strain relief.
• Temperature rated for -30 to 240 degrees Fahrenheit.

Product Highlights

Ideal for heavy-duty applications and environments requiring reliability, the SHC1092 is a versatile addition to your electrical fittings.

Product Information

Standard Information

• Manufacturer: Hubbell
• Trade Size: 3 in

Technical Specifications

• Application: For wet location use, hazardous location applications
• Cable Openings: 2.44 to 2.63 in
• Cable Type: Jacketed
• Dimensions: 4.5 in Dia x 4.08 in L
• Material: Aluminum
• Temperature Rating: -30 to 240 deg F
• Number of Conductors: 1
• Series: SHC
• Standards/Approvals: CSA Certified, RoHS Compliant, UL 514B
