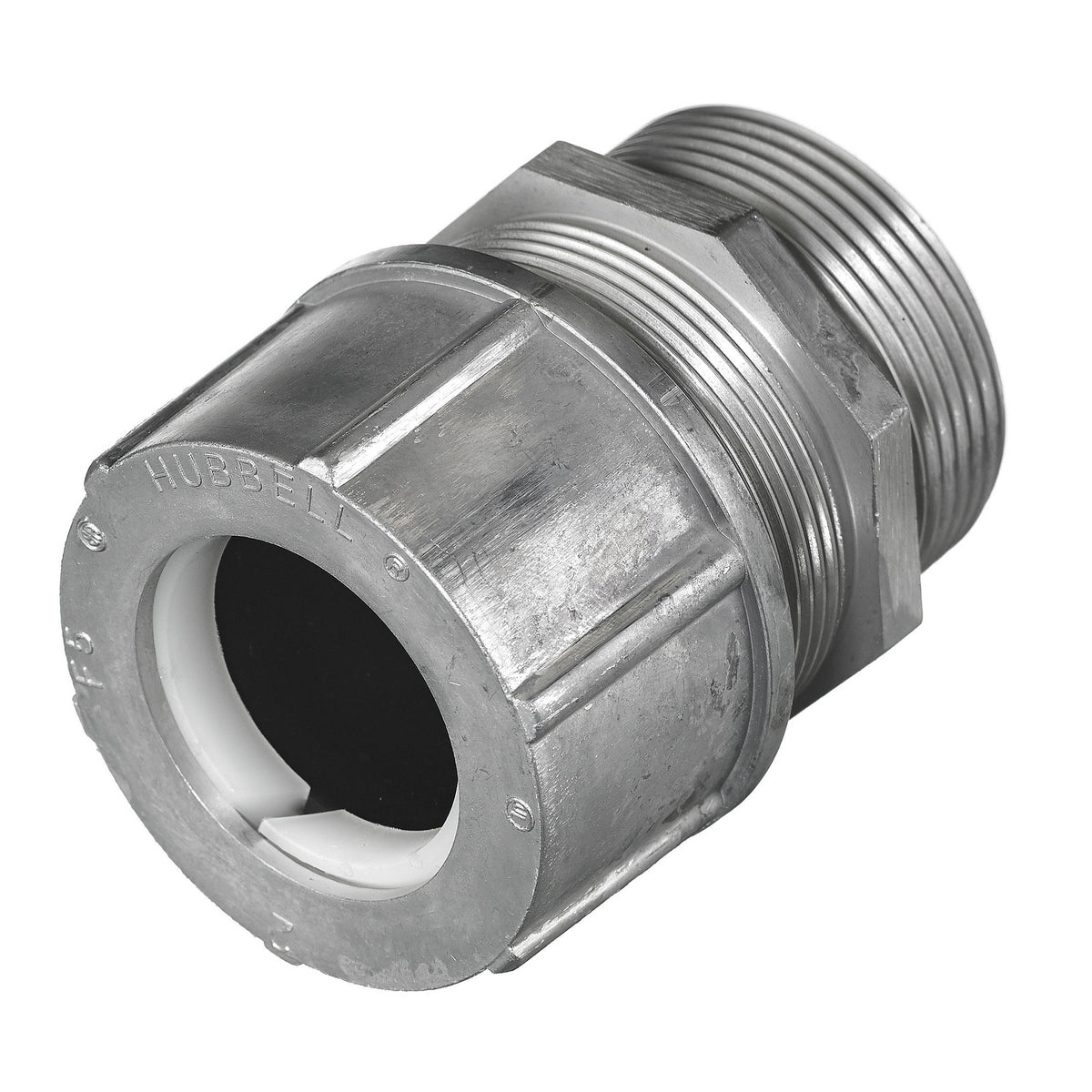

Hubbell SHC1069 SHC Form 6 Standard Straight Cord Connector 78358520069

Product Description

The Hubbell SHC1069 is a standard straight cord connector designed for reliable electrical connections. It features a sturdy, machined aluminum body that accommodates jacketed cables with openings ranging from 1.75 inches to 1.88 inches. This connector is especially suitable for applications in wet locations when used with a nylon washer.

• Cast aluminum construction with machined threads
• Temperature rated from -30 to 240 degrees Fahrenheit
• Supports a maximum trade size of 2 inches

Product Highlights

This device provides a liquid-tight seal and effective strain relief, making it ideal for many electrical applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: SHC1069

Technical Specifications

• Application: For wet location when used with a listed nylon washer
• Cable Openings: 1.75 to 1.88 inches
• Cable Type: Jacketed
• Connection Type: MNPT
• Dimensions: 3 inches diameter x 3 inches length
• Material: Aluminum
• Series: SHC
• Number of Conductors: 1
• Standards/Approvals: CSA Certified, UL 514B, RoHS Compliant
• Temperature Rating: -30 to 240 degrees Fahrenheit
