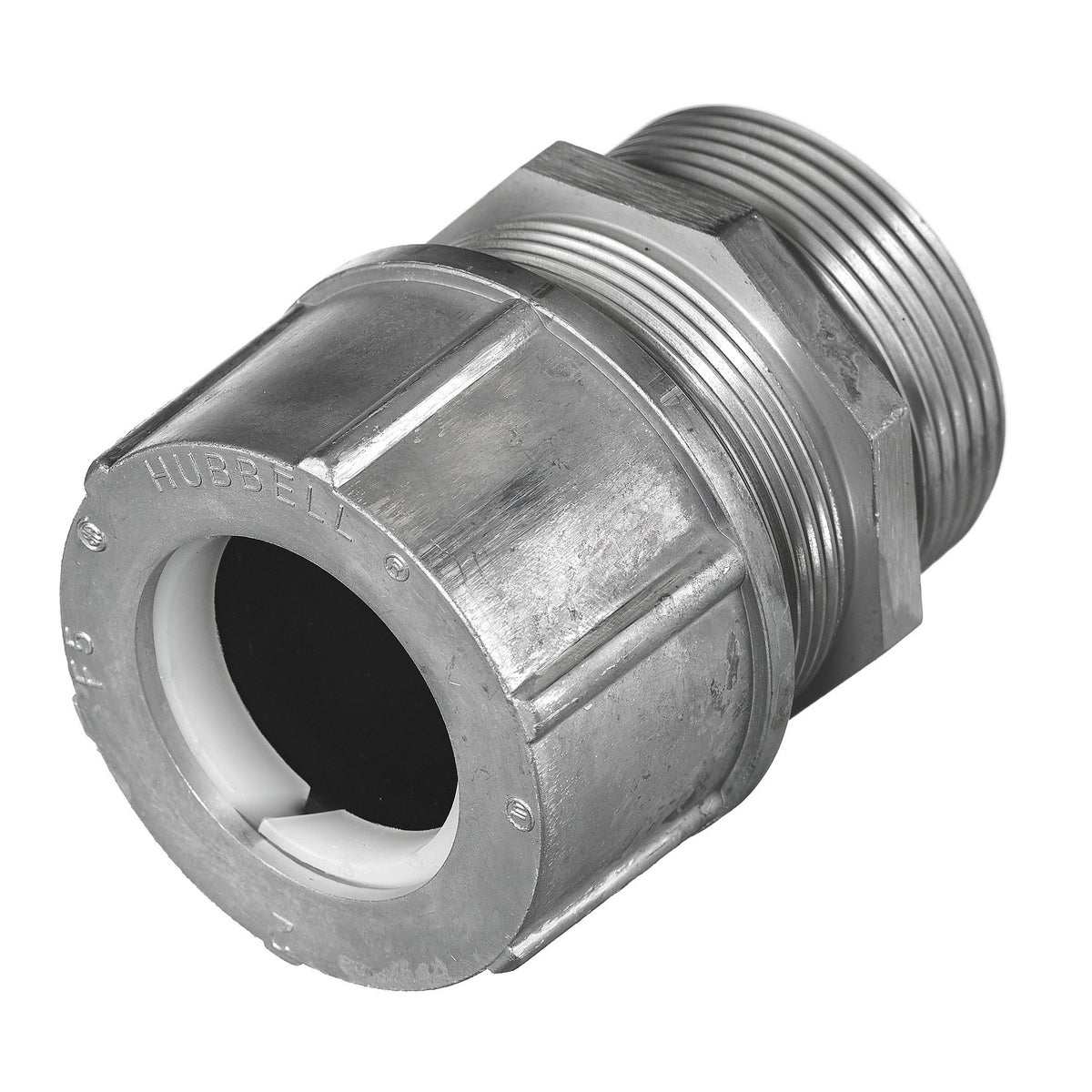

Hubbell SHC1054 HUB Strain Relief Conn Standard Duty Straight 1-1/4 in

Product Description

The Hubbell SHC1054 is a standard duty straight cord connector. It is designed for use with jacketed cables and features a trade size of one and one-quarter inches. This connector allows for cable openings that range from one point twenty-five to one point thirty-eight inches. It is made from machined aluminum, suitable for wet locations when a listed nylon washer is used. The SHC series connector provides strong and reliable connections.

• One piece design with machined threads
• Suitable for wet locations with nylon washer
• Temperature rating of negative thirty to two hundred twenty-five degrees Fahrenheit

Product Highlights

This product effectively seals and protects connections in various environments, especially when moisture is a factor.

Product Information

Standard Information

• Brand: Hubbell
• Manufacturer Part Number: SHC1054

Technical Specifications

• Application: For wet location with nylon washer, hazardous locations
• Cable Openings: 1.25 to 1.38 inches
• Cable Type: Jacketed
• Color: Metallic/White
• Connection Type: MNPT
• Dimensions: 2.31 inches diameter x 2.36 inches length
• Finish: Machined
• Material: Aluminum
• Number of Conductors: 1
• Series: SHC
• Standards/Approvals: CSA Certified, RoHS Compliant, UL 514B
• Temperature Rating: -30 to 225 degrees Fahrenheit
• Trade Size: 1-1/4 inches
• Type: Form 5 Standard Duty Straight
