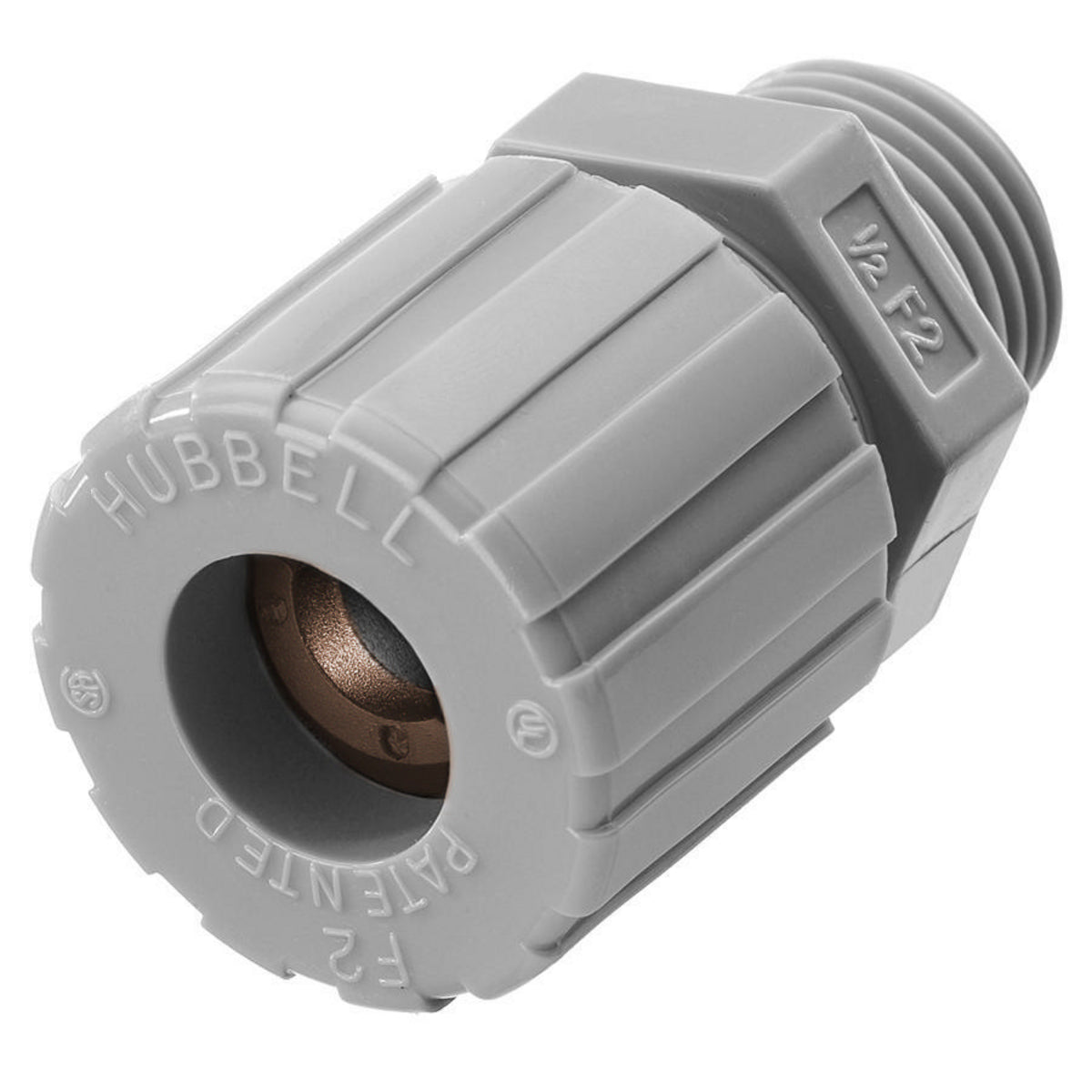

Hubbell SHC1036CR Cord Connector Straight Male 3/4 Inch Nylon 0.50 to 0.63 Inch

Product Description

The Hubbell SHC1036CR is a cord connector, straight male, with a 3/4 inch hub, made of nylon, and designed for diameters from 0.50 to 0.63 inches. These nylon cord connectors resist most common industrial corrosives and provide effective pullout protection. They are ideal for applications where weight, conductivity, or corrosion may be an issue.

• Nylon cord connectors resist corrosion
• Tapered interior seats the bushing evenly for a liquidtight seal
• The connector body is a one-piece design with machined threads

Product Highlights

Straight male cord connector with a 3/4 inch hub, constructed from nylon for corrosion resistance and effective pullout protection.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: SHC1036CR
• Country of Origin: China

Technical Specifications

• Application: Straight Male- Form 3
• Standard: In Accordance With Standard 514B For Indoor,Outdoor Use,Title 46-Part 111,UL,United States Coast Guard Approved
• Material: Nylon
• Mounting: Locknut or Tapped Opening
• Catalog Number: SHC1036CR
• Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
• EU RoHS Indicator: Yes
• Item Type: Cord Connectors
• Material - Mounting Hardware: Locknut or Tapped Opening
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Performance: Environmental - Flammability - UL 94-V2 Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30 Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
• Series: Standard Duty Series
• Specifications: Cord Diameter Range Inches (mm) - .50"-.63" (12.7-15.9) Form Size - F3 Material - Gray Nylon NPT Hub Size - 3/4 Inch
• Temperature Rating: Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
• Type: Straight Male
• UPC: 783585208084
• Display Size: 3/4" NPT
• Height: 1.56 in
• Hub Size: 3/4"
• Length: 2.15 in
• Width: 1.56 in
• Conductor Range: 0.5-0.63 in (12.7- 15.9 mm)
• Number of Conductors: Single
• Industry Standard(s): UL Listed In Accordance With Standard 514B For Indoor/Outdoor Use United States Coast Guard Approved, Title 46-Part 111
• Nema Rating: NEMA Type 4, 4X, 12 and 13
• Standards - RoHS Compliance Status: CM
• Item dimensions L x W x H: 3 x 2 x 2 inches
• Cable Type: Jacketed UL Listed Cable
• Color Coding: Brown
• Size: 2.15 in x 1.56 in x 1.56 in
• TC Connection: NPT
• Trade Size: 3/4 Inch
• Brand: Hubbell Wiring Device-Kellems
• Sub Brand: Kellems Wire Management
• 12-Digit UPC: 783585208084
• Finish: Smooth
• GTiN: 00783585208084
• Product Series: Standard Duty
• Product UPC: 78358520808
• Weight: 0.05 lb
• Certifications: CSA Certified,Title 46-Part 111.,UL Listed In Accordance With Standard 514B,United States Coast Guard Approval
