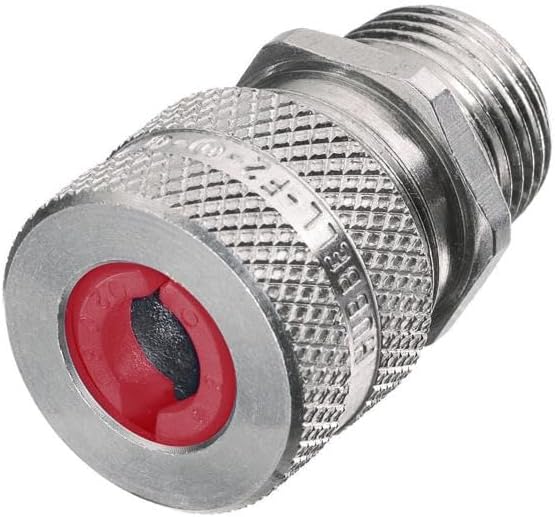

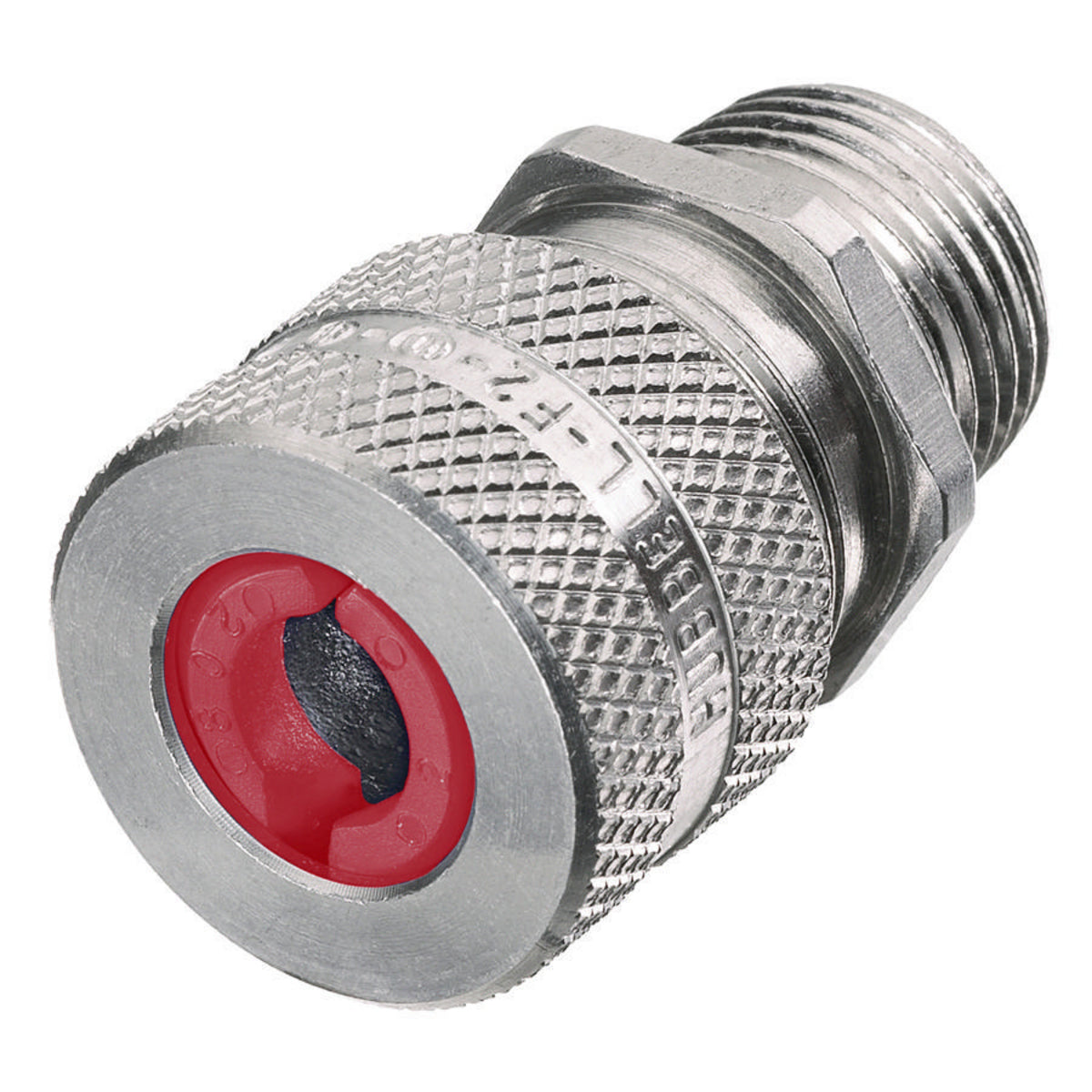

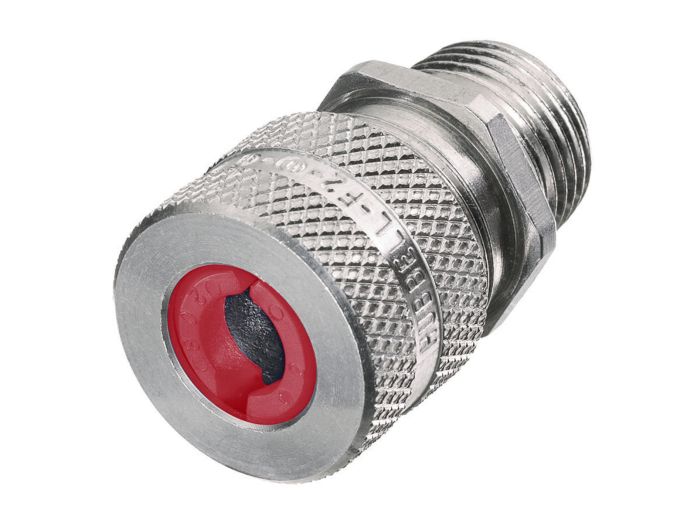

Hubbell SHC1021 Cord Connector Straight Male 1/2 Inch

Product Description

The Hubbell SHC1021 is a straight male cord connector. Constructed from machined aluminum, this connector is suitable for hazardous locations. It has cable openings of 0.19 to 0.25 inches and a 1/2 inch trade size. It is designed for jacketed cables and has an MNPT connection type.

• Suitable for use in hazardous locations
• Lightweight design
• Knurled finish for easy handling

Product Highlights

The aluminum cord connector provides durable performance and a clean attractive look without adding unwanted weight.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: SHC1021
• Country of Origin: CHN

Technical Specifications

• Batteries Required?: No
• Cable Openings: 0.19 to 0.25 in
• Cable Type: Jacketed
• Connection Type: MNPT
• Finish: Machined
• Manufacturer Part Number: SHC1021
• Material: Aluminum
• Number of Conductors: 1
• Series: SHC
• Standards/Approvals: CSA Certified|RoHS Compliant|UL 514B|United States Coast Guard Approved|Title 46-Part 111
• Temperature Rating: -30 to 225 deg F
• Trade Size: 1/2 Inch
• Type: Form 2 Standard Duty Straight
• Application: For wet location when used with a listed nylon washer between box and fitting, hazardous location Applications
• Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
• EU RoHS Indicator: Yes
• Item Type: Cord Connectors
• Material - Mounting Hardware: Locknut or Tapped Opening
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Performance: Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC Environmental - Operating Temperatures - -30 Cord Connector
