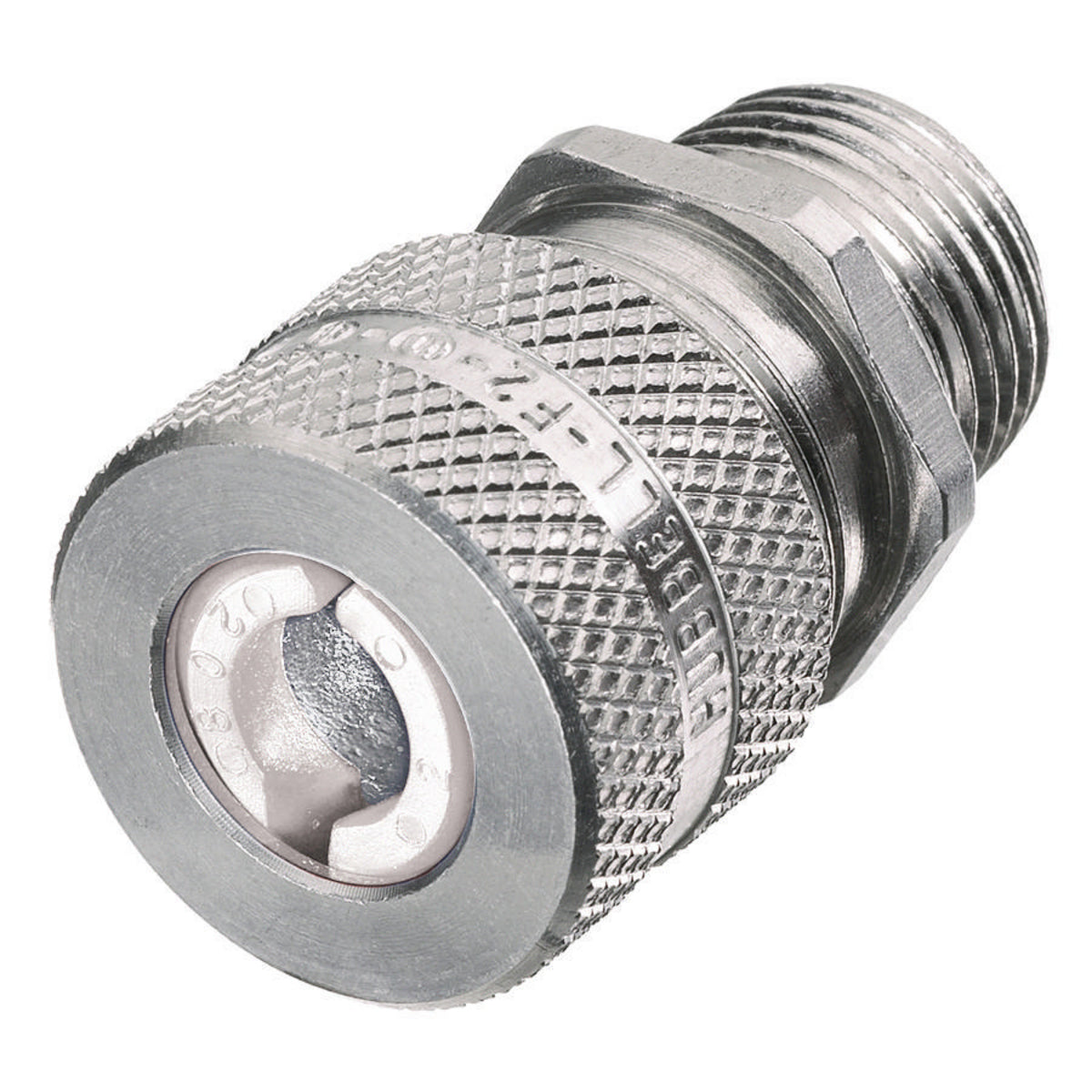

Hubbell SHC1017 HUB 1/2 .312-.375 CONN

Product Description

The Hubbell SHC1017 is a cord connector designed for straight connections in wiring applications. This connector uses one conductor with cable openings ranging from 0.31 to 0.38 inches. It features a machined aluminum body, suitable for harsh environments, and offers a robust, lightweight option for various electrical needs.

• Suitable for hazardous locations
• Compatible with wet locations when used with a nylon washer
• Constructed from lightweight aluminum

Product Highlights

This connector is ideal for use in wet and hazardous locations. It provides reliable electrical connections in environments where durability and safety are paramount.

Product Information

Standard Information

• Brand: Hubbell
• Manufacturer Part Number: SHC1017

Technical Specifications

• Application: For wet location when used with a listed nylon washer
• Cable Openings: 0.31 to 0.38 inches
• Cable Type: Jacketed
• Color: Metallic/White
• Connection Type: MNPT
• Dimensions: 0.88 inches Diameter x 1.453125 inches Length
• Finish: Machined
• Material: Aluminum
• Number of Conductors: 1
• Series: SHC
• Standards/Approvals: CSA Certified, RoHS Compliant, UL 514B
• Temperature Rating: -30 to 225 degrees Fahrenheit
• Trade Size: 1/2 inches
• Type: Form 1 Standard Duty Straight
