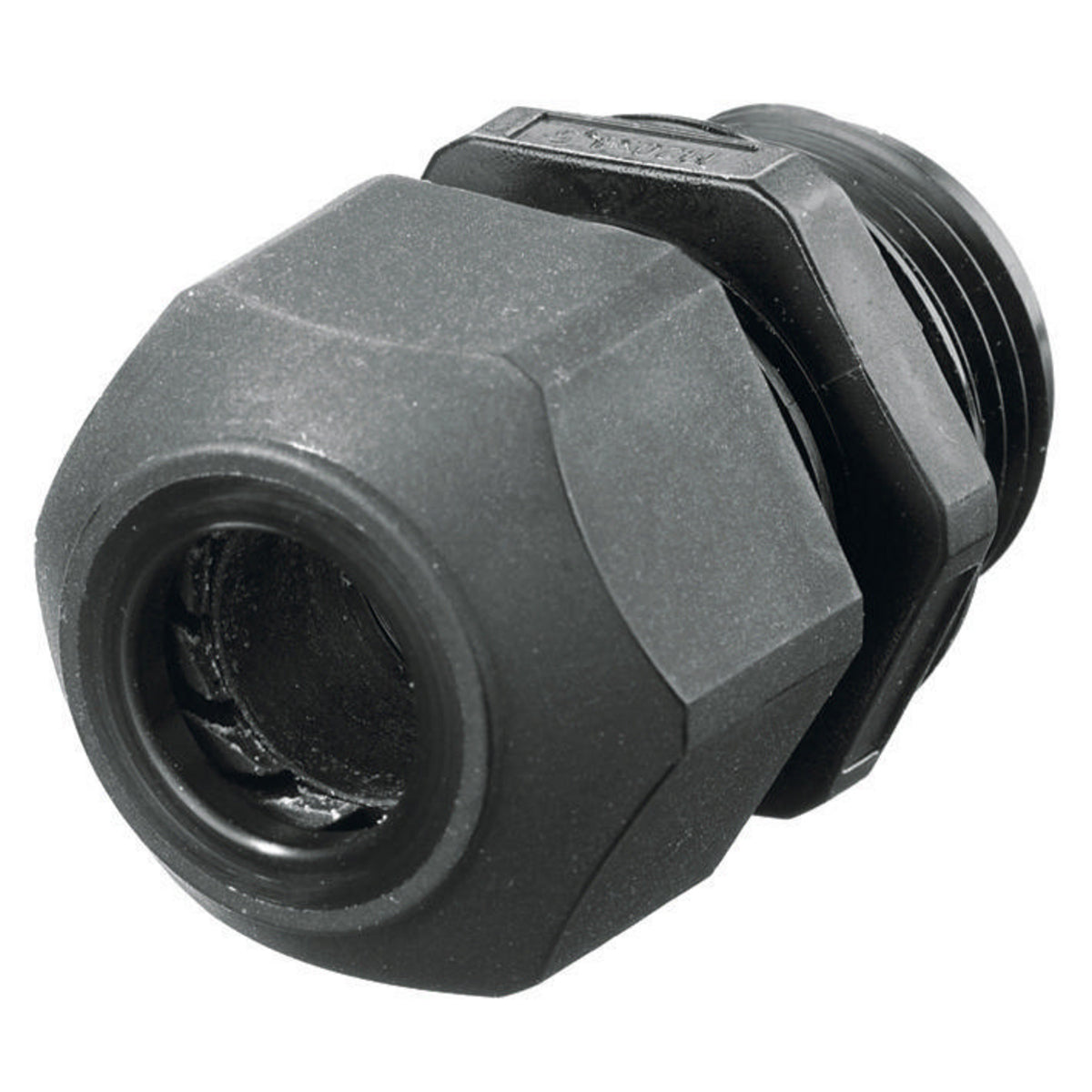

Hubbell SEC75BA Cord Connector 3/4 inches NPT

Product Description

The HUBBELL SEC75BA cord connector is a European Style Low Profile NPT Standard Duty Straight connector. It has a 3/4 inch trade size and accommodates 1 conductor with cable openings from 0.45 to 0.71 inches. Constructed from nylon with a smooth black finish, it is suitable for wet locations when used with a listed nylon washer.

• Suitable for use in wet locations when used with a listed nylon washer between box and fitting
• Connector body is a 1-piece design with machined threads
• Low profile

Product Highlights

The HUBBELL SEC75BA cord connector is ideal for jacketed cables and offers a reliable connection in various environments.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: SEC75BA
• Country of Origin: USA

Technical Specifications

• Application: For wet location when used with a listed nylon washer between box and fitting Applications
• Cable Openings: 0.45 to 0.71 in
• Cable Type: Jacketed
• Color: Black
• Connection Type: MNPT
• Finish: Smooth
• Manufacturer Part Number: SEC75BA
• Material: Nylon
• Number of Conductors: 1
• Standards/Approvals: RoHS Compliant|UL 514B|UL 94V-2 Flammability Rating
• Temperature Rating: -22 to 225 deg F
• Trade Size: 3/4 in
• Type: European Style Low Profile NPT Standard Duty Straight
• Enclosure Rating: IP66
• Hub Size: 3/4"
• Conductor Range: 0.45-0.71 in (11.4-18.0 mm)
• Industry Standard(s): UL Listed
• Nema Rating: IP66
• Standards - RoHS Compliance Status: CM
• Cable Diameter Min: 11.4mm
• Cable Diameter Max: 18mm
• Cable Gland Material: Nylon 6.6 (Polyamide 6.6)
• Gland Colour: Black
• IP / NEMA Rating: IP66
• Product Range: Low Profile NPT Series
• Thread Size: 3/4" NPT
• OD Min: 0.45 in.
• OD Max: 0.71 in.
