Product Description

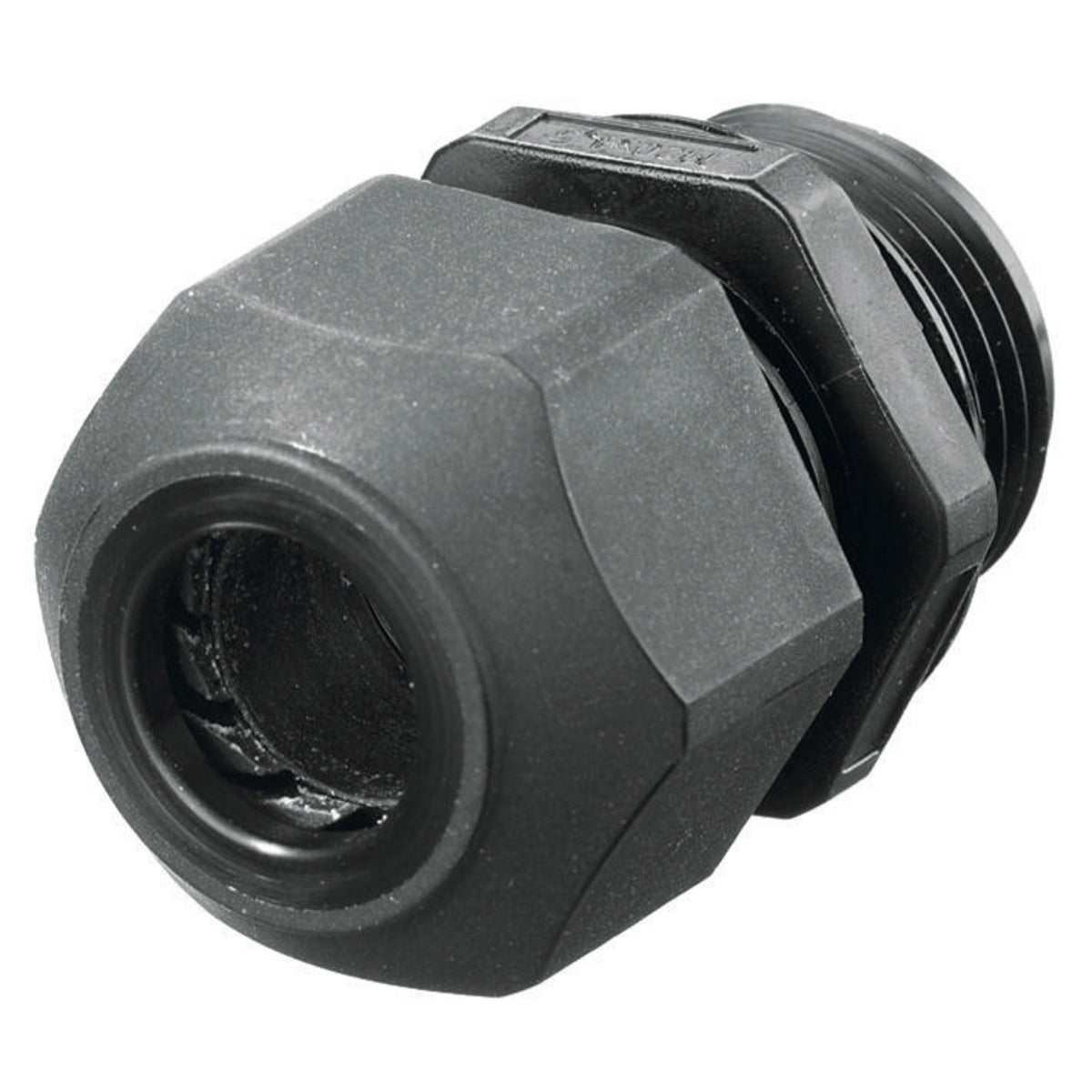

The HUBBELL SEC50BA is a European style low profile non-metallic standard straight cord connector. It is designed for use in wet locations when used with a listed nylon washer between box and fitting applications. The connector body features a one-piece design with machined threads.
- Connector body is a one piece design with machined threads
- Nylon body, Buna N gland, halogen and silicon free
- IP66 ingress protection
Product Highlights
The SEC series cord connector has a nylon body, buna N gland, and IP66 ingress protection.
Product Information
Standard Information
-
Brand: HUBBELL
-
Manufacturer Part Number: SEC50BA
-
Country of Origin: USA
Technical Specifications
-
Cable Openings: 0.17 to 0.45 in
-
Connection Type: MNPT
-
Finish: Smooth
-
Manufacturer Part Number: SEC50BA
-
Material: Nylon
-
Number of Conductors: 1
-
Series: SEC
-
Standards/Approvals: CSA Certified|RoHS Compliant|UL 514B|UL File No. E41567|CSA File No. LR27378C|UL94 V-2 Flammability Rating
-
Temperature Rating: -22 to 225 deg F
-
Trade Size: 1/2 in
-
Type: European Style Low Profile Non-Metallic Standard Straight
-
Application: For wet location when used with a listed nylon washer between box and fitting Applications
-
Hub Size: 1/2 in
-
IP Rating: IP66
-
TC Connection: NPT
-
Cable Type: Jacketed UL Listed Cable
-
Standard: UL
-
Environmental Conditions: Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
-
Height: 1.1 Inch
-
Length: 1.6 Inch
-
Width: 0.900 in
-
Certifications: CSA C22.2 No. 18,UL 514B
