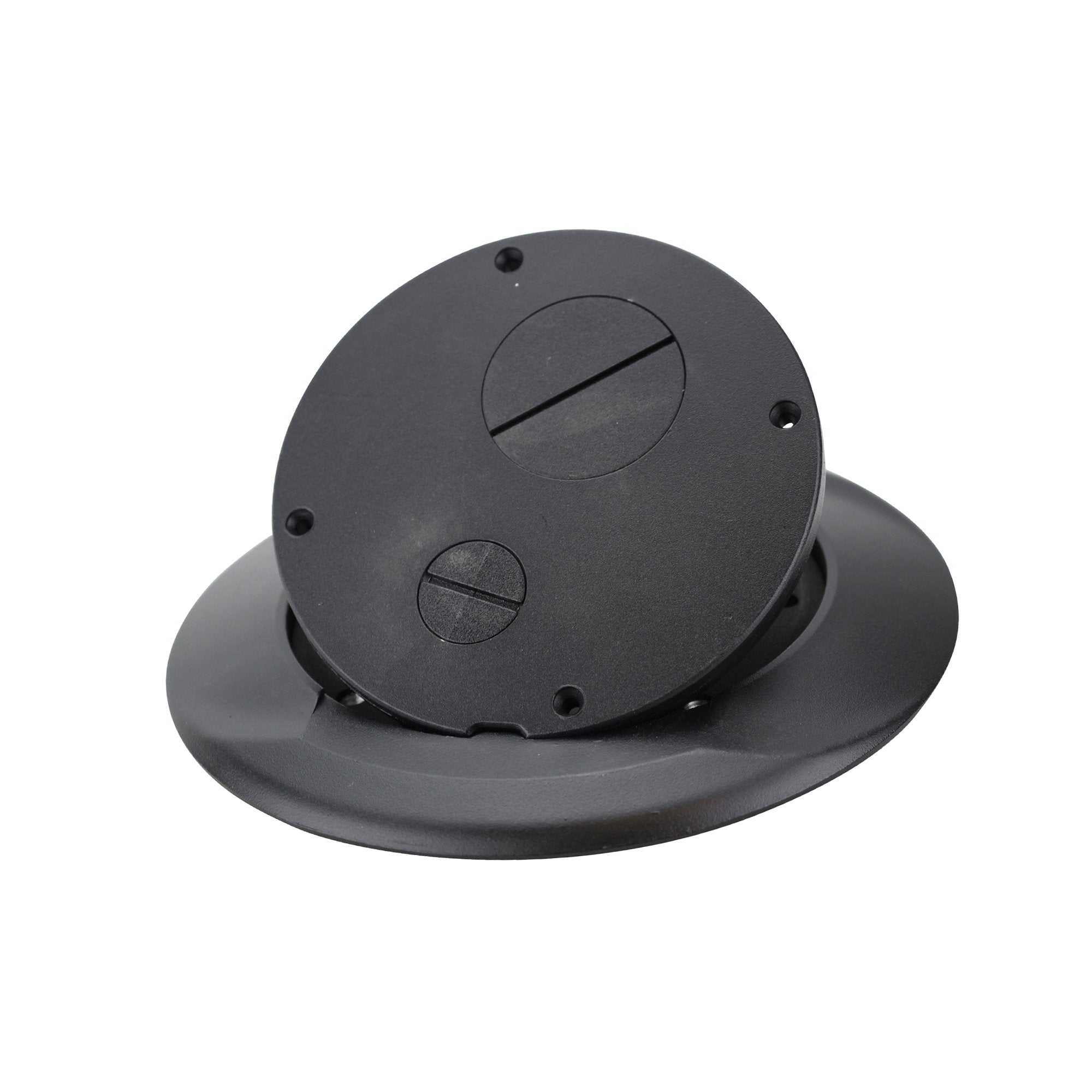

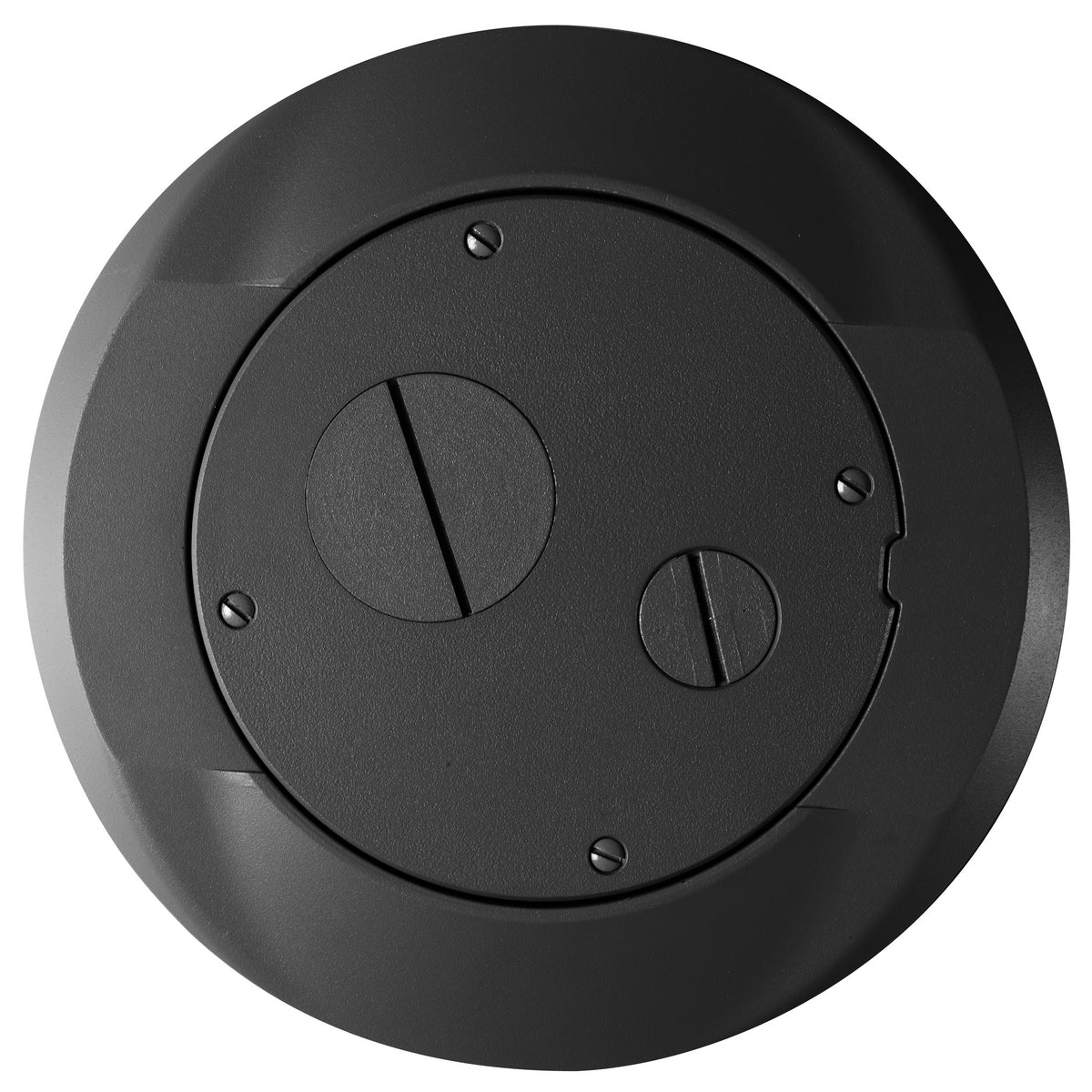

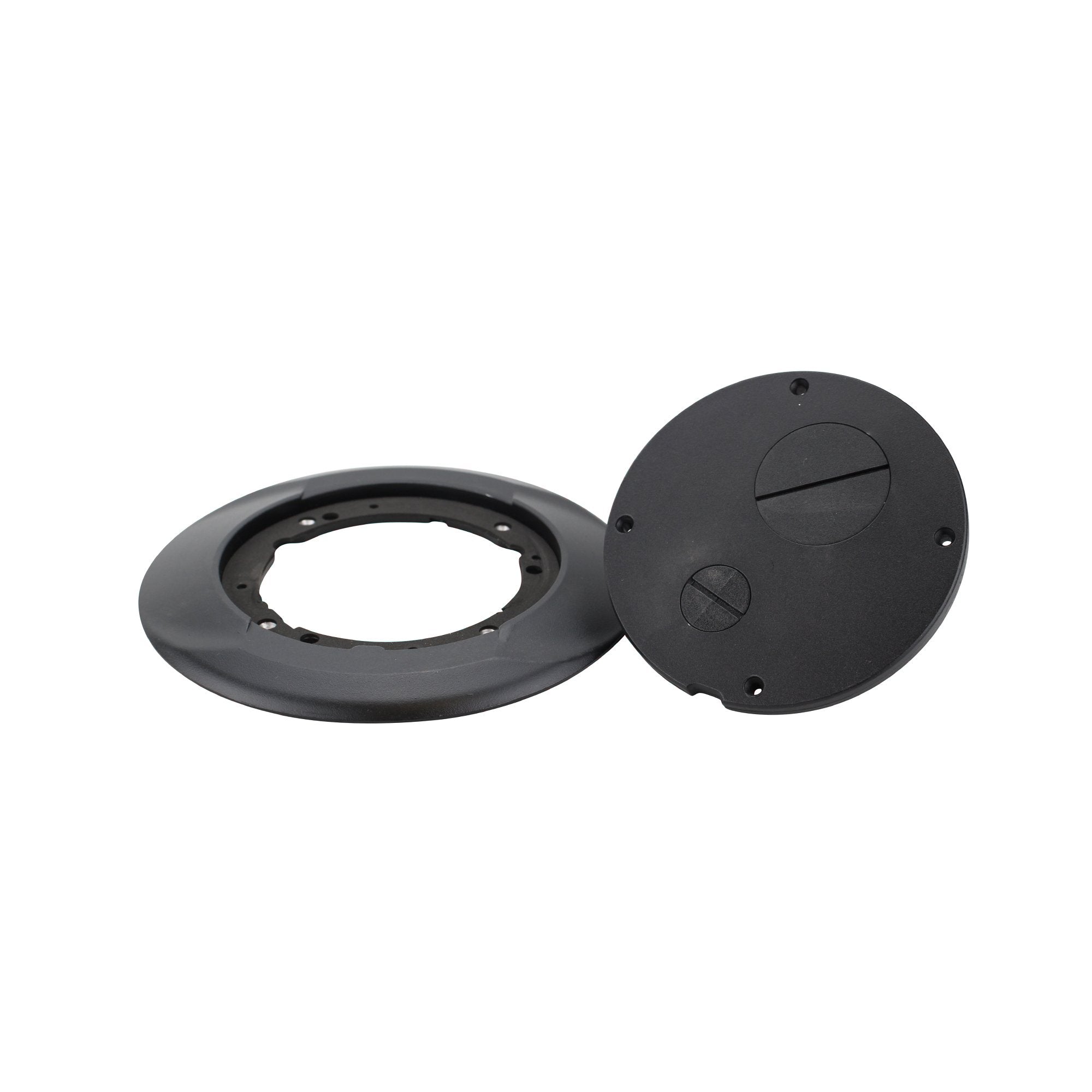

Hubbell S1SPFFBL System One carpet furniture feed cover/flange sub-plate

Product Description

The Hubbell S1SPFFBL is a System One carpet furniture feed cover/flange sub-plate. It can be used in System One floor boxes and fire-rated poke-throughs, accommodating various power and data configurations. Constructed from cast aluminum with a durable powder coat finish. Includes carpet flange and complies with UL514A.

• System One carpet furniture feed cover/flange sub-plate
• (1) 3/4 inches and (1) 1-1/2 inches NPT access holes for power and/or dotcom applications
• Universal cover not required

Product Highlights

The Hubbell S1SPFFBL sub-plate is ideal for delivering power and data to furniture in carpeted areas.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: S1SPFFBL
• Country of Origin: China

Technical Specifications

• Material: Cast aluminum
• Finish: Durable powder coat
• Access Holes: (1) 3/4 inches and (1) 1-1/2 inches NPT
• Compatibility: System One floor boxes and fire-rated poke-through
• Certifications: UL listed and CSA certified
• Compliance: Complies with UL514A
• Application: SystemOne Floor Flush Fire Rated Poke Though, Concrete Floor and Wall Boxes
• Color: Black
• Includes: Carpet Flange
• Length: 2.41 in
• Manufacturer Part Number: S1SPFFBL
• Mounting Type: Surface
• Number of Outlets: 2
• Standards/Approvals: cULus Listed|UL 514A/C
• Type: Fire-Rated
• Cable Entry: Threaded Hubs
• Standard: CULus,Meets ADA Standards,UL 514A
• Style: Cover Flanges
• Brand: Hubbell Wiring Device-Kellems
• Sub Brand: SystemOne
• Height: 2.41 Inch
• Width: 8 in
• Mounting Style: Floor
• Suitable For: Interior
• Model: Hubbell System One Carpet Furniture Feed Cover
• Box Shape: Round
• Room: Any Room
• Use With: SystemOne Floor Box/Poke-Through
