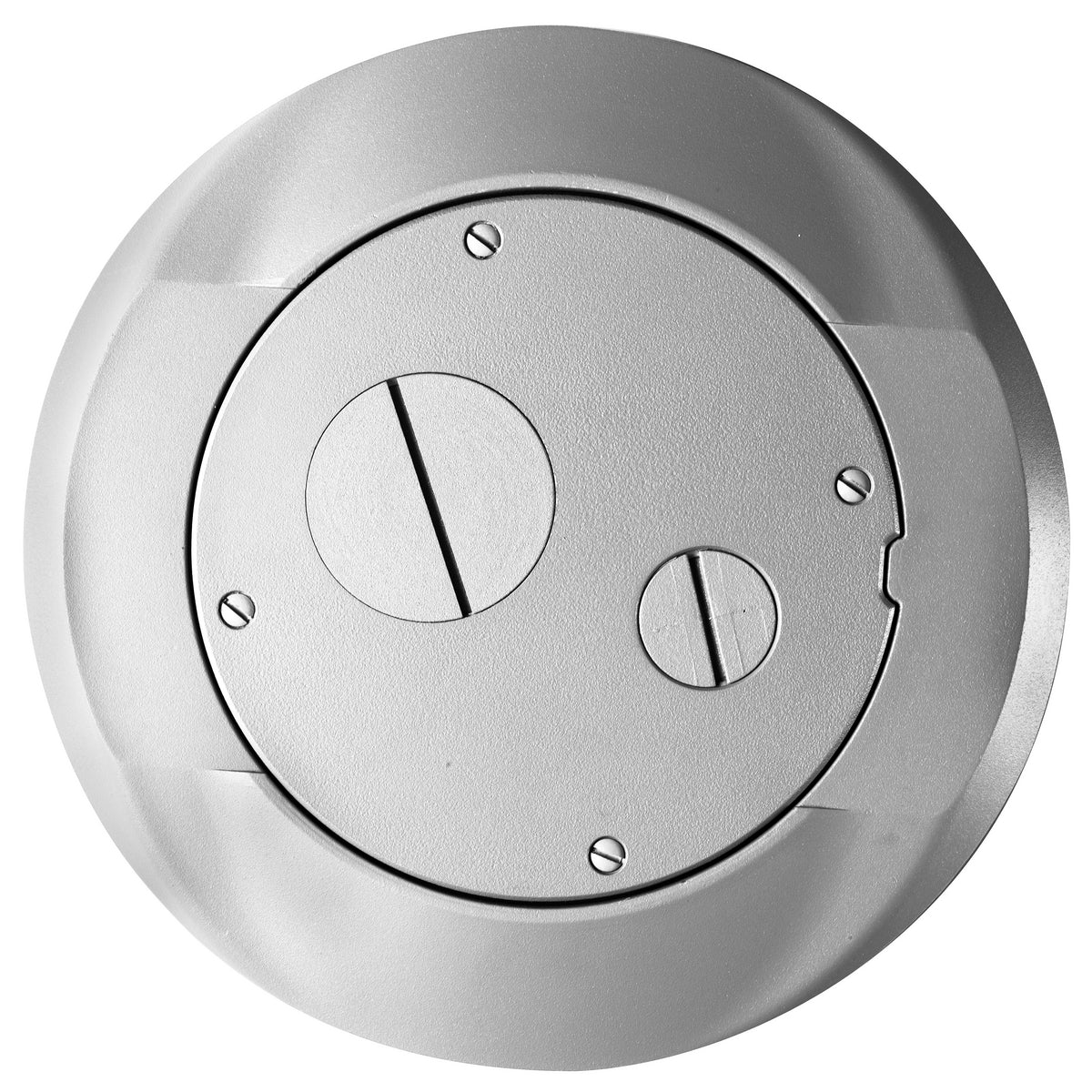

Hubbell S1SPFFAL Subplate, Furn.Feed, Sys 1, 8 in

Product Description

The HUBBELL S1SPFFAL subplate is designed for carpet furniture feed applications. It features a fire-rated design with 2 outlets and is constructed from cast aluminum with a powder-coated finish. It has (1) 3/4 in and (1) 1-1/2 in NPT access holes for power and/or datacom applications. Universal cover not required.

• Durable construction
• Large capacity and multi-service furniture feed applications
• Open system sub plates permit maximum data flexibility

Product Highlights

The HUBBELL S1SPFFAL subplate provides a durable and flexible solution for power and data connectivity in carpeted furniture feed applications.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: S1SPFFAL
• Country of Origin: China

Technical Specifications

• Application: Carpet Furniture Feed Cover and Flange Applications
• Color: Aluminum
• Finish: Powder Coated/Aluminum;Powder Coated
• Includes: Carpet Flange;Mounting Hardware
• Length: 2.41 in
• Manufacturer Part Number: S1SPFFAL
• Material: Cast Aluminum;Composite
• Mounting Type: Surface;Flush
• Number of Outlets: 2
• Standards/Approvals: UL 514A|cULus Listed;cULus Listed|UL 514A
• Type: Fire-Rated;Fabricated Standard
• Width: 2.41 in
• Country Of Origin: CHN
• Application - For Use On: Carpet
• Catalog Number: S1SPFFAL
• Construction: Cast Aluminum
• Cover Shape: Round
• Cover Type: Furniture Feed
• Finish Type: Aluminum
• Item Type: 4" Fire-Rated Poke-Through Component
• Mounting Method: To Fitting in Floor
• Number Of Outlets: (1) 3/4" & (1) 1 frac12" Threaded Hub Multi-Service
• Series: Flush - S1 Series
• Style: Covers - Furniture Feed
• Type of Use: Carpet, Furniture Feed
• Typical Application: Carpet, Furniture Feed
• Industry Standard(s): cULus UL514
• Service: Single; Multi
• ECCN: EAR99
• Use With: SystemOne Floor Box/Poke-Through
• Box Shape: Round
• OEM: Hubbell Incorporated, Wiring Device-Kellums
• OEM #: S1SPFFAL
• For Use With: Hubbell SystemOne Fire Rated Poke Throughs 2EMT6, 2EMT7, and 2EMT8
• Number of Gangs: 1
• Opening Size: 1-1/2 in
• Shape: Round
• Standards: UL/CSA
• Cable Entry: Threaded Hubs
• Standard: CULus,Meets ADA Standards,UL 514A
• Brand: Hubbell Wiring Device-Kellems
• Sub Brand: SystemOne
• 12-Digit UPC: 783585371481
• Product Series: Flush - S1 Series
• Product UPC: 78358537148
• Used With: Flush Fire Rated Poke Through
• Height: 2.41 Inch
