Hubbell S1R6PTWZBLK S1R frpt 6, 2x 20a, 2 style line S1R6PTWZBLK

Product Description

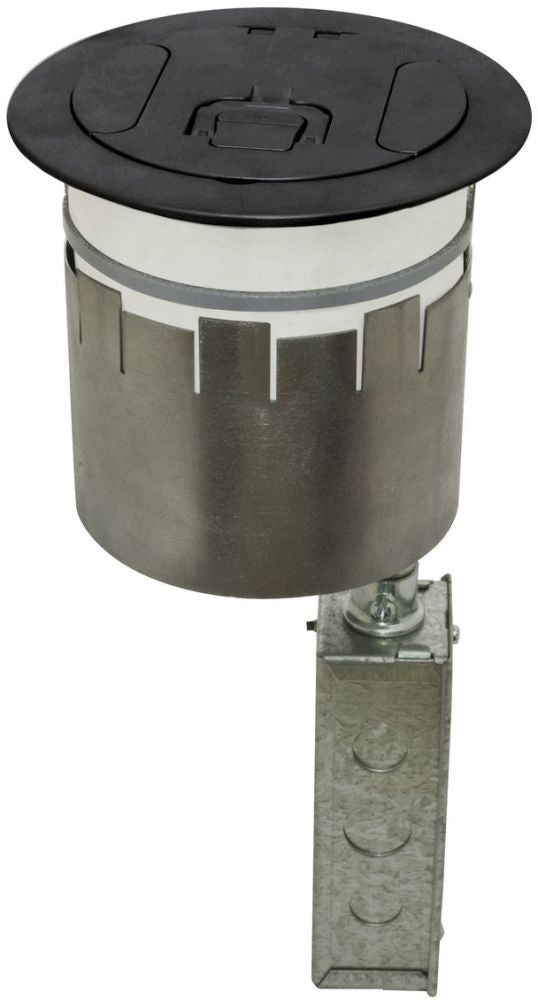

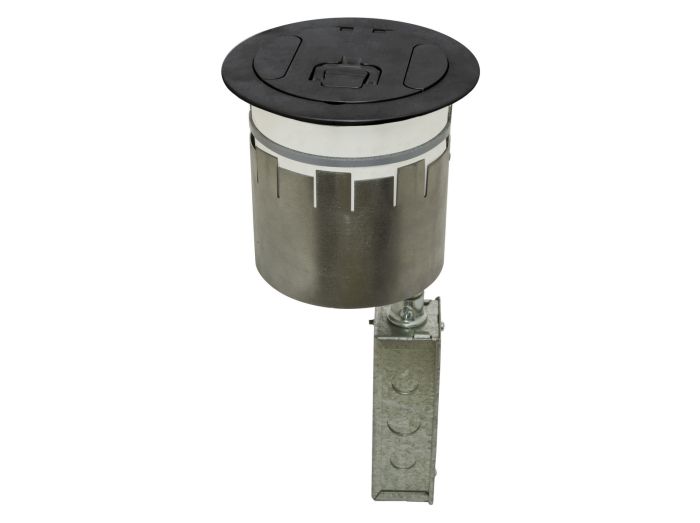

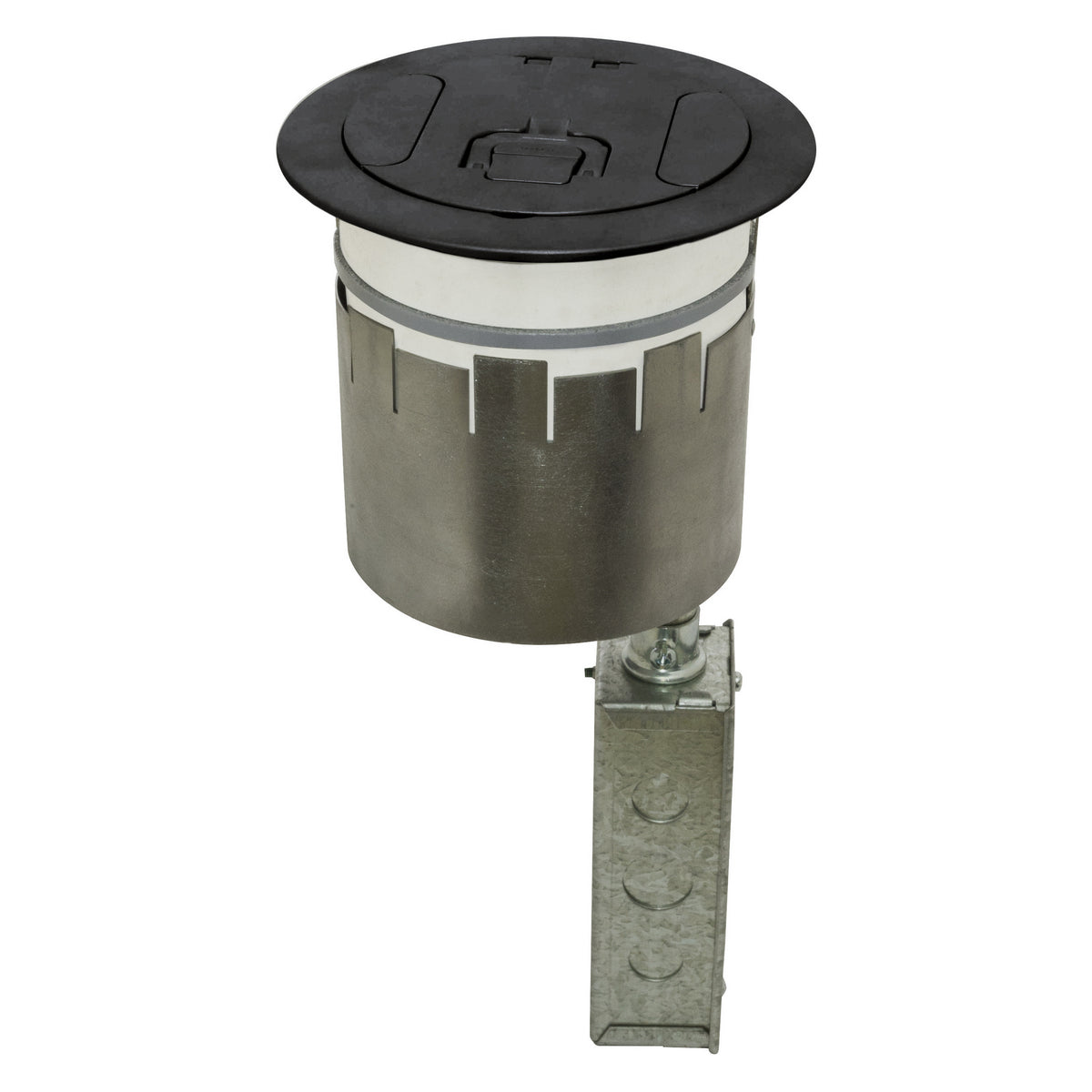

The Hubbell S1R6PTWZBLK is a fire-rated poke-through, recessed 6" series kit. It includes (1) S1R6PTFIT, (1) S1R6SPW, (1) S1R6SPZ, and (1) S1R6CVRBLK. This flush split recessed standard-sized unit fits a 6-inch hole with a 1/2 to 1-inch knockout and has a 1000 lb capacity. Maintains concrete floor fire rating up to two hours.

• Step down installation
• Junction box standard
• Maintains concrete floor fire rating up to two hours

Product Highlights

Fire-rated poke-through kit for in-floor delivery systems and concrete floors. Includes pre-wired receptacles and a die-cast aluminum cover with powder-coated finish.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: S1R6PTWZBLK
• Country of Origin: USA

Technical Specifications

• Color: Black
• Cover Material: Die-Cast Aluminum
• Finish: Powder Coated
• Hole Size: 6 in
• Includes: (1) S1R6PTFIT 6 in Floor Fitting, (2) S1R6SPW Decorator Opening Sub-Plate, (2) S1R6SPZ 20 A 125 VAC Pre-Wired Receptacle with 18 in Wire Leads, (1) 6 in Flange and S1R6CVRxx Universal Cover Assembly
• Knockout Size: 1/2 to 1 in
• Manufacturer Part Number: S1R6PTWZBLK
• Material: Assorted Materials
• Standards/Approvals: ADA Compliant|UL 514A|cULus/ULC Listed
• Suitable For Use With: In-Floor Delivery Systems, Concrete Floors and Data AV Kits
• Type: Flush Split Recessed Standard Sized
• Cored Hole Diameter: 6 Inch
• Fire Rated: Yes
• Cover Type: S1R6CVR
• Approval: UL 514A, UL (Canada and US), ULC
• Application: 6" Fire-Rated Poke-Through Series
• Application - For Use On: Concrete
• Number Of Outlets: (1) 60% Left Side Sub Plate- (2) Style Line Decorator Openings and (1) 40% Right Side Sub Plate- (2) 20A Pre-Wired Receptacles, 1 Circuit, 18" Leads
• Size: Standard Sized Product
• Style: FRPT - Complete Kits
• Sub Brand: SystemOne Recessed
• Cable Entry: Through Cover
• Industry Standard(s): cULus Listed Meets ADA Standards UL 514A Listed
• Carton Quantity: 1
• Construction: Fabricated
• Height: 10.8 Inch
• Length: 9.4 Inch
• Width: 9.3 in
• Family Series: Hubbell Plugs & Receptacles
• Cover Composition: Metallic
• Junction Box: No
• Approvals: cULus
