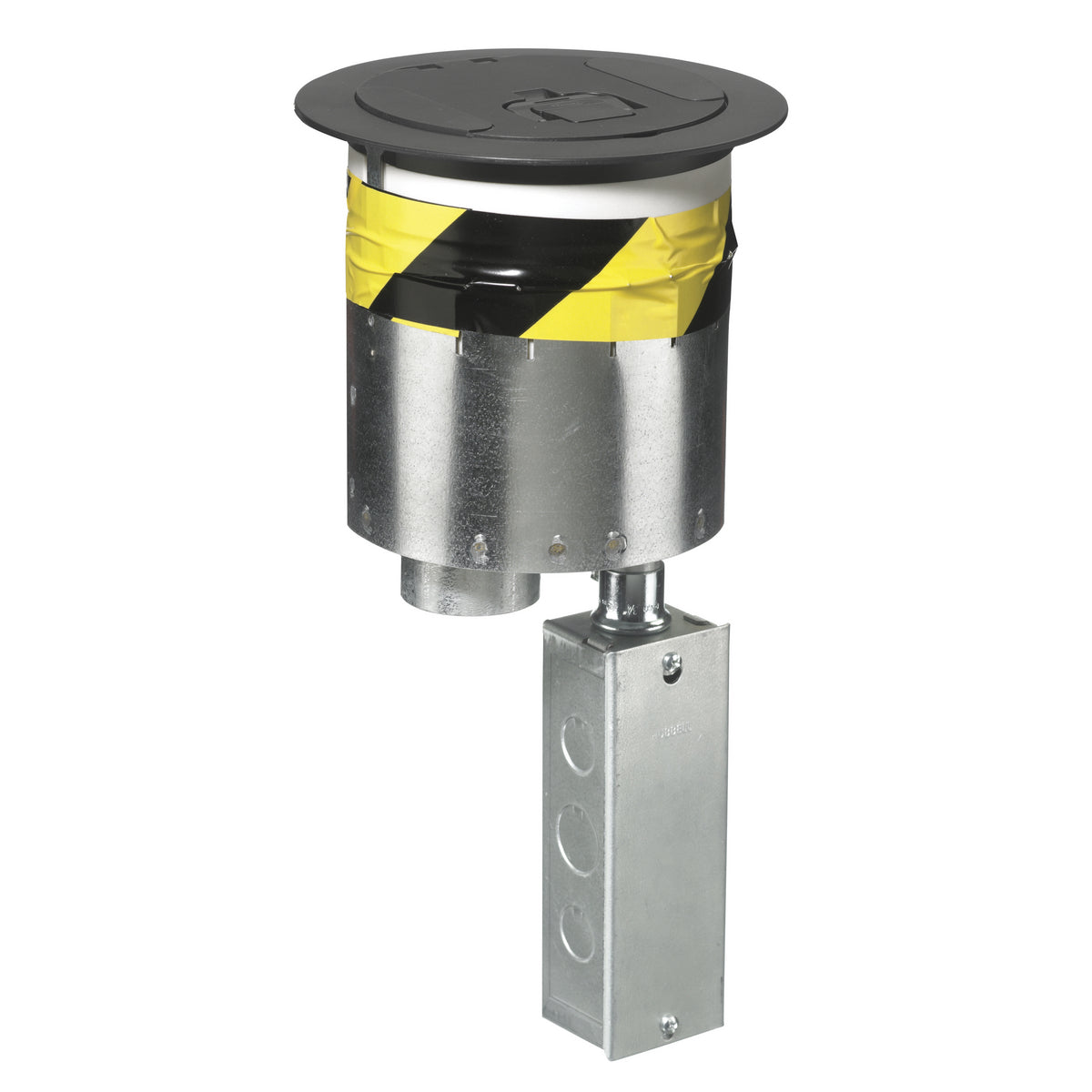

Hubbell S1R6PTDEHBLK Wiring Device-Kellems Flush Split Recessed Standard Sized Poke-Through Assembled Unit

Product Description

The Hubbell S1R6PTDEHBLK is a poke-through assembled unit designed for flush split recessed installations. It features a six inch hole with a seven and one-half inch diameter cover. With a weight capacity of one thousand pounds, this fire-rated device is suitable for use in commercial office spaces, retail environments, and mass transit hubs.

• 1000 lb capacity
• Flush split recessed design
• For in-floor delivery systems

Product Highlights

This device is ideal for integrating power and data connections in concrete floors.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: S1R6PTDEHBLK

Technical Specifications

• Type: Flush Split Recessed Standard Sized
• Hole Size: 6 inches
• Cover Size: 7.5 inches diameter
• Material: Assorted materials, composite
• Finish: Powder coated
• Application: Commercial office space, retail, education, mass transit hubs
• Standards/Approvals: ADA Compliant, UL 514A, cULus/ULC Listed
• Includes: (1) S1R6PTFIT 6 inch floor fitting, (4) S1R6SPD iSTATION unit openings, (1) decorator opening, (2) S1R6SPE keystone openings, (4) S1R6SPH 20A receptacles, (1) 6 inch flange, S1R6CVRxx universal cover assembly
