Hubbell RSD415W Resi Rocker SW 4W 15A 120/277V

Product Description

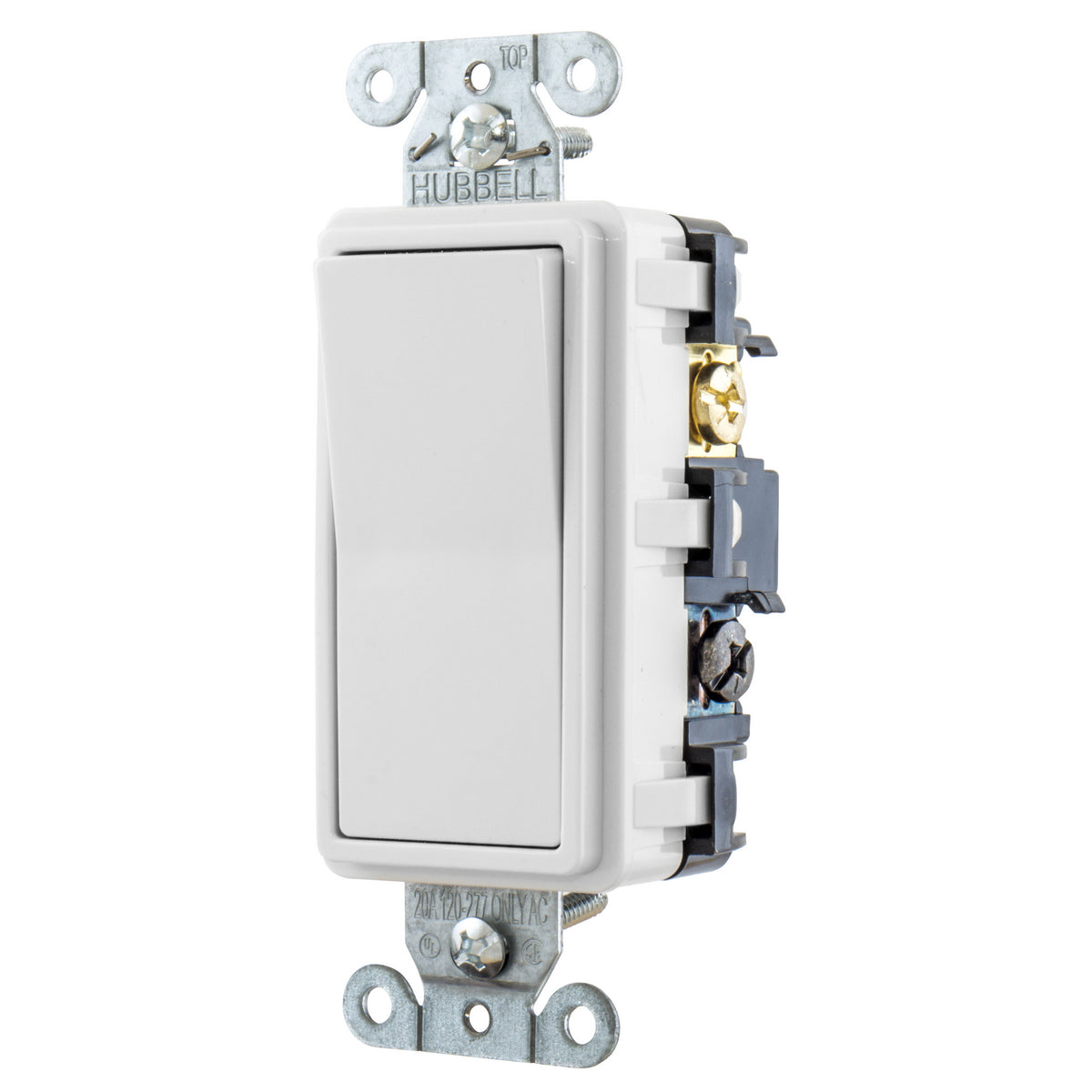

The Hubbell RSD415W is a 4-way residential grade rocker switch rated for 15 Amps at 120/277 Volts. It features a positive snap action and a rocker actuator. This switch is designed for general purpose AC use in residential applications. It has a threaded mounting and supports back or side wire terminal connections, allowing for versatile installation options.

• Operates efficiently at 120/277V
• Has a lifespan of 30000 operating cycles
• Environmentally rated for temperatures from -20 to 60 degrees Celsius

Product Highlights

The Hubbell RSD415W is suitable for various indoor applications and provides reliable performance.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: RSD415W

Technical Specifications

• Actuator: Rocker
• Amperage Rating: 15 A
• Application: General Purpose AC, Indoor and Residential Applications
• Color: White
• Contact Configuration: 2 Position
• Dimensions: 1.73 in W x 1.68 in D x 4.28 in H
• Environmental Conditions: -20 to 60 deg C
• Material: Composite
• Mounting: Threaded
• Number of Poles: 4
• Operating Cycles: 30000 cycles
• Power Rating: 4155 W
• Standards/Approvals: RoHS Compliant, CSA Certified, NEMA WD1, UL 20
• Terminal Type: Back/Side Wire
• Type: 4-Way Residential Grade Standard
• Voltage Rating: 120/277 V
