Product Description

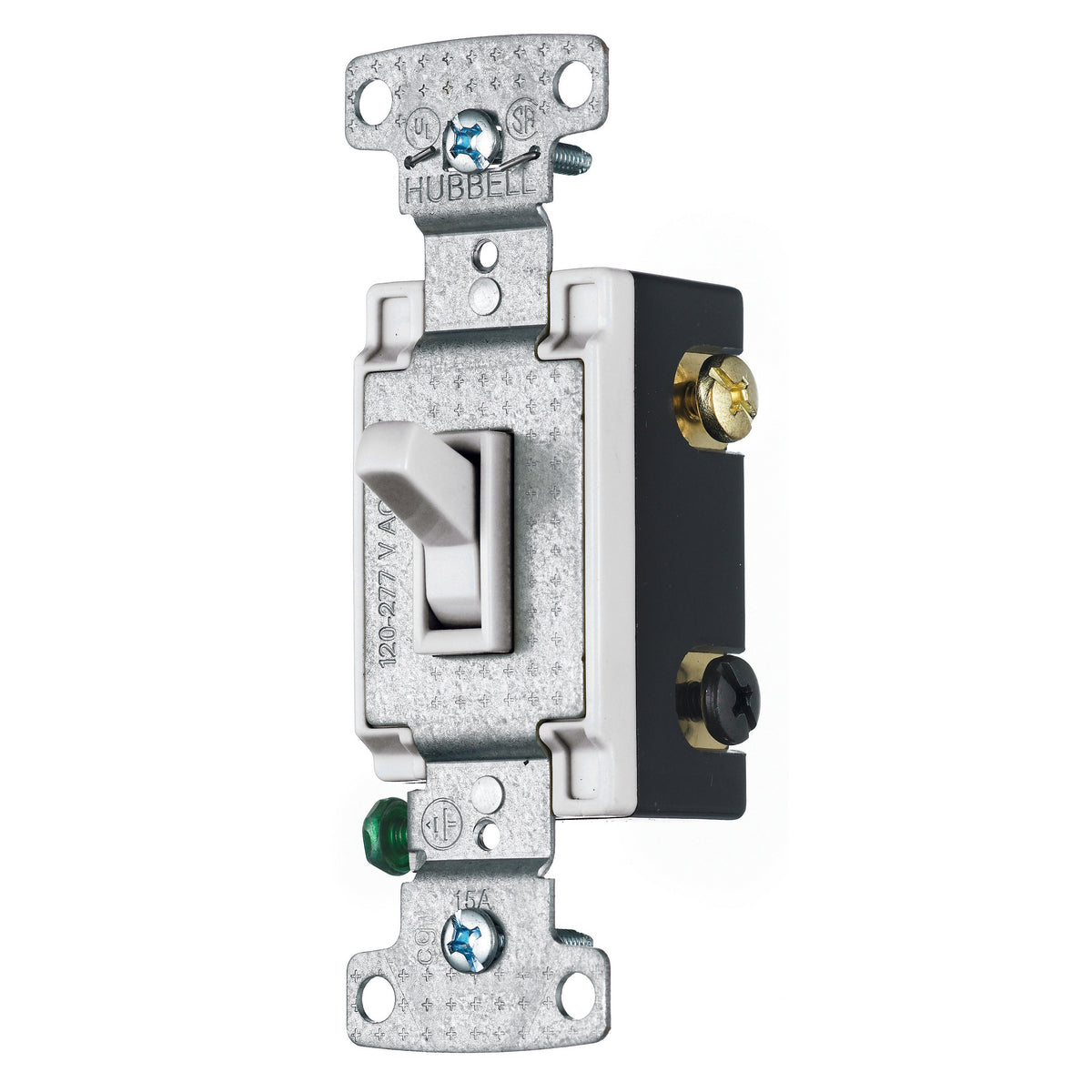

The Hubbell RS415W is a wiring device designed for general purpose use. This 4-way toggle switch supports a voltage of 120 V and a current rating of 15 A. It offers a self-grounding feature, making it suitable for residential applications. The switch includes a toggle actuator, threaded mounting, and side wire terminal, providing versatility in installation. Ideal for controlling home lighting and appliances, this switch operates over 10,000 cycles.
- Self-grounding design
- Threaded mounting for secure installation
- Compatible with residential applications
Product Highlights
This switch features a durable thermoplastic construction with a positive snap action mechanism, suitable for indoor dry environments.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 88377810134
Technical Specifications
-
Actuator: Toggle
-
Amperage Rating: 15 A
-
Application: Residential Applications and Indoor Dry Environments
-
Color: White
-
Contact Configuration: 2-Position
-
Dimensions: 4.20 in L x 1.30 in W
-
Environmental Conditions: -20 to 60 deg C
-
Manufacturer Part Number: RS415W
-
Material: Thermoplastic
-
Mounting: Threaded
-
Number of Poles: 4
-
Operating Cycles: 10000 cycles
-
Power Rating: 1800 W
-
Series: RS Series
-
Standards/Approvals: UL 20 File No. E3896 | CSA Certified | NEMA WD1
-
Terminal Type: Side Wire
-
Type: 4-Way Compact General Purpose Self-Grounding Standard
-
Voltage Rating: 120 V
