Product Description

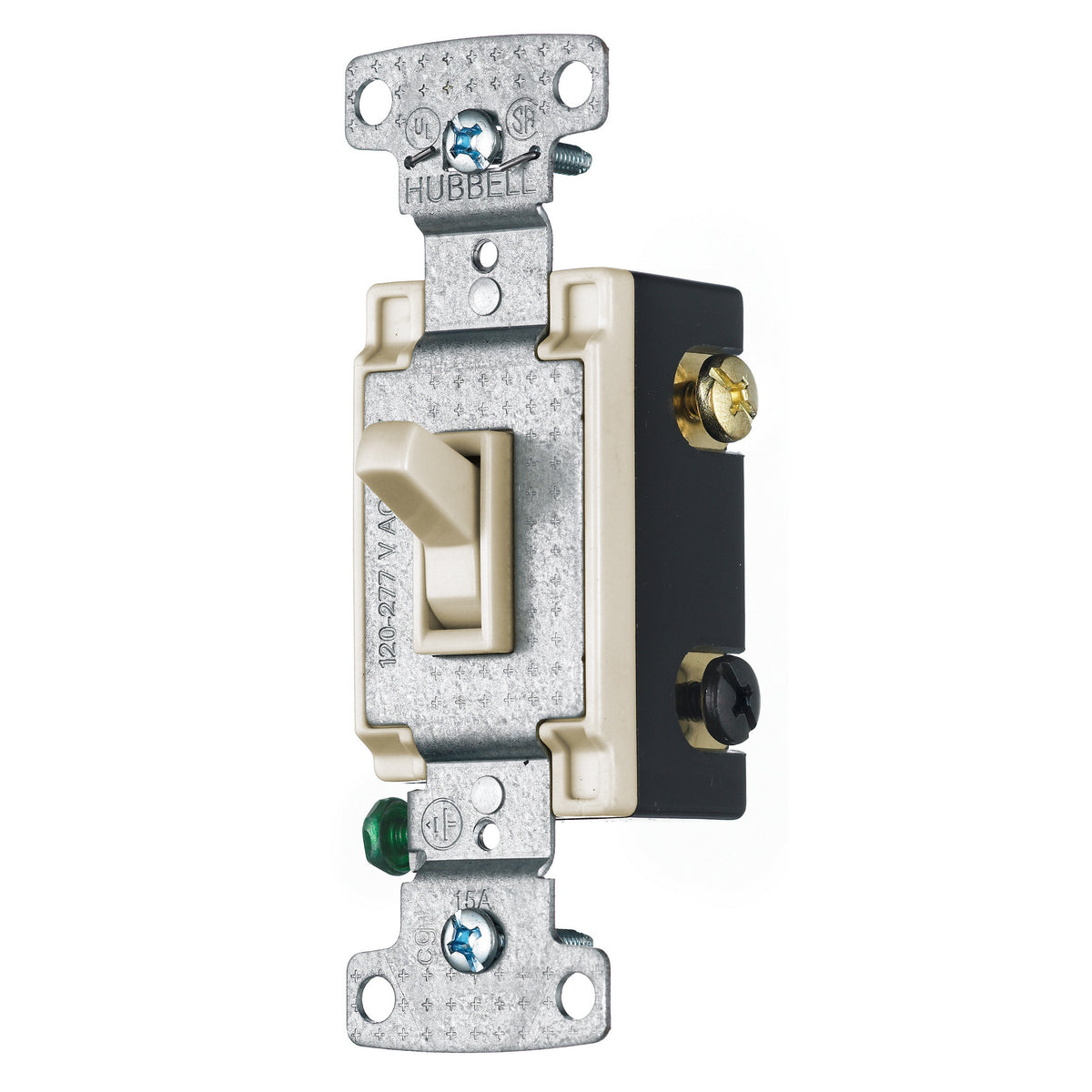

The Hubbell RS415LA is a wiring device featuring a toggle switch designed for general purpose use. This product operates on one hundred twenty volts, supports a maximum rating of fifteen amps, and can handle up to eighteen hundred watts of power. It is suitable for residential applications and can be installed in indoor dry environments. The two-position contact configuration features four poles and a toggle actuator with a threaded mounting system. The design incorporates side wire terminals for easy installation.
- Compact design with self-grounding feature
- High operating cycle durability of ten thousand cycles
- Built with thermoplastic for enhanced safety
Product Highlights
This toggle switch provides on/off control for home lighting and appliances. Its design allows for quick and reliable installation, making it an essential component in any electrical setup.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: RS415LA
Technical Specifications
-
Actuator: Toggle
-
Amperage Rating: 15 A
-
Application: Residential Applications and Indoor Dry Environments
-
Color: Light Almond
-
Contact Configuration: 2-Position
-
Environmental Conditions: -20 to 60 degrees C
-
Material: Thermoplastic
-
Mounting: Threaded
-
Number of Poles: 4
-
Operating Cycles: 10000 cycles
-
Power Rating: 1800 W
-
Standards/Approvals: UL 20 File No. E3896 | CSA Certified
-
Terminal Type: Side Wire
-
Type: 4-Way Compact General Purpose Self-Grounding Standard
-
Voltage Rating: 120 V
