Product Description

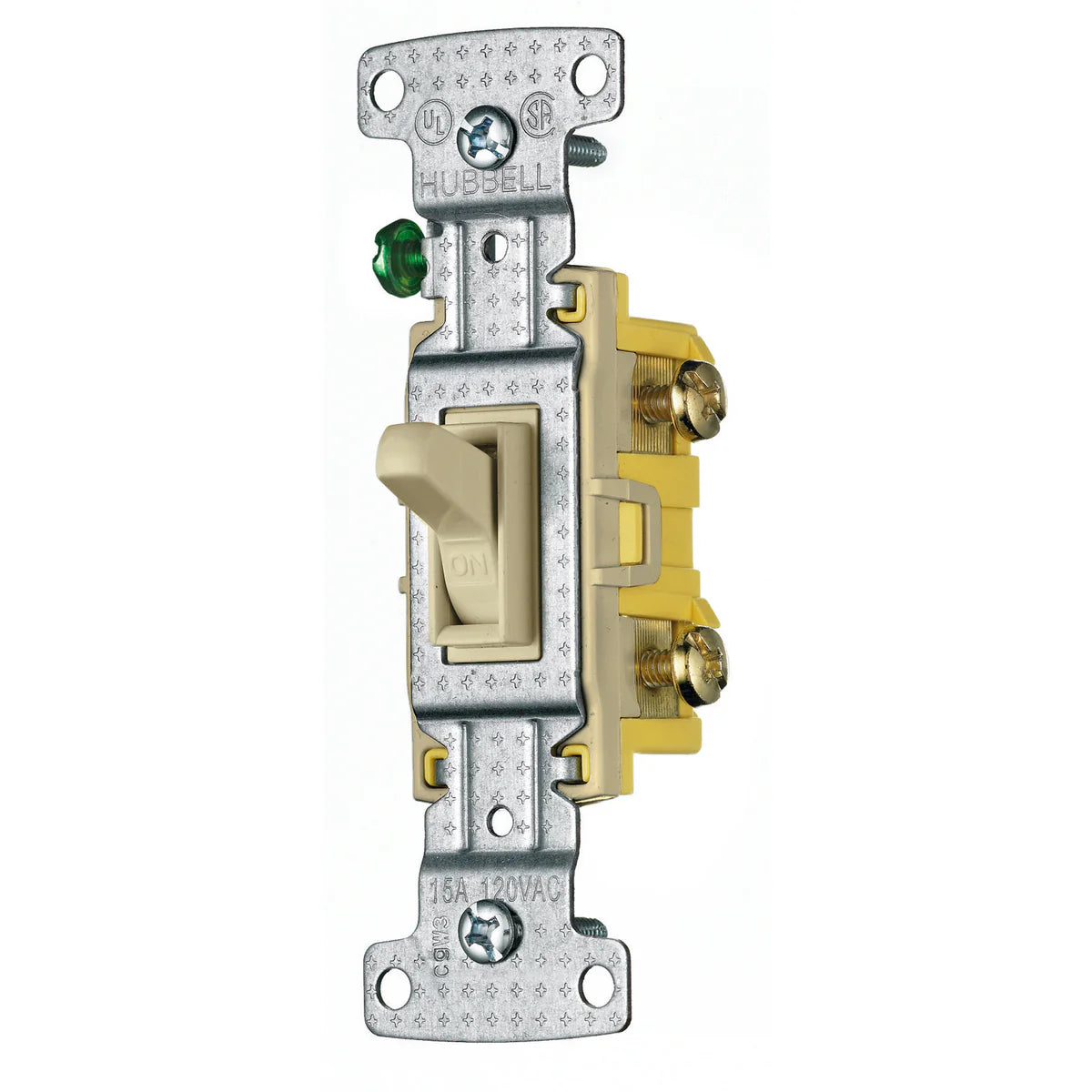

The Hubbell RS115I is a toggle switch designed for various residential applications. This switch features a compact general purpose grounding standard configuration. It operates at one hundred twenty volts and has a rating of fifteen amps. The power rating is one thousand eight hundred watts. It includes a two-position contact configuration and threaded mounting for simple installation.
- Operating range from negative twenty to sixty degrees Celsius.
- Ten thousand operating cycles for durability.
- Thermoplastic material ensures reliable performance.
Product Highlights
This toggle switch provides essential ON/OFF control for home lighting and appliances.
Product Information
Standard Information
Technical Specifications
-
Actuator: Toggle
-
Amperage Rating: 15 A
-
Application: Residential Applications and Indoor Dry Environments
-
Color: Ivory
-
Contact Configuration: 2-Position
-
Dimensions: 4.19 in L x 1.30 in W
-
Environmental Conditions: -20 to 60 deg C
-
Material: Thermoplastic
-
Mounting: Threaded
-
Number of Poles: 1
-
Operating Cycles: 10000 cycles
-
Power Rating: 1800 W
-
Standards/Approvals: RoHS Compliant|UL 20 File No. E3896|CSA Certified|NEMA WD1
-
Terminal Type: Push-In/Side Wire
-
Voltage Rating: 120 V
