Hubbell RRD15BK RRD15BK HUBBELL RESI DUP RCPT, 15A 125V, DEC FACE, BK

Product Description

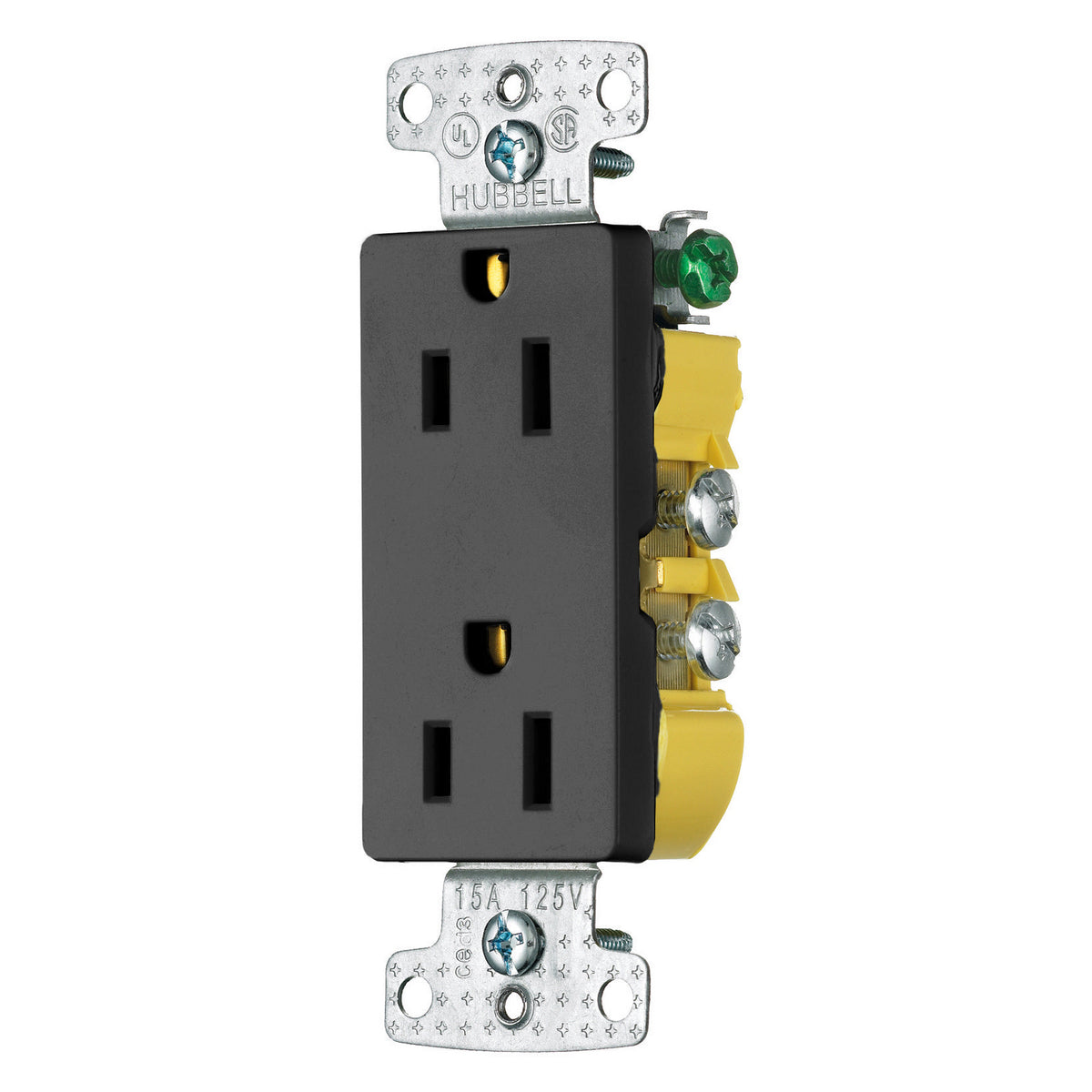

The Hubbell RRD15BK is a straight blade receptacle designed for standard screw mounting. It operates at one hundred twenty-five volts and supports a maximum of fifteen amperes. This device is suitable for residential applications and includes features supporting easy installation.

• Self-grounding feature is standard
• Meets 5-15R NEMA rating
• Temperature rating of minus twenty to sixty degrees Celsius

Product Highlights

This receptacle is built from thermoplastic material and offers two poles with three wires. Its compact dimensions make it ideal for residential wiring needs.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: RRD15BK

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Grade: Residential
• NEMA Rating: 5-15R
• Dimensions: 1.52 in W x 0.93 in D x 4.19 in H
• Temperature Rating: -20 to 60 deg C
• Material: Thermoplastic
• Horsepower: 1/2 hp
• Standards/Approvals: RoHS Compliant, CSA Certified, NEMA WD1/WD5, UL 498
