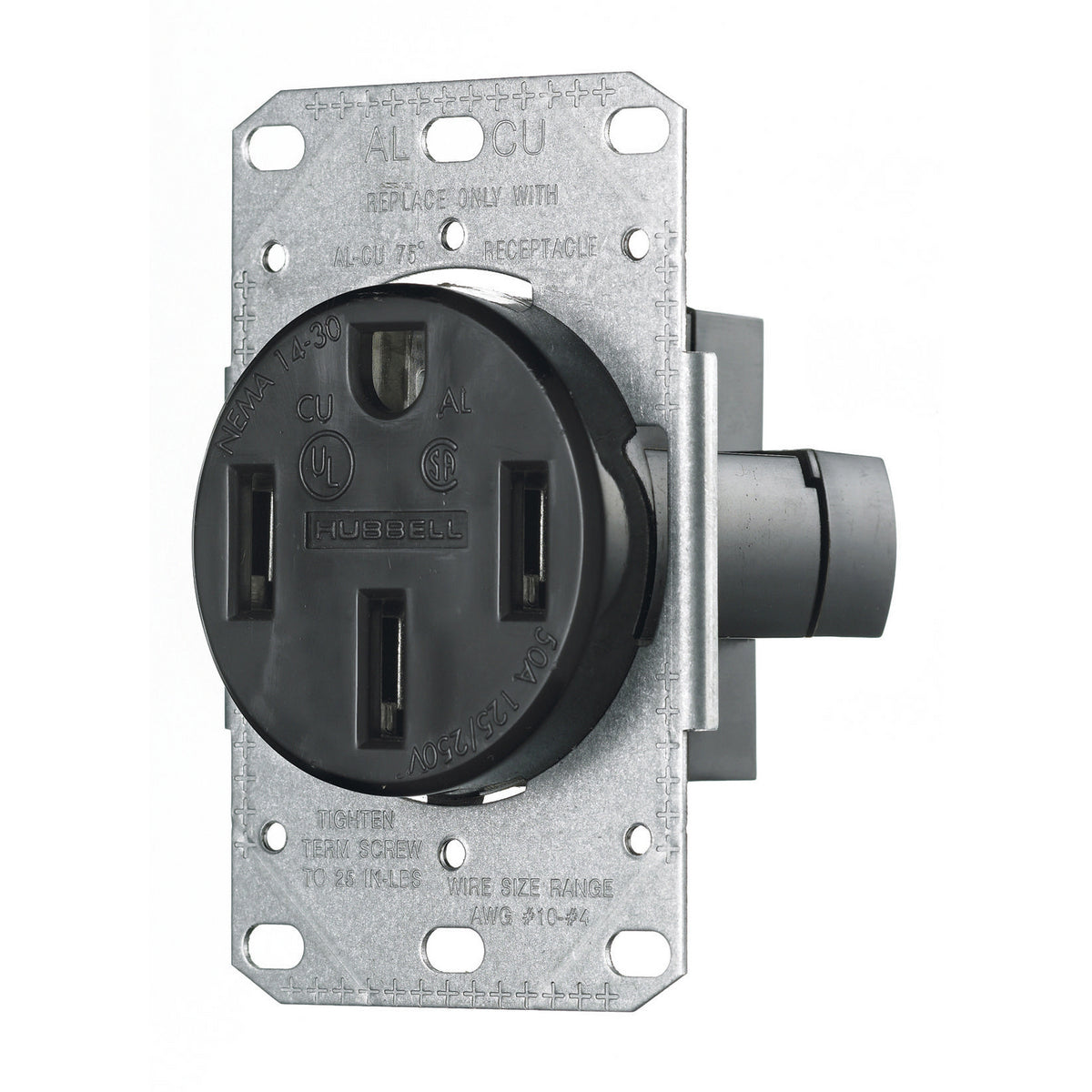

Hubbell RR450F Wiring Device-Kellems Range and Dryer Power Receptacle 50A 125/250V 3P4W

Product Description

The Hubbell RR450F is a wiring device designed for residential applications. This range and dryer power receptacle operates at 125/250 VAC with a capacity of 50 A. It features a one-phase flush mount standard screw mount with a three-pole and four-wire configuration.

• Suitable for indoor and residential applications.
• Compatible with 14-50R NEMA ratings.
• Constructed from thermoplastic/composite materials.

Product Highlights

This receptacle includes features that enhance installation and safety. It complies with National Electrical Code requirements and includes a tamper-resistant shutter for added security.

Product Information

Standard Information

• Manufacturer: Hubbell
• Application: Indoor and Residential Applications

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 125/250 VAC
• NEMA Rating: 14-50R
• Number of Wires: 4
• Number of Poles: 3
• Temperature Rating: 75 deg C
• Dimensions: 2.4 in W x 2.27 in D x 3.75 in H
