Product Description

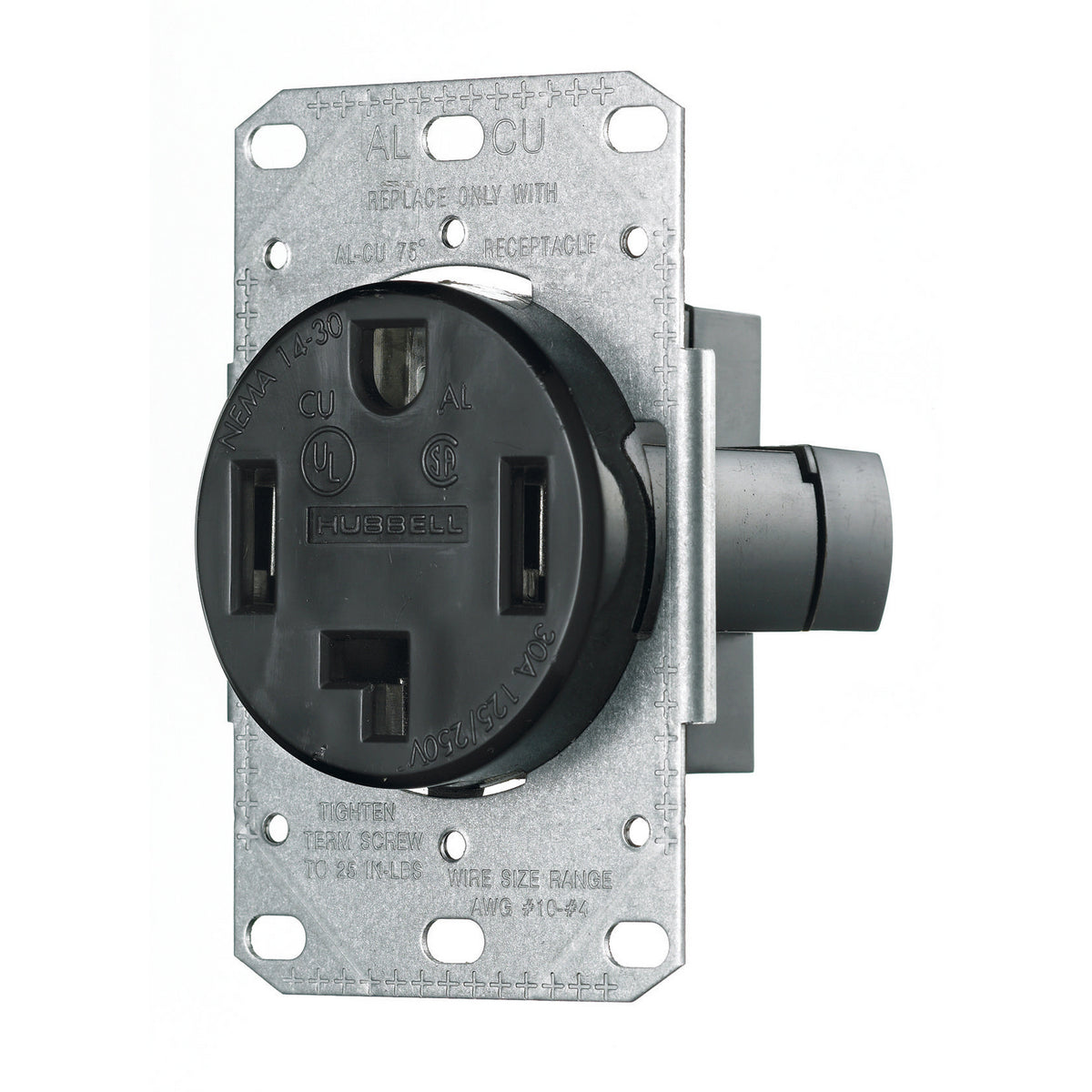

This Hubbell RR430F is a straight blade power receptacle designed for residential and commercial use. It operates at 30 amps with a voltage rating of 125/250 VAC. The receptacle has 3 poles and 4 wires and is suitable for flush mounting.
- Eliminates the need to loop the wire.
- Fast and easy installation with external back wire clamp.
- Can terminate up to 8 wires for convenience.
Product Highlights
The Hubbell RR430F is built with residential grade quality and features pressure screw terminals for secure connections. Ideal for various applications where reliable electrical connections are needed.
Product Information
Standard Information
-
Brand: Hubbell
-
MPN: RR430F
Technical Specifications
-
Amperage Rating: 30 A
-
Voltage Rating: 125/250 VAC
-
NEMA Rating: 14-30R
-
Grade: Residential
-
Material: Thermoplastic/Composite
-
Terminal Type: Pressure Screw
-
Number of Poles: 3
-
Number of Wires: 4
-
Dimensions: 2.4 in W x 2.52 in D x 3.75 in H
-
Standards/Approvals: RoHS Compliant, CSA Certified, UL 498
