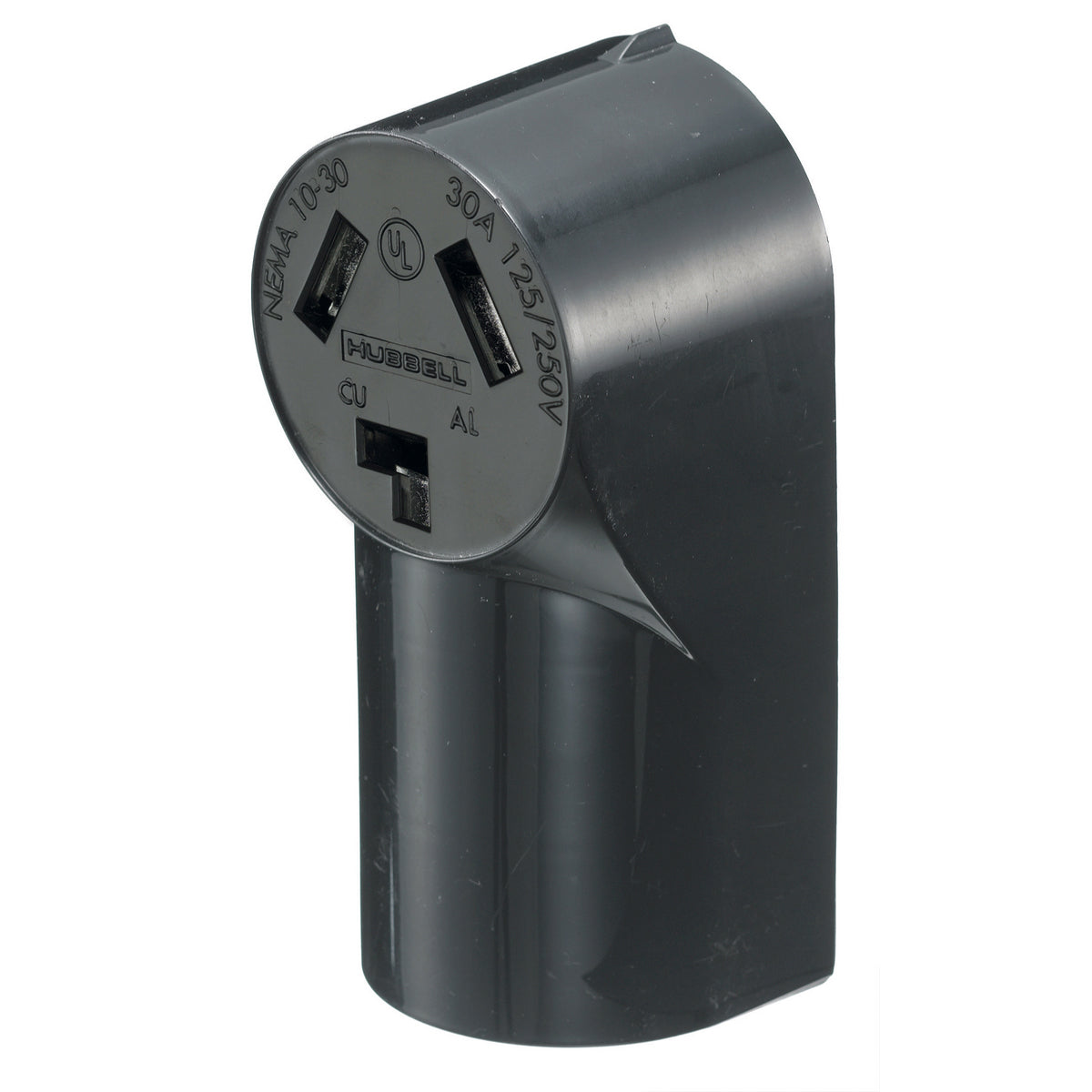

Hubbell RR330 HUBBELL RECPT, SB, 30A 125/250V, 3P3W, SURF, BK

Product Description

The Hubbell RR330 is a wiring device designed for efficient power connection. It operates at 125/250 volts and handles a current of thirty amps. This model features a surface mount installation method.

• Suitable for indoor dry environments
• Pressure screw terminals for secure and reliable connections
• Compliant with NEMA 10-30R rating

Product Highlights

This receptacle is appropriate for residential use and is compatible with a range of electrical setups. It includes features for easy installation and strong wire connections.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: RR330

Technical Specifications

• Amperage Rating: 30 A
• Application: Indoor Dry Environment
• Color: Black
• Dimensions: 5.49 inches L x 2.5 inches W x 0.96 inches H
• Grade: Residential
• Material: Thermoplastic; Composite/Thermoplastic
• NEMA Rating: 10-30R
• Number of Poles: 3
• Number of Wires: 3
• Standards/Approvals: RoHS Compliant, UL 498, CSA Certified
• Terminal Type: Pressure Screw
• Voltage Rating: 125/250 VAC
