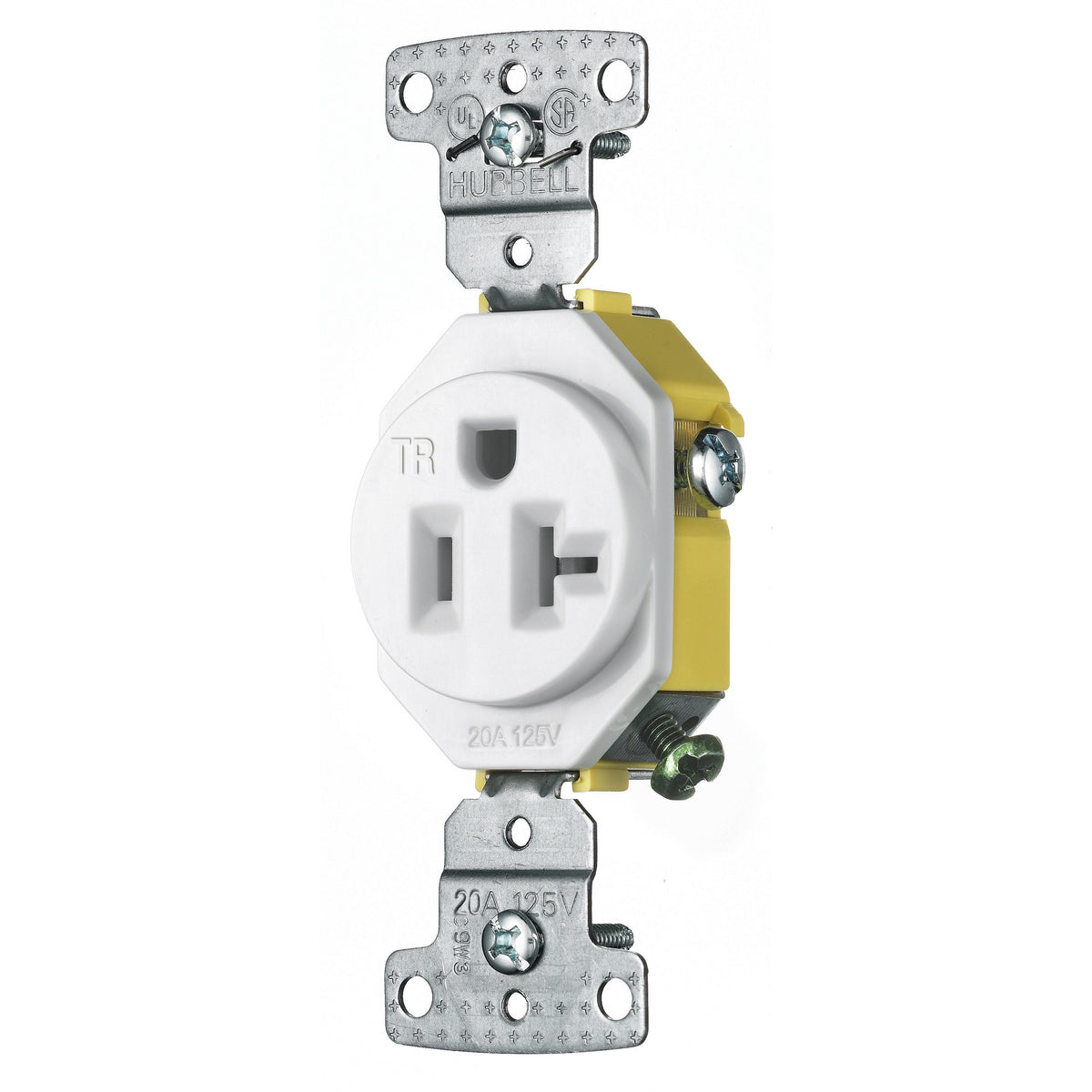

Hubbell RR201WTR Wiring Device-Kellems Straight Blade Receptacle 20A 125V

Product Description

The Hubbell RR201WTR is a straight blade receptacle designed to provide reliable and safe electrical connections. This 1-phase unit is constructed with self-grounding features. It operates at 125 volts and supports a maximum current of 20 amps. It is built to accommodate two poles and three wires, making it suitable for various residential applications.

• Durable thermoplastic construction
• Side wire terminal for easy installation
• Meets 5-20R NEMA rating standards

Product Highlights

This receptacle is ideal for indoor dry environments. It has a temperature rating from negative twenty to sixty degrees Celsius, ensuring functionality across various conditions.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 88377830200

Technical Specifications

• Amperage Rating: 20 A
• Application: Indoor Dry Environment
• Color: White
• Dimensions: 4.2 in L x 1.38 in W x 1.01 in H
• Grade: Residential
• Material: Thermoplastic
• NEMA Rating: 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -20 to 60 deg C
• Terminal Type: Side Wire
• Voltage Rating: 125 VAC
• Standards/Approvals: RoHS Compliant, UL 498, CSA Certified, NEMA WD1/WD5
