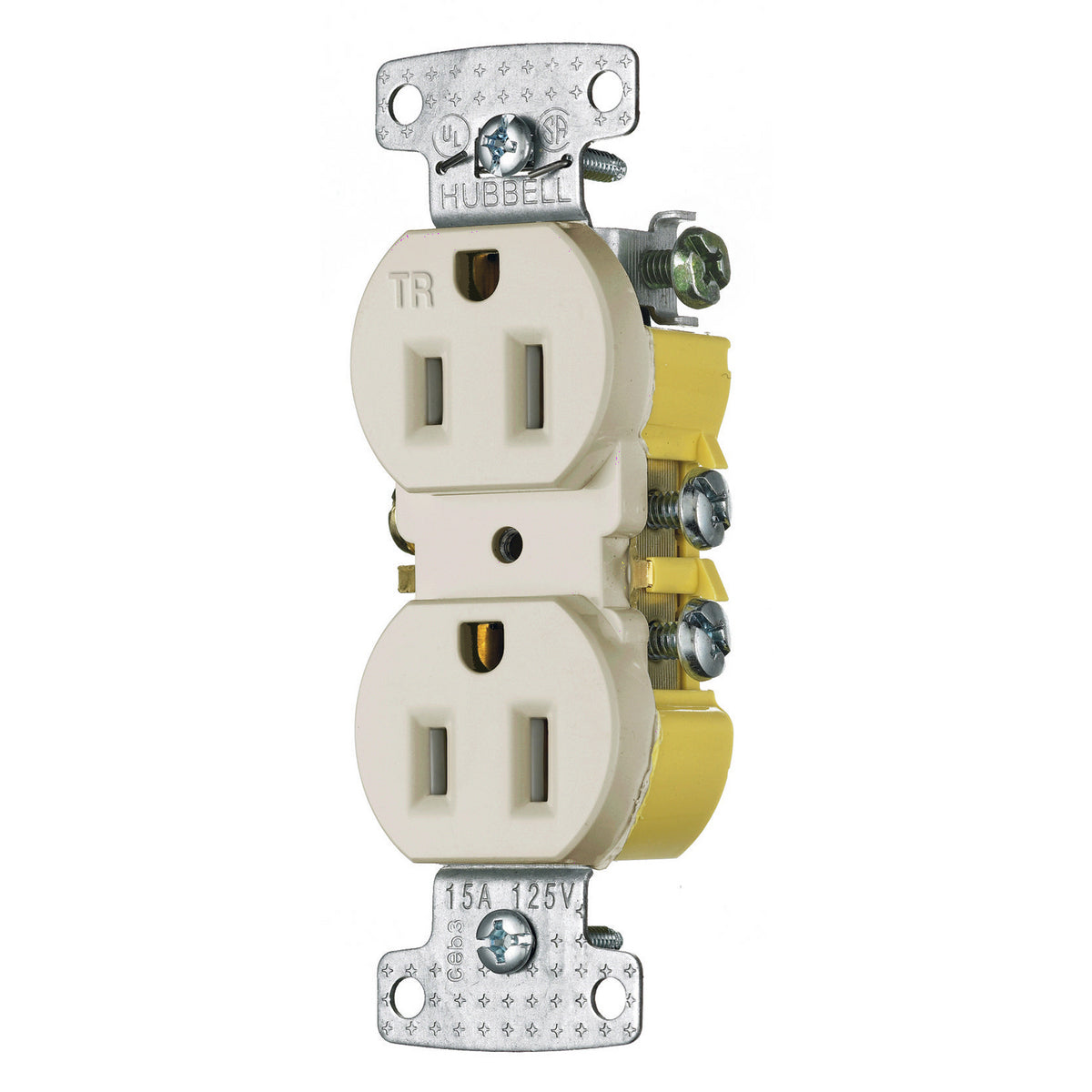

Hubbell RR15SLATR Wiring Device-Kellems 1-Phase Duplex Standard Traditional Tamper-Resistant Screw Mount 125 VAC 15 A

Product Description

The Hubbell RR15SLATR is a straight blade receptacle designed for indoor applications. It offers a tamper-resistant feature and is rated for 15 amperes and 125 volts. This receptacle is suitable for residential use and is made from thermoplastic materials for durability and safety. The design allows for easy installation with a push-in and side wire terminal.

• Self-grounding feature is standard
• Compatible with multiple screw heads for installation
• Hi-visibility yellow base aids in installation

Product Highlights

This receptacle meets the NEMA 5-15R rating for safety and efficiency in various residential environments.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 88377830153

Technical Specifications

• Amperage Rating: 15 A
• Application: Indoor Applications
• Color: Light Almond
• Dimensions: 1.3 in W x 1.03 in D x 4.19 in H
• Grade: Residential
• Horsepower: 1/2 hp
• NEMA Rating: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -20 to 60 degrees C
• Voltage Rating: 125 VAC
• Standards/Approvals: RoHS Compliant, CSA Certified, NEMA WD1/WD5, UL 498 File No. E2186, CSA C22.2 No. 42
• Terminal Type: Push-In/Side Wire
• Type: 1-Phase Duplex Standard Traditional Tamper-Resistant Screw Mount
