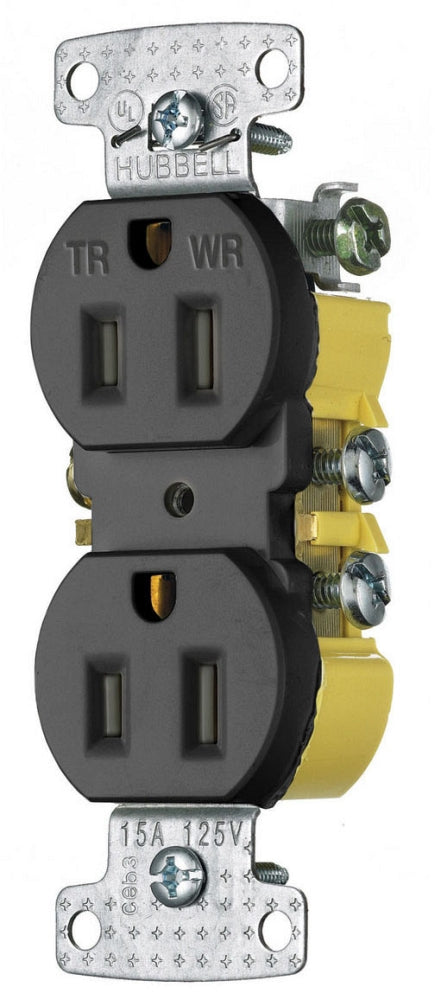

Hubbell RR15SBKWRTR Wiring RR15SBKWRTR RCPT DUP WR TR 15A 125V BK

Product Description

The Hubbell RR15SBKWRTR is a straight blade duplex receptacle rated for 125 VAC and 15 A. It features a tamper-resistant design and is suitable for residential applications, including hospitality and educational facilities. This receptacle is made from thermoplastic and can operate in temperatures ranging from minus twenty to sixty degrees Celsius. The device is self-grounding and includes side and push-in wire terminals for easy installation.

• Amperage rating: 15 A
• NEMA rating: 5-15R
• Standard approvals: UL 498

Product Highlights

Durable and safe for various applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• Material: Thermoplastic

Technical Specifications

• Type: 1-Phase Duplex Self-Grounding Standard Traditional Tamper/Weather-Resistant Screw Mount
• Color: Black
• Grade: Residential
• Dimensions: 1.52 in W x 1.03 in D x 4.19 in H
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -20 to 60 deg C
• Application: Residential, Hospitality, Assisted Living Facilities, Schools and Higher Education Housing Applications
• Terminal Type: Side and Push-In Wired
