Product Description

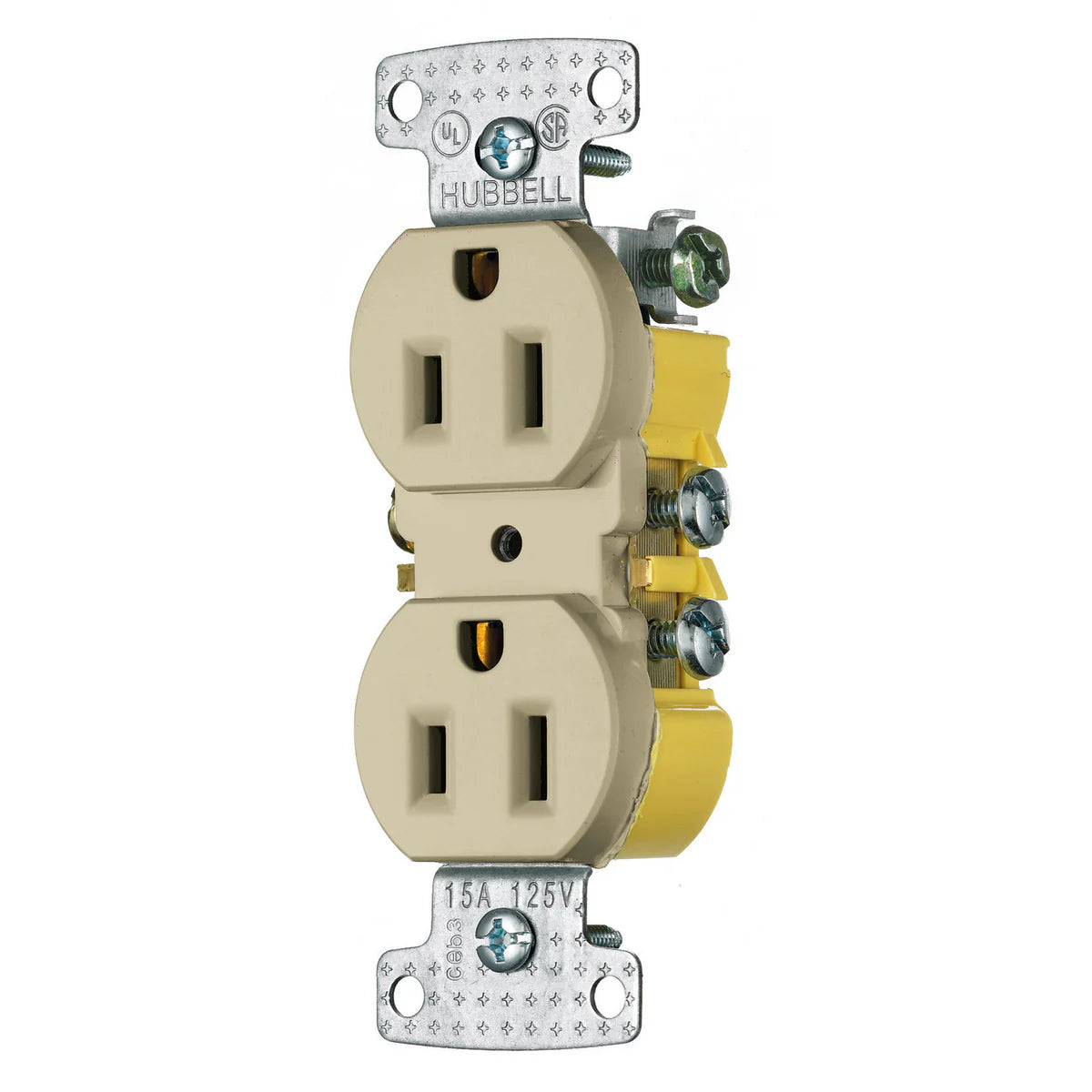

The Hubbell RR15I is a wiring device designed for residential applications. This straight blade receptacle operates at one phase, providing duplex self-grounding with a traditional screw mount. It supports a voltage rating of one hundred twenty-five volts and an amperage rating of fifteen amps.
- Self-grounding design
- Push-in/side wire terminals for easy installation
- Quality thermoplastic construction
Product Highlights
Reliable and efficient for residential wiring needs.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
UPC: 88377810002
Technical Specifications
-
Type: 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount
-
Color: Ivory
-
Voltage Rating: 125 VAC
-
Amperage Rating: 15 A
-
NEMA Rating: 5-15R
-
Number of Poles: 2
-
Number of Wires: 3
-
Material: Thermoplastic
-
Temperature Rating: -20 to 60 deg C
-
Dimensions: 4.19 in L x 1.52 in W x 0.93 in H
-
Standards/Approvals: RoHS Compliant, CSA C22.2 No. 42, UL 498 File No. E2186, NEMA WD1/WD5
