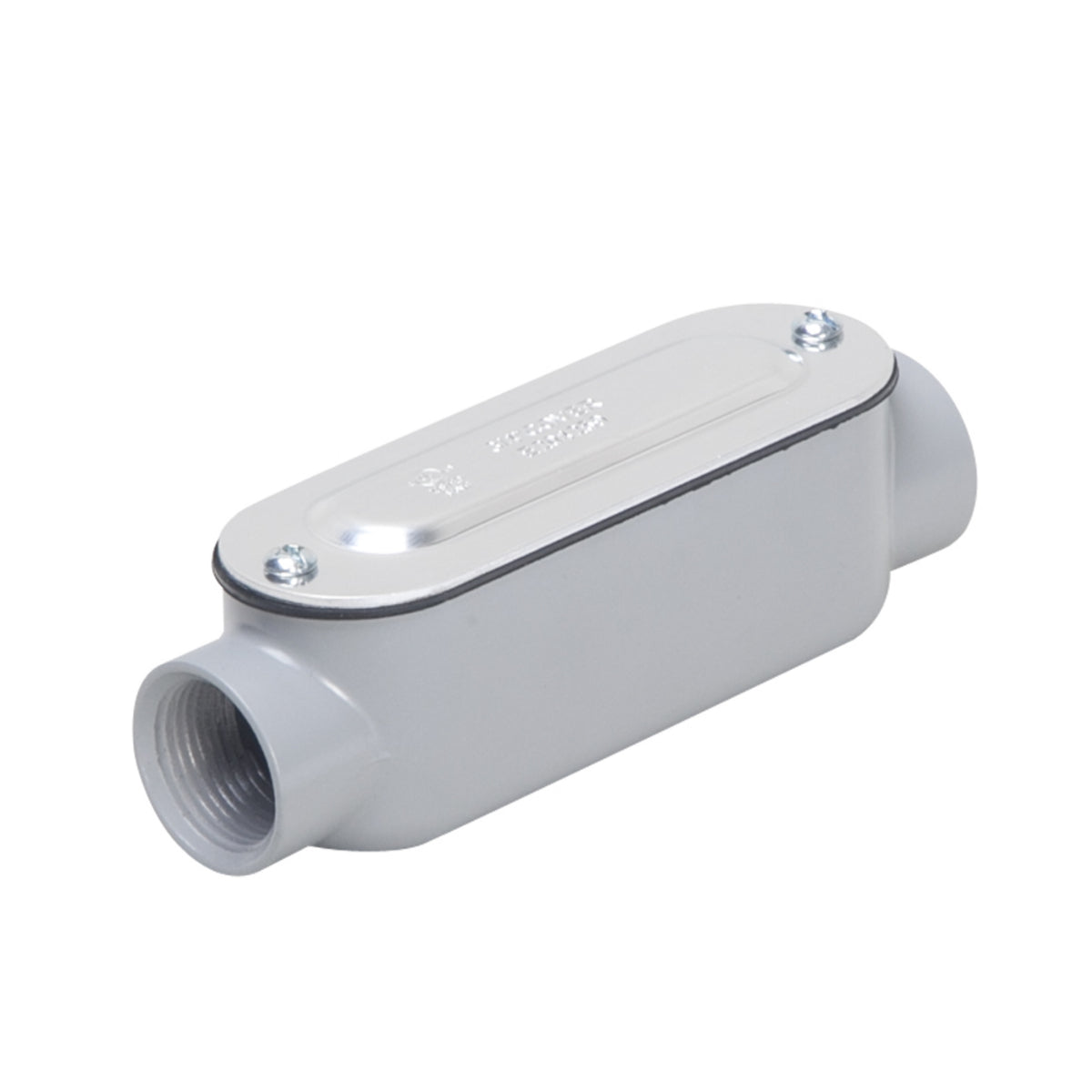

Hubbell RLC400 RACO 4 in Rigid C Assembly

Product Description

The Hubbell RLC400 is a Type-C conduit body designed for use with threaded rigid and IMC conduit. The model features a four-inch hub and two hubs, offering a capacity of three hundred twenty-three cubic inches. This product is suitable for pulling access or splitting a run into multiple directions. A removable cover permits easy access for maintenance and making taps and splices.

• Die cast aluminum construction
• Powder-coated finish
• NEMA 3R enclosure for protection

Product Highlights

The RLC400 is built for durability and efficiency in electrical applications.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: RLC400

Technical Specifications

• Application: For threaded rigid/IMC conduit pulling access or splitting runs
• Color: Gray
• Connection Type: Thread
• Dimensions: Sixteen point three inches L x five point five five inches W x five point five nine inches H
• Enclosure: NEMA 3R
• Finish: Powder Coated
• Hub Size: Four inches
• Material: Die Cast Aluminum
• Number of Hubs: Two
• Prop65 Message: WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
• Standards/Approvals: UL File No. E331564|NEC Certified|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Type: Type-C
