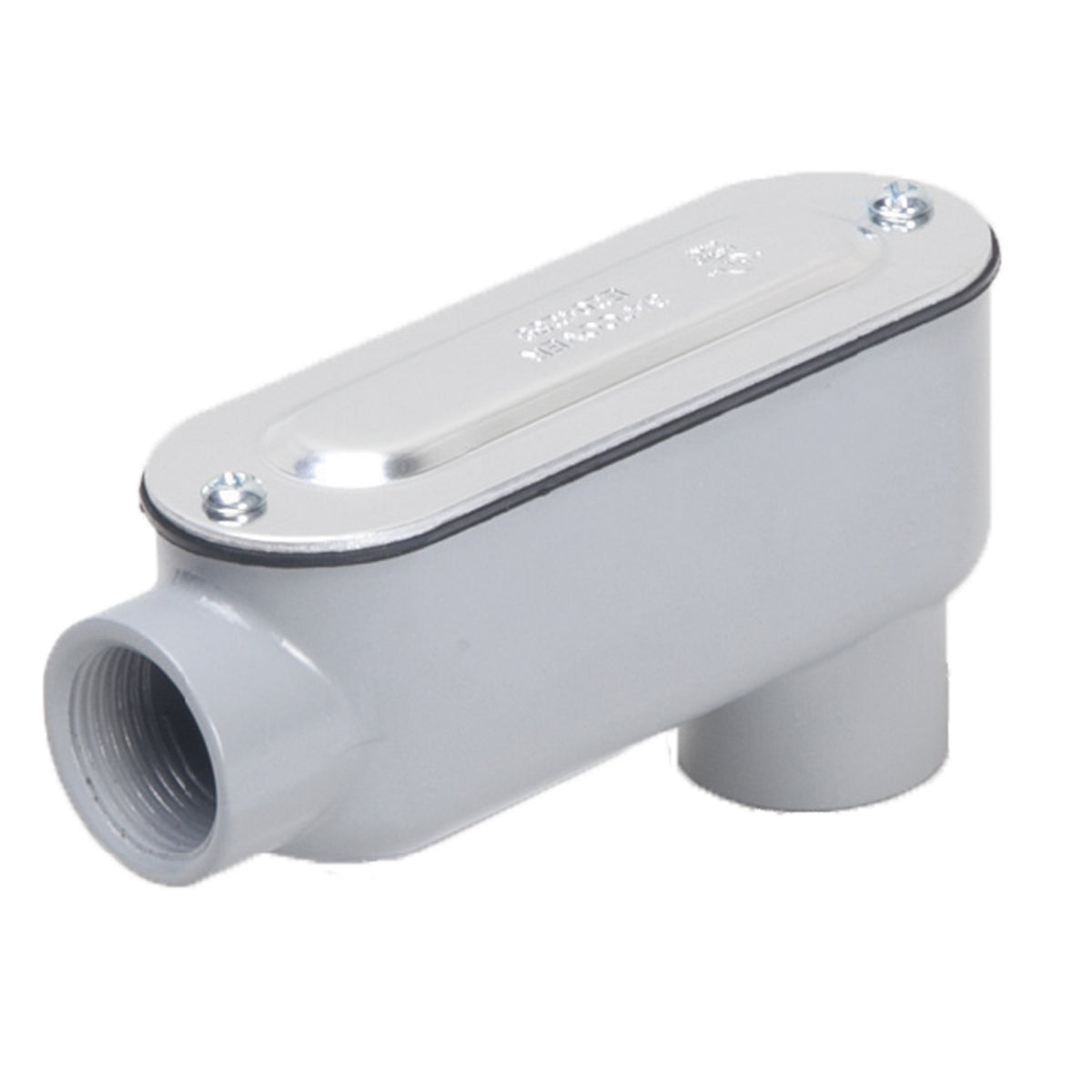

Hubbell RLB200 RACO 2 IN RIGID LB ASSEMBLY

Product Description

The Hubbell RLB200 is a conduit body designed for use in rigid conduit applications. It features a two inch hub size and has a capacity of sixty-seven cubic inches. The product is made of die cast aluminum with a powder-coated finish. This ensures durability and resistance to various environmental factors. The conduit body provides access for maintenance and allows for splicing of conductors.

• Durable die cast aluminum construction
• Sealed using a NBR synthetic rubber gasket
• Suitable for both residential and commercial electrical applications

Product Highlights

The RLB200 is built to support the installation of rigid and IMC conduit. It includes two hubs for multiple wiring routes and is compliant with NEMA 3R standards.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 09232621196

Technical Specifications

• Application: Rigid/IMC Conduit Applications
• Color: Gray
• Connection Type: Thread
• Dimensions: 10.05 in L x 3.19 in W x 4.51 in H
• Enclosure: NEMA 3R
• Finish: Powder Coated
• Hub Size: 2 in
• Material: Die Cast Aluminum
• Number of Hubs: 2
• Prop65 Message: WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
• Standards/Approvals: PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Type: Type LB
