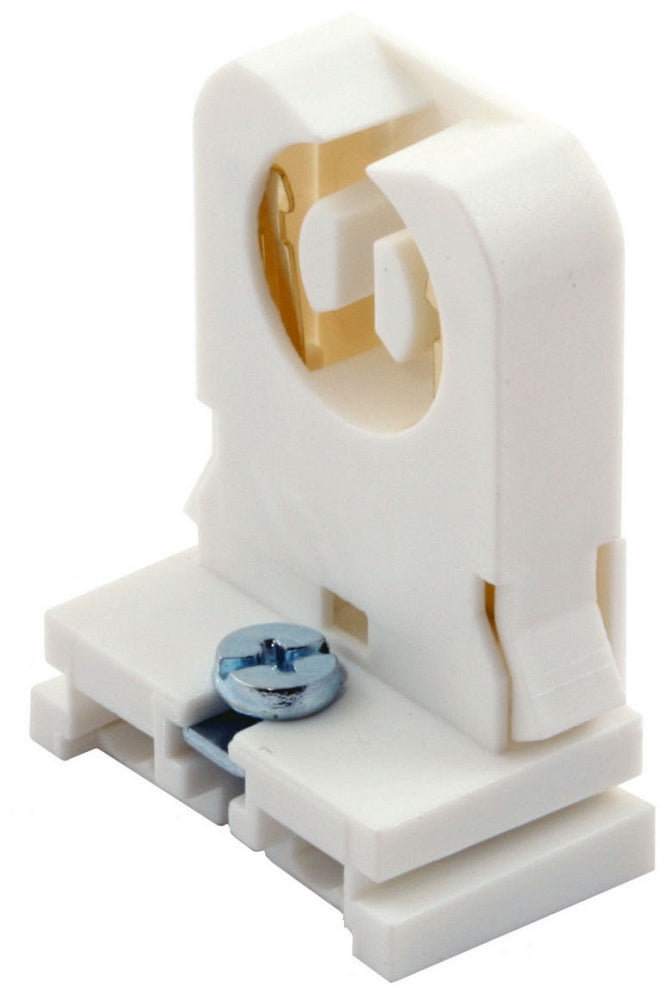

Hubbell RL325 FL Lampholder, Bipin, Lowpro, 4Wire Slide-On

Product Description

The Hubbell RL325 is a reliable lampholder designed for T8 and T12 fluorescent lamps. It accommodates a maximum wattage of six hundred sixty watts and operates at six hundred volts AC. This lampholder features a medium bi-pin base and is built for efficient performance in various lighting applications.

• Disconnect four-wire configuration
• Slide-on, snap-in with captive nut mounting
• Average lifespan of twenty thousand hours

Product Highlights

The RL325 lampholder is ideal for use in low-profile fluorescent lighting systems, ensuring secure connections and dependable operation.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: RL325

Technical Specifications

• Amperage Rating: 1.1 A
• Application: For T8/T12 low profile fluorescent lamp
• Color: White
• Connection Type: Screw
• Dimensions: 2-1/8 in W
• Frequency Rating: 60 Hz
• Includes: Captive Nut
• Lamp Base Type: Medium Bi-Pin
• Lamp Size: T3-1/4
• Lamp Type: T8/T12 Fluorescent
• Lamp Wattage: 660 W
• Material: Composite
• Mounting Type: Slide-On/Snap-In
• Series: TL211
• Standards/Approvals: UL 498|RoHS Compliant
• Terminal Type: Screw
• Type: Pedestal
• Voltage Rating: 600 VAC
