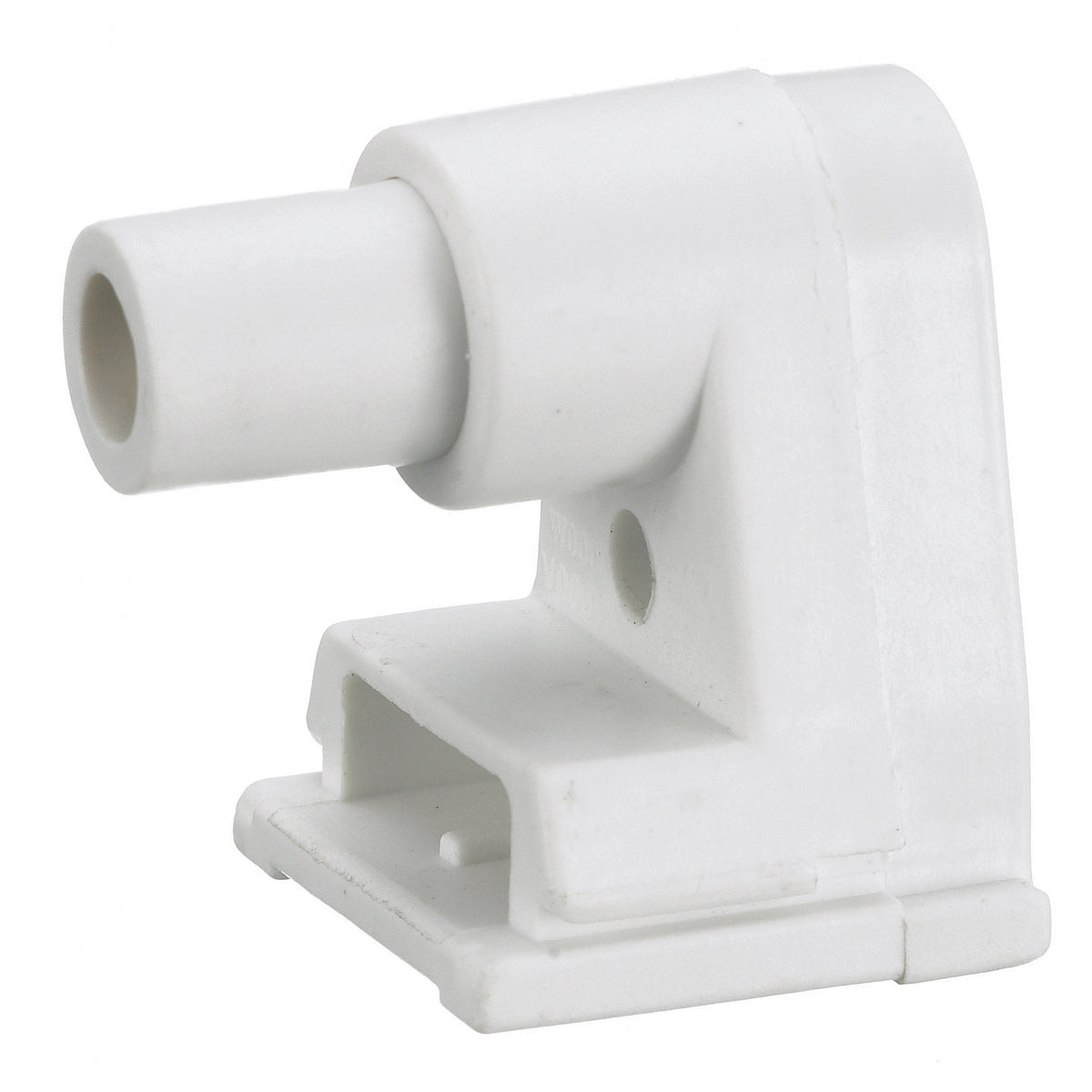

Hubbell RL310 Fluorescent Lamp Holder Slide On 660 W 600 VAC

Product Description

The Hubbell RL310 is a fluorescent lamp holder designed for reliable performance. It supports a maximum lamp wattage of six hundred sixty watts and operates at a voltage of six hundred volts AC. This lamp holder is suited for single-pin fluorescent lamps and offers a sturdy screw terminal connection.

• Max Lamp Wattage: 660 W
• Voltage Rating: 600 VAC
• Surface/Slide-On Mounting Type

Product Highlights

The RL310 provides a strong and reliable connection for fluorescent lighting applications. Its slimline plunger end design allows for easy lamp installation and removal, making it suitable for both new fixtures and retrofits.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: RL310

Technical Specifications

• Amperage Rating: 1.1 A
• Frequency Rating: 60 Hz
• Lamp Base Type: Single-Pin
• Lamp Type: Fluorescent
• Material: Composite
• Mounting Type: Surface/Slide-On
• Standards/Approvals: RoHS Compliant, UL 498, cUL Listed
• Terminal Type: Screw
• Type: Slimline Plunger End Standard
• Connection Type: Screw
• Voltage Rating: 600 VAC
