Product Description

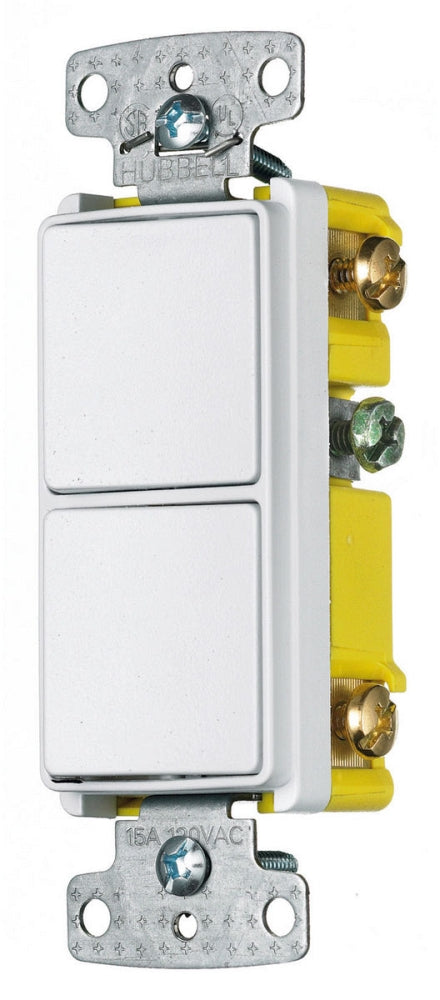

The Hubbell RCD101W is a combination switch designed for use in residential and indoor dry environments. This switch operates at a voltage rating of 120/277 VAC and has a power rating of 4155 watts. The two-position contact configuration includes a snap switch action and rocker actuator. It features a threaded mounting system for easy installation and supports both side and back wire terminals.
- Operating temperature range of -20 to 60 degrees Celsius
- Rated for 30,000 operating cycles
- Compatible with 14 to 12 AWG solid and stranded copper wire
Product Highlights
This combination switch maximizes control and maintains a clean appearance. The low-profile design and user-friendly rocker action ensure easy operation.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: RCD101W
Technical Specifications
-
Actuator: Rocker
-
Amperage Rating: 15 A
-
Application: Indoor Dry Environment and Residential Applications
-
Color: White
-
Contact Configuration: 2-Position
-
Dimensions: 1.32 inches W x 1 inch D x 4.2 inches H
-
Environmental Conditions: -20 to 60 degrees Celsius Operating Temperature
-
Mounting: Threaded
-
Number of Poles: 1
-
Operating Cycles: 30,000 Cycles
-
Power Rating: 4155 W
-
Series: Decorator
-
Standards/Approvals: RoHS Compliant, UL 20 File No. E3896, CSA Certified, NEMA WD1/WD5
-
Terminal Type: Side Wire
-
Type: 2-Position Standard
-
Voltage Rating: 120/277 VAC
