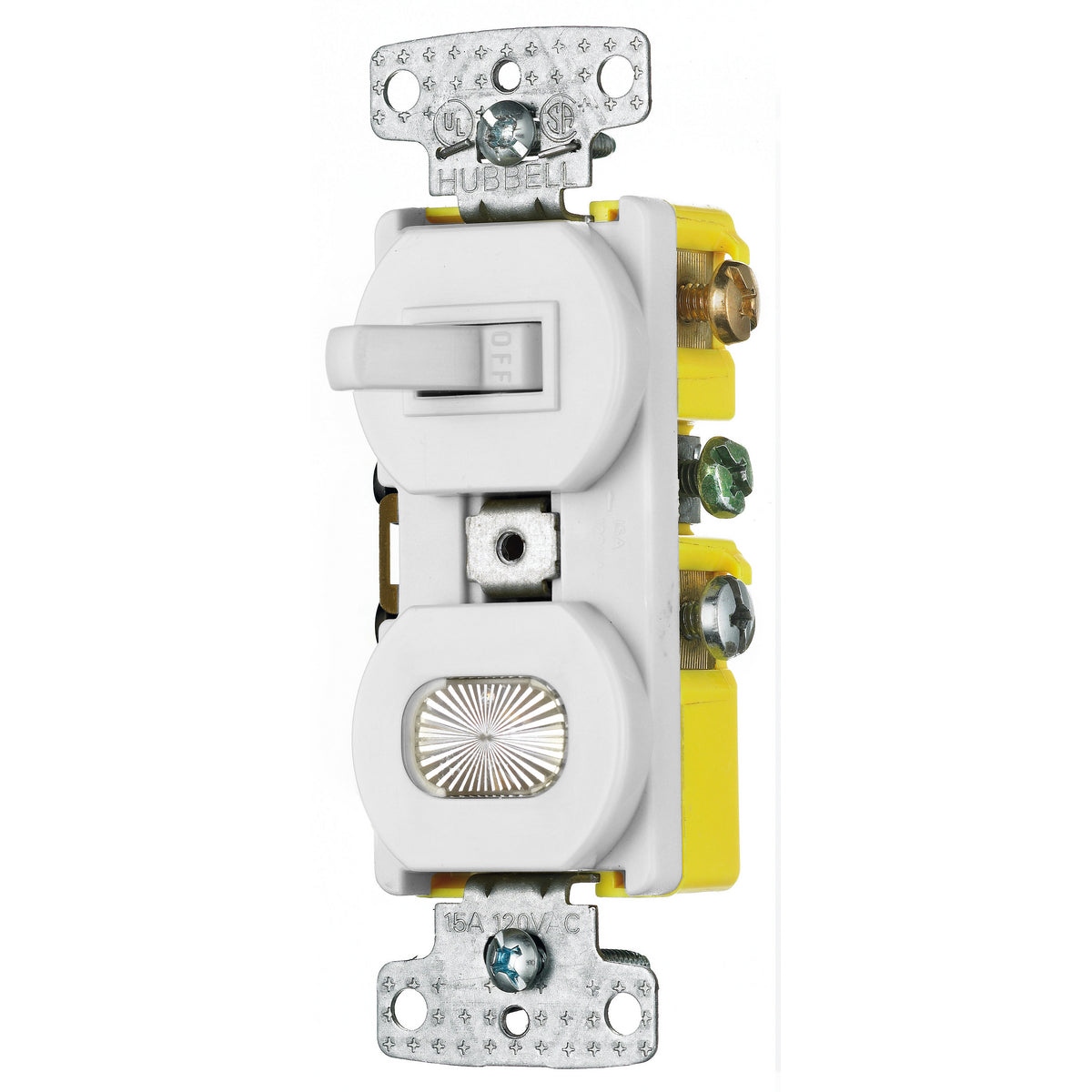

Hubbell RC109W HUBBELL COMBO, 15A SP TOG, PILOT/ILLUM, WH

Product Description

The Hubbell RC109W is a combination toggle switch designed for standard residential applications. This wiring device operates at 120 VAC with a current rating of 15 A and a wattage of 1800 W. It features an amber neon pilot lamp to indicate power status.

• 1 Pole with snap action mechanism
• 2-Position contact configuration
• Threaded mounting with side wire terminal

Product Highlights

This toggle switch combines functionality and control, perfect for various residential settings.

Product Information

Standard Information

• Manufacturer: Hubbell
• Product Name: RC109W HUBBELL COMBO, 15A SP TOG, PILOT/ILLUM, WH

Technical Specifications

• Amperage Rating: 15 A
• Application: Circuit Control and Indication Residential Applications
• Color: White
• Contact Configuration: 2-Position
• Contact Rating: 15 A
• Dimensions: 1.32 in W x 1.53 in D x 4.2 in H
• Lamp Type: Amber Neon Pilot
• Material: Composite
• Mounting: Threaded
• Number of Poles: 1
• Standards/Approvals: CSA Certified, RoHS Compliant, UL Listed
• Temperature Rating: -20 to 60 deg C
• Terminal Type: Side Wire
• Voltage Rating: 120 VAC
• Wattage: 1800 W
