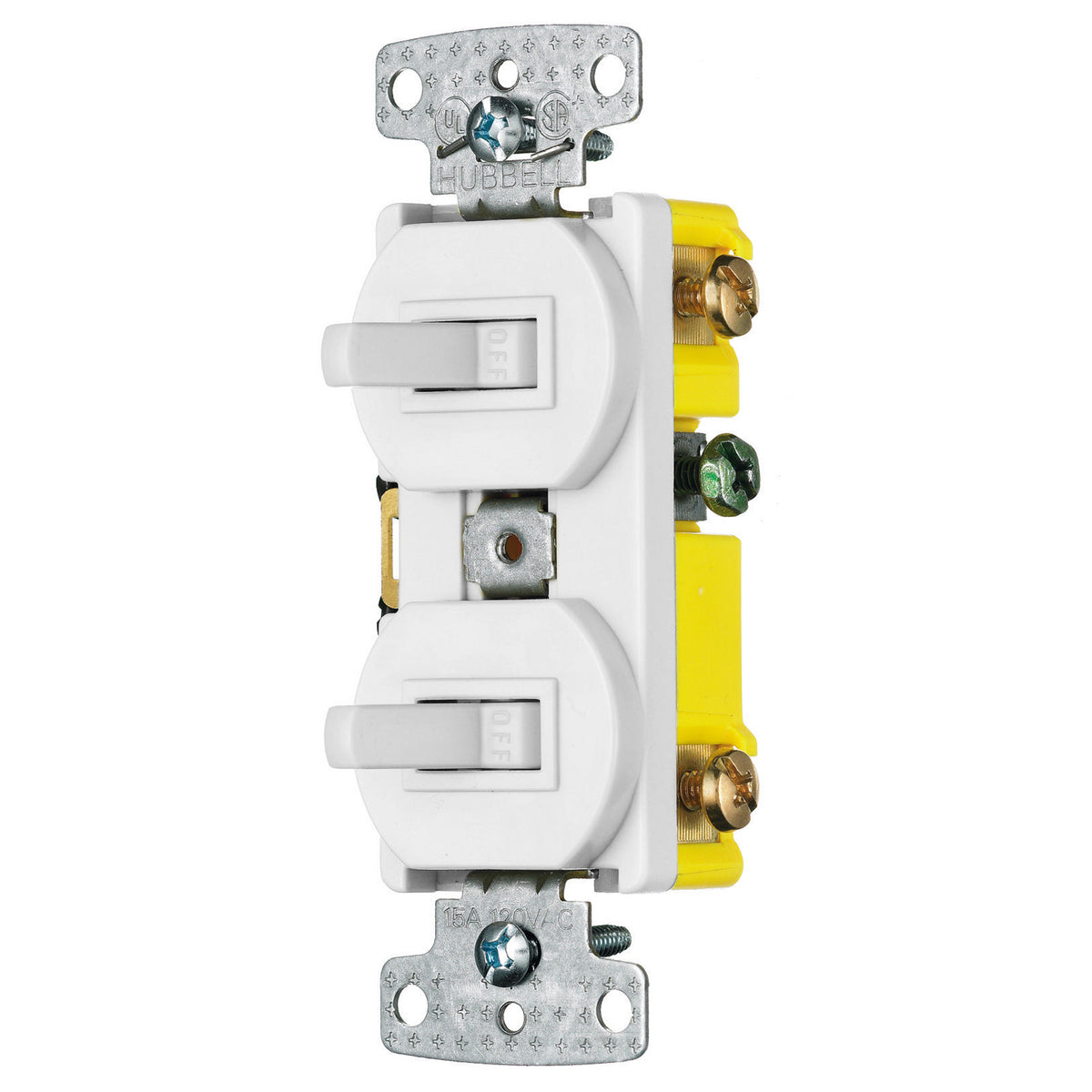

Hubbell RC101W Wiring Device-Kellems Traditional 2-Position Switch Combination Device 120 VAC 15 A

Product Description

The Hubbell RC101W is a wiring device that serves as a combination switch featuring a 2-position toggle. This device operates at a voltage of 120 VAC with a current rating of 15 A, making it suitable for various residential applications. It is designed for easy installation with features like threaded mounting and a compact design.

• Electrical ratings of 120 VAC and 15 A
• Compact size of four point two inches in height and one point thirty-two inches in width
• Durable construction with a lifespan of up to thirty thousand operating cycles

Product Highlights

The RC101W provides reliable performance with a sleek design, making it an ideal choice for residential settings where space is limited.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: RC101W

Technical Specifications

• Application: Residential Applications
• Contact Rating: 15 A
• Electrical Ratings: 120 VAC, 15 A, 1800 W
• Environmental Conditions: -20 to 60 degrees Celsius Without Impact Operating Temperature
• Number of Poles: 1
• Operating Cycles: 30000 Cycles
• Size: 4.2 in H x 1.32 in W x 1.53 in D
• Mounting: Threaded
• Standards/Approvals: RoHS Compliant, UL 20, CSA Certified, NEMA WD1/WD5
