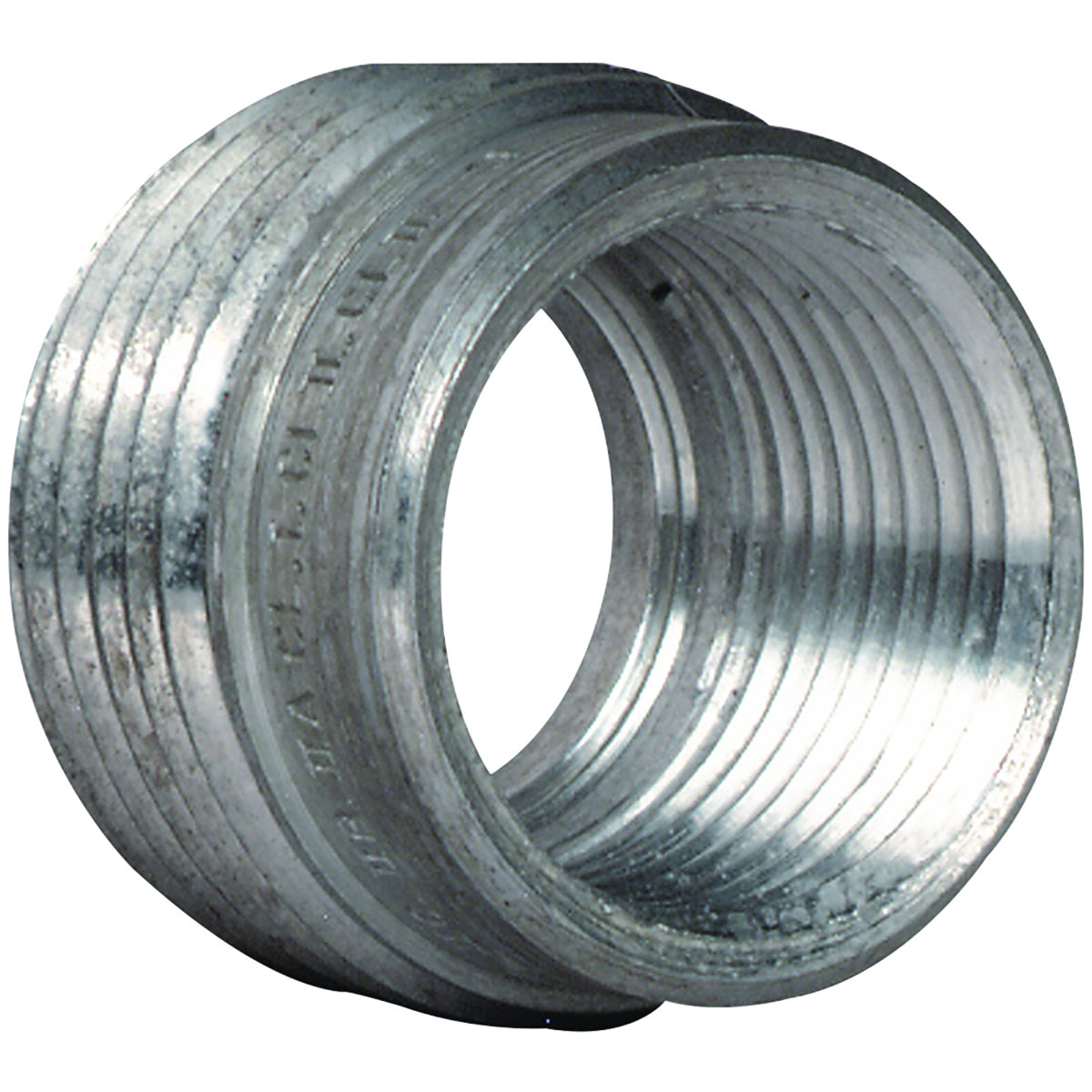

Hubbell R51 Reducing Bushing 1-1/2 inches to 1/2 inches

Product Description

The HUBBELL R51 reducing bushing assists in reducing the trade size of tapped holes. Its smooth internal bushing protects conductors. It is threaded for rigid conduit or IMC. It is available in copper-free aluminum and zinc-plated steel. The reducing bushing is suitable for use in hazardous locations.

• Tapered threads (NPT)
• Smooth internal bushing protects conductors
• Threaded for Rigid Conduit or IMC

Product Highlights

Reducing bushings assist in reducing the trade size of tapped holes and its smooth internal bushing protects conductors.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: R51

Technical Specifications

• Catalog Number: R-51
• Color: Silver
• Finish Type: Natural
• Material: Aluminum
• Series: R Series
• Type: Reducing Bushing
• UPC: 783936570075
• Hub Size: 1-1/2" to 1/2"
• CSA File Number: LR11716
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups A, B, C, D Class I, Zones 1 & 2, Groups IIC, IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G
• UL File Number: E10514
• Manufacturer Part Number: R-51
• Product Series: R
• Connection Type: Male/Female
• External Thread: 1-1/2 NPT
• Internal Thread: 1/2 NPT
• Length: 0.81 "
• Composition: Metallic
• Hazardous Location: Hazardous Location
• Approvals: CSA, UL
• Brand: Hubbell-Killark Electric
• Conduit Type: Rigid/IMC
• Insulation: Non-insulated
• Fitting Type: Reducing Bushing
• Size: 1-1/2 x 1/2 in
• Threaded: Yes
