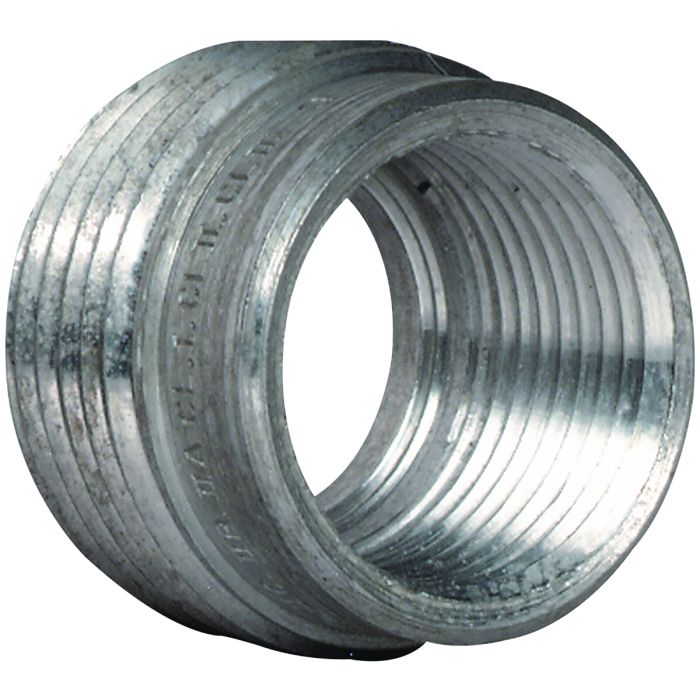

Hubbell R32 Reducing Bushing 1 inches to 3/4 inches

Product Description

The HUBBELL R32 is a reducing bushing designed to reduce the trade size of tapped holes. Its smooth internal bushing protects conductors. It is threaded for Rigid Conduit or IMC. The wide variety of reducing ranges allow for almost any combination of size changes. It is available in copper-free aluminum.

• Tapered threads (NPT)
• Smooth internal bushing protects conductors
• Threaded for Rigid Conduit or IMC

Product Highlights

Reducing bushings assist in reducing the trade size of tapped holes. Its smooth internal bushing protects conductors.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: R32
• Country of Origin: USA

Technical Specifications

• Application: To reduce the trade size of a taped hole or hub.
• Catalog Number: R-32
• Color: Silver
• Finish Type: Natural
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: R Series
• Type: Reducing Bushing
• UPC: 783936570037
• Height: 0.81 in
• Hub Size: 1" to 3/4"
• Length: 1.32 in
• Weight: 0.04 lb
• Width: 1.32 in
• CSA File Number: LR11716
• Hazardous Rating(s): Class I, Divisions 1 & 2, Groups A, B, C, D Class I, Zones 1 & 2, Groups IIC, IIB, IIA Class II, Divisions 1 & 2, Groups E, F, G
• UL File Number: E10514
• Manufacturer: Hubbell
• Finish: Natural
• Conduit Size: 3/4 to 1 in
• Item: REDUCING BUSHING HAZ ALUM 1 TO 3/4IN
• Ends - Hazardous Fittings: 3/4 in FNPT x 1 in MNPT
• Item - Conduit Fitting: Reducing Bushing
• Overall Length - Fitting: 3/4 in
