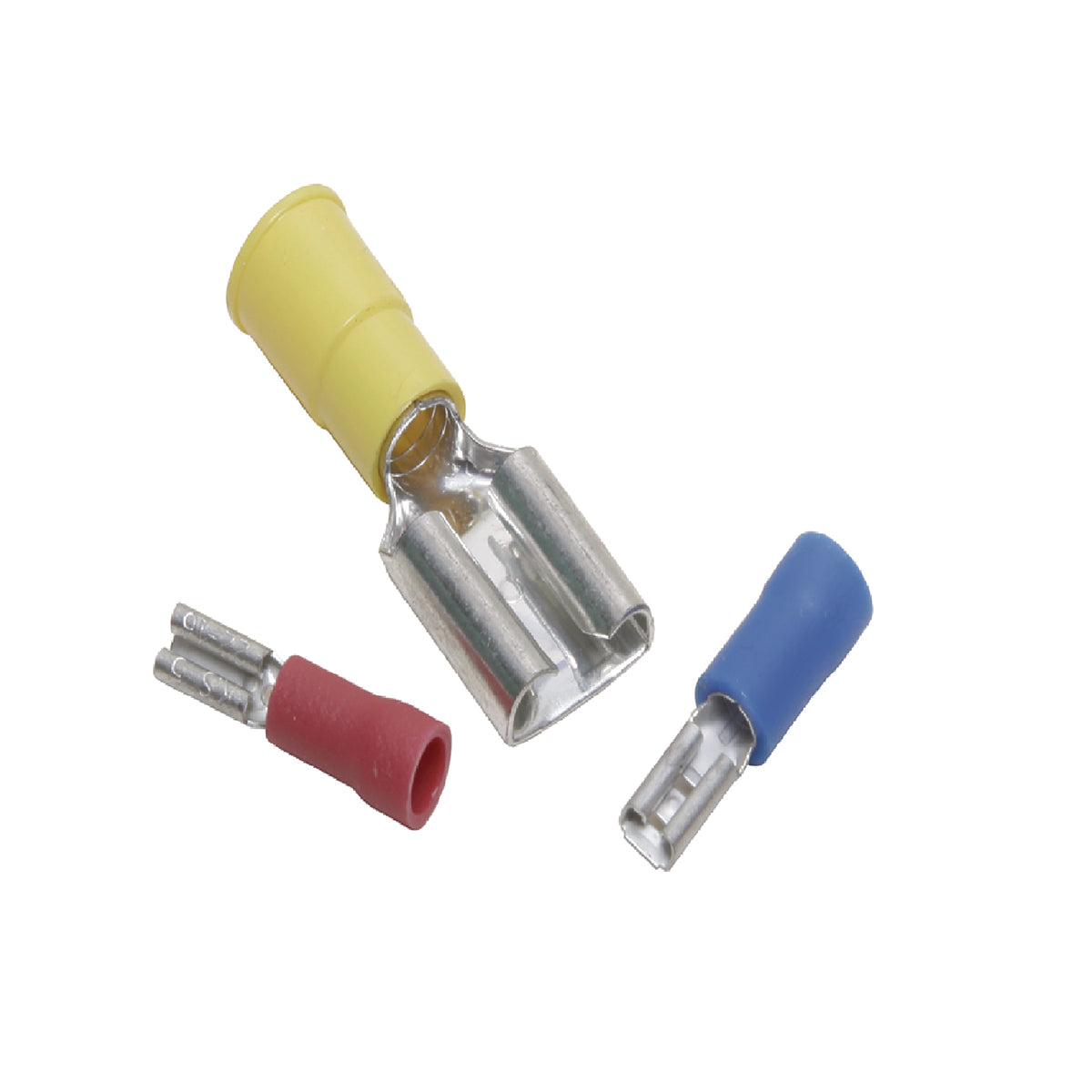

Hubbell QP18F25X03D Vinyl Insulated Female Quick Disconnect, 22 to 18 AWG

Product Description

This is the Hubbell QP18F25X03D Vinyl Insulated Female Quick Disconnect. It is designed for reliable and efficient electrical connections for stranded copper conductors.

• Works with 22 to 18 American Wire Gauge (AWG) stranded copper conductors
• Tin coated finish for enhanced corrosion resistance
• Compatible with type QP-M male disconnects

Product Highlights

This quick disconnect provides a seamless way to connect and disconnect wiring.

Product Information

Standard Information

• Manufacturer: Hubbell
• MPN: QP18F25X03D

Technical Specifications

• Application: For quickly connecting or disconnecting a terminal
• Color: Red
• Conductor Size: 22 to 18 AWG
• Conductor Type: Stranded Copper
• Dimensions: 0.91 inches long x 0.29 inches wide
• Finish: Tin Coated
• Length: 0.87 inches
• Material: Brass
• Specifications: 0.25 x 0.032 inches Tab, 3/8 inches long Strip, 0.08 inches Spacing
• Temperature Rating: 105 degrees Celsius
• Voltage Rating: 60 VAC
• Standards/Approvals: ARRA Compliant, CSA Certified, RoHS Compliant, UL 467, BAA Compliant
