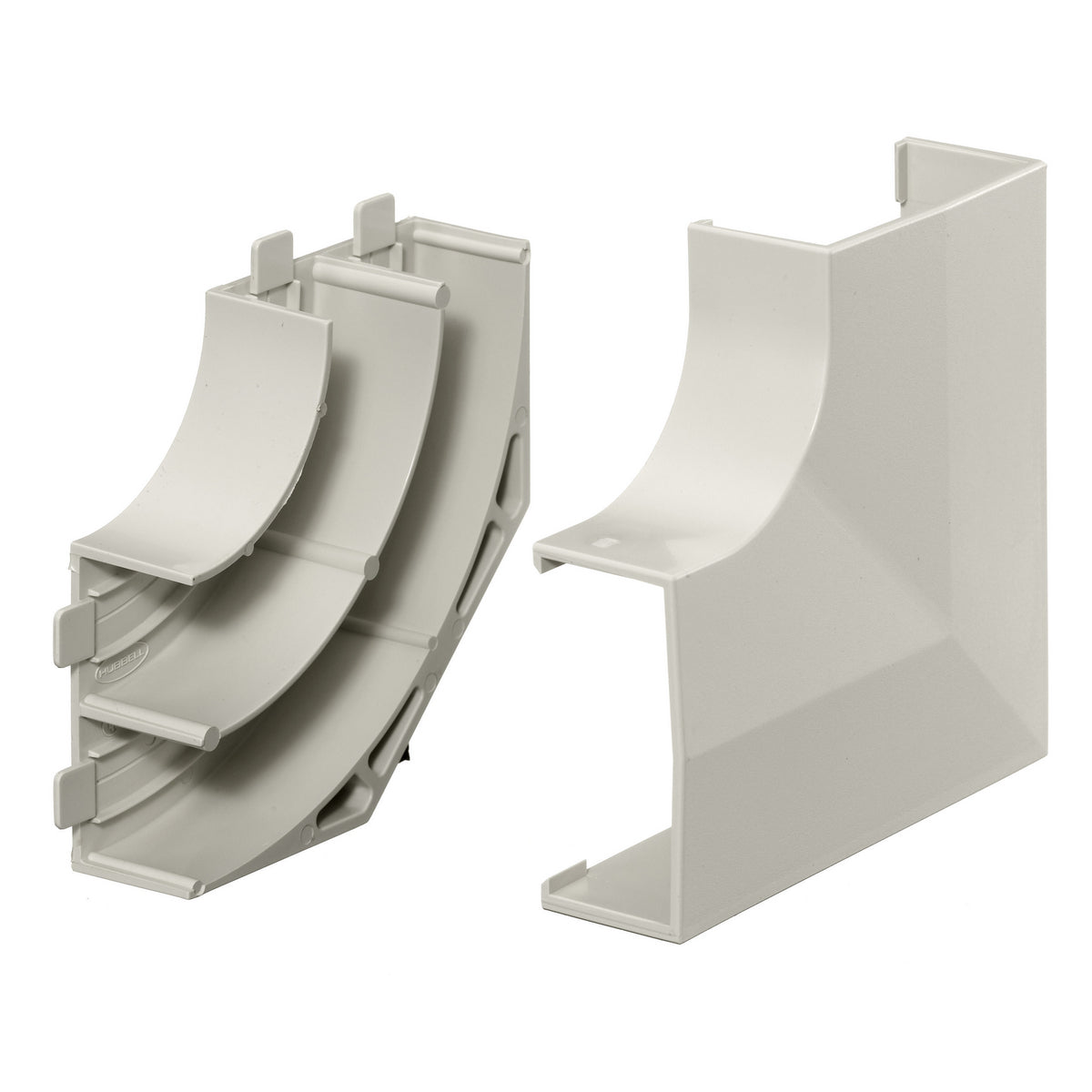

Hubbell PW2FEBC PW2 Series 1-1/4 Radius Elbow Base/Cover

Product Description

The Hubbell PW2FEBC is a wall raceway elbow designed for a bend radius of one and one-fourth inches. This accessory is built for use with the WallTrak® PW2 Series non-metallic raceway system. The flat end design allows for seamless connections between different raceway sections.

• For use with WallTrak® PW2 Series raceways
• Made from durable PVC material
• Designed for non-hazardous locations

Product Highlights

Ideal for routing electrical data and voice applications, this elbow maintains a consistent bend radius that helps reduce strain on cables.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358509068

Technical Specifications

• Application: Non-Hazardous Locations; Power, Data, Voice, Audio and Video Applications
• Bend Radius: 1-1/4 inches
• Color: Off-White
• Dimensions: 3.94 inches L x 3.94 inches W x 1.11 inches H; 9 inches L x 6 inches W x 1.3 inches H
• End Type: Flat
• Includes: Base and Cover
• Material: PVC
• Series: PW2
• Size: 1.6 sq-in
• Standards/Approvals: CSA C22.2 No. 62 | UL 5A File No. E118895/E119190; EIA Compliant; TIA-569A; UL94 V-0 Flammability Rating; RoHS Compliant
• Suitable For Use With: WallTrak® PW2 Series Latching Non-Metallic Raceway; WALLTRAK® Non-Metallic Raceway
• Type: Extruded Flat Latching Non-Metallic Standard
