Hubbell PW2EEBC Kellems WallTrak2, BS+CVR, EXT ELBOW 78358509066

Product Description

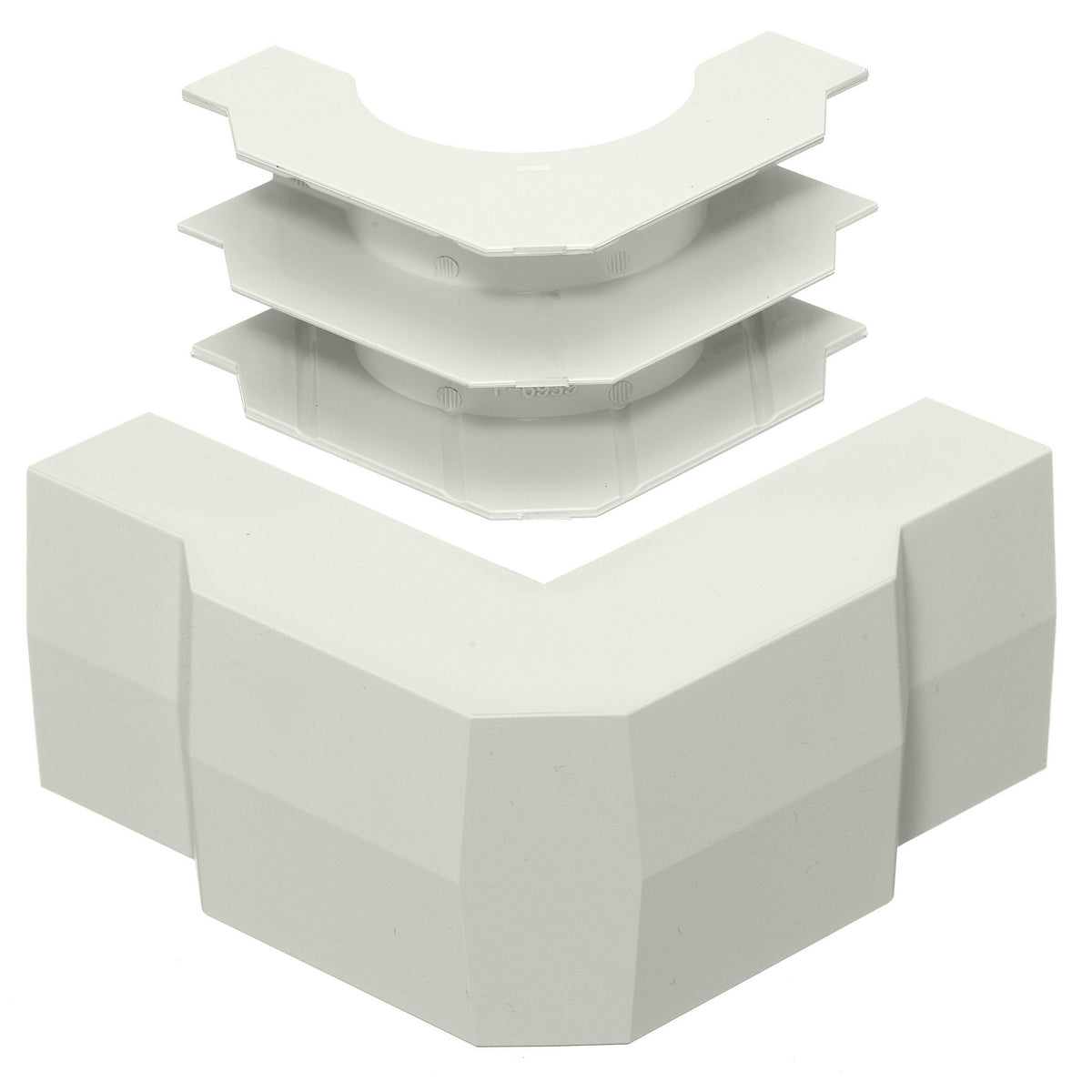

The Hubbell PW2EEBC is a Wiring Device designed for electrical raceway applications. This raceway elbow is part of the WallTrak series, designed to offer a clean and professional finish in non-hazardous locations. It features a one and one-quarter inch bend radius with a size of one point six square inches. Compatible with the WallTrak PW2 series, this elbow is made from a non-metallic material and features a reliable external extruded latching mechanism.

• For use with WallTrak PW2 series raceways
• Non-metallic design for durable applications
• Meets CSA and UL standards

Product Highlights

This elbow provides excellent routing of wiring while maintaining a neat appearance. It is suitable for various installation projects while following safety standards.

Product Information

Standard Information

• Manufacturer: Hubbell
• Manufacturer Part Number: PW2EEBC

Technical Specifications

• Application: Non-Hazardous Locations
• Bend Radius: 1-1/4 inches
• Color: Off-White
• Dimensions: 5 inches L x 2.32 inches W x 5 inches H
• Includes: Base and Cover
• Size: 1.6 square inches
• Standards/Approvals: CSA C22.2 No. 62, UL 5A File No. E118895/E119190
• Suitable For Use With: WallTrak PW2 Series Latching Non-Metallic Raceway
• Type: External Extruded Latching Non-Metallic Standard
