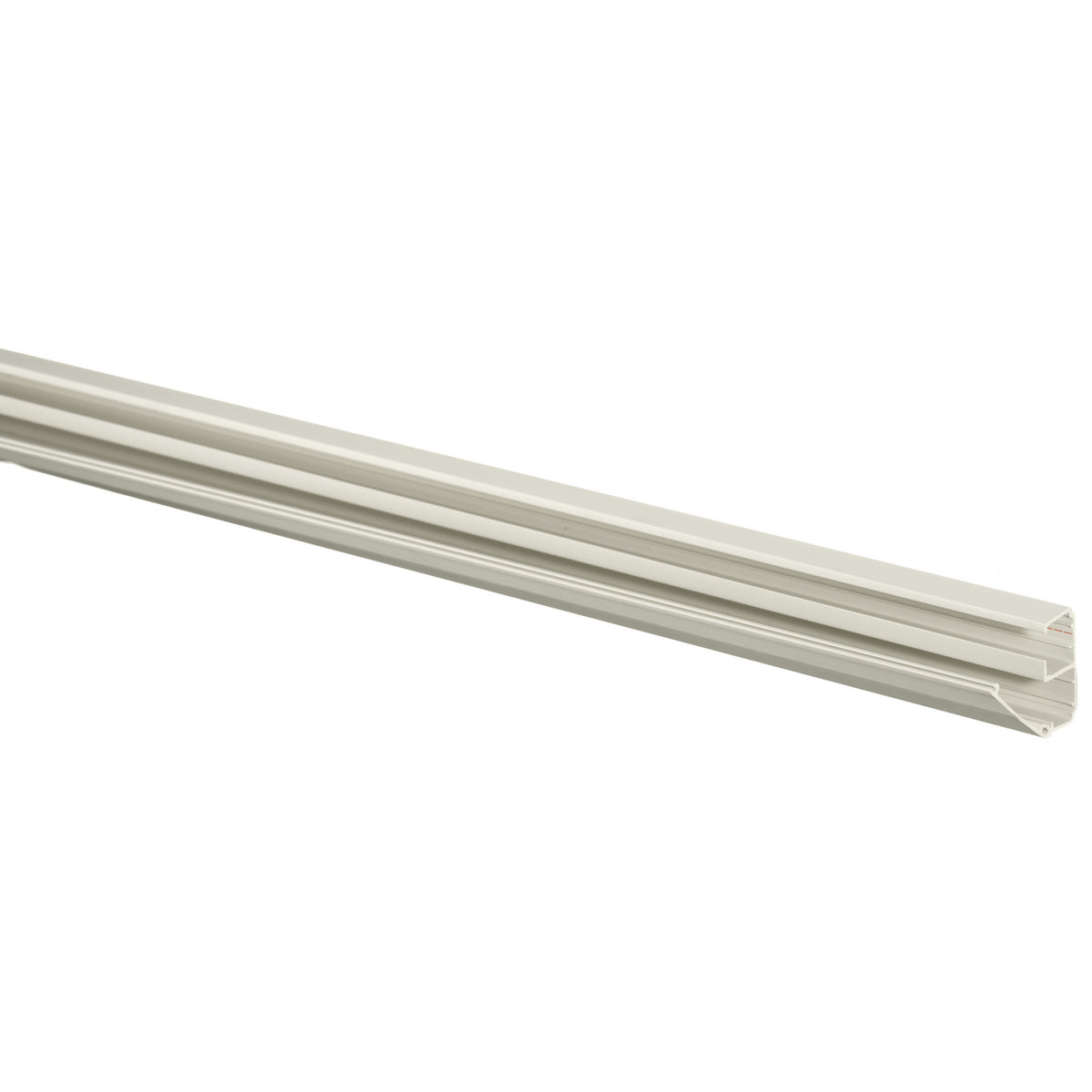

Hubbell PW2ABC7 Non-Metallic Raceway WallTrak2 7 feet Length

Product Description

The HUBBELL PW2ABC7 is a non-metallic raceway, latching WallTrak, WallTRAK2, with an adhesive base and cover, and a length of 7'. It is UL Listed and CSA Certified to 600 volts. Single and two channel latching raceways are dual-rated for both power and data applications, reducing inventory requirements.

• UL Listed and CSA Certified to 600 volts
• Single and two channel latching raceways are dual-rated for both power and data applications, reducing inventory requirements
• 7' Base and Cover- Adhesive Back

Product Highlights

This non-metallic raceway is perfect for power and data applications. Its latching design and adhesive backing make installation easy.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: PW2ABC7
• Country of Origin: USA

Technical Specifications

• Catalog Number: PW2ABC7
• Application: 7' Base and Cover- Adhesive Back
• Color: Office White
• Construction: Extruded Plastic
• Cover Type: Removable
• Enclosure Type: NEMA 1 Rating
• EU RoHS Indicator: Yes
• Item Type: PW2, 2-Channel WallTrak- Latching
• Knockouts: None
• Material: Thermoplastic
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Performance: Environmental - Flame Rating - UL94V-0 Environmental - Temperature Range - -25.6 to 158 F
• Series: PW2
• Specifications: Crush Resistance - 300 lbs. Impact Resistance - 5 ft. lbs. Length - 7 ft. (2.1m) Material - UV Stabilized PVC
• Style: Two Channel, Latching
• Type: Base and Cover
• UPC: 783585090603
• Number of Channels: 2
• Brand: Hubbell Premise Wiring
• Sub Brand: Non-Metallic Raceway Products
• Height: 1.04 Inch
• Weight: 0.3200 lb
• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39131710
• Length: 7 Foot
• Width: 2.12 in
• Industry Standard(s): CSA Standard C22.2 no. 62 E118895 / E119190 UL Standard UL 5A
• Non Hazardous Location: Non Hazardous
• Standard: CSA Standard C22.2 No. 62,E118895,E119190,UL Standard UL 5A
