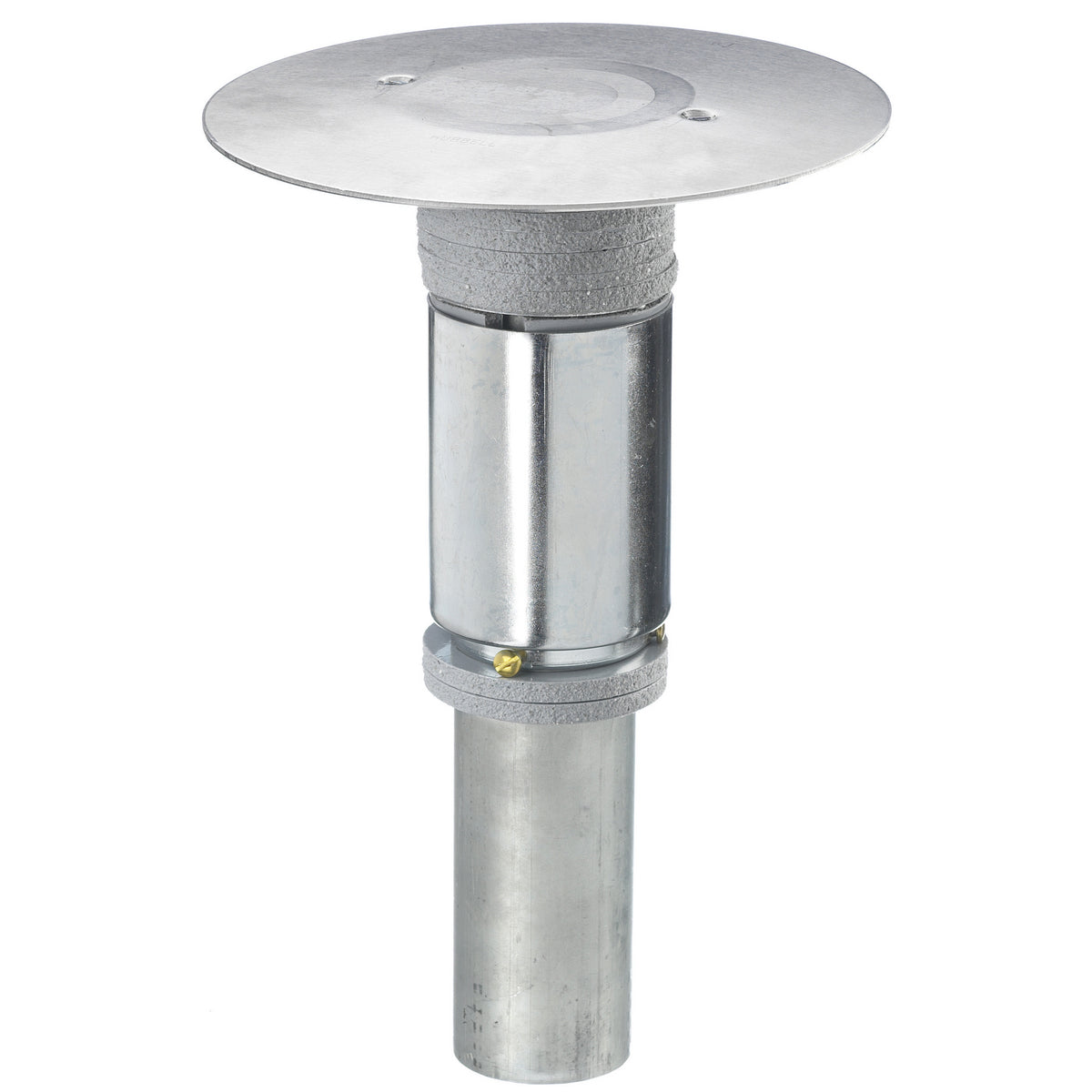

Hubbell PT2FIT Low Voltage Large Capacity Flush Furniture Feed Series 2 EMT Though Floor Fitting

Product Description

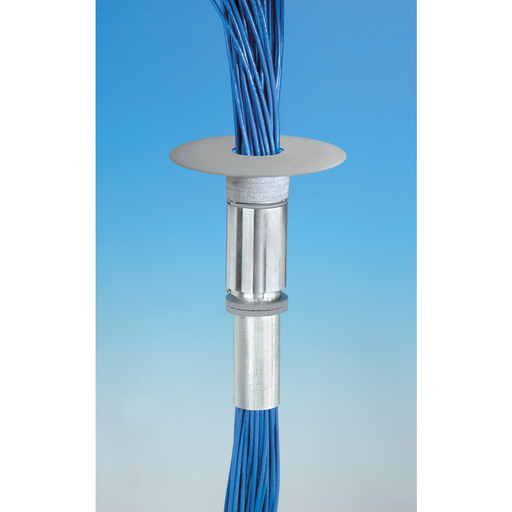

The Hubbell PT2FIT is designed for in-floor delivery systems. This poke-through fitting allows for low voltage large capacity flush furniture feed. It incorporates a two-inch EMT conduit stem and meets fire-rating standards. It features a step-down installation method and is suitable for power and data applications.

• Single service furniture feed fitting
• Up to 2 Hour fire rating
• Available for use with power or data

Product Highlights

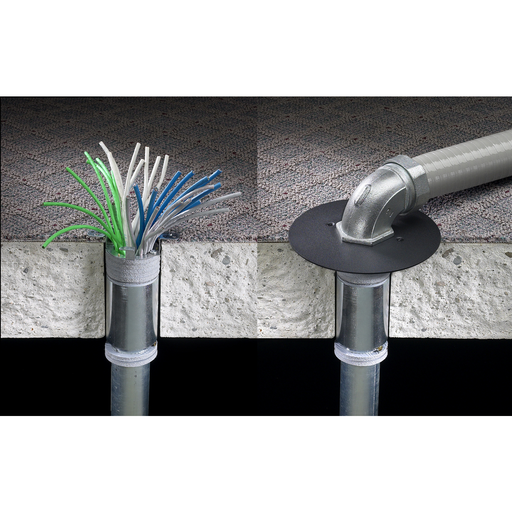

Ideal for installations where electrical access is needed through the floor, the PT2FIT offers functionality and flexibility.

Product Information

Standard Information

• Brand: Hubbell Wiring Device-Kellems
• Sub Brand: 3 Core Hole Series

Technical Specifications

• Construction: Fabricated
• Material: Composite
• Mounting Type: 3 in Core Hole in Concrete Floor
• Color: Metallic
• Height: 8.4 inches
• Length: 12.8 inches
• Width: 9.1 inches
• Cable Entry: Through Cover
• Fire Rating: 2 Hours
