Product Description

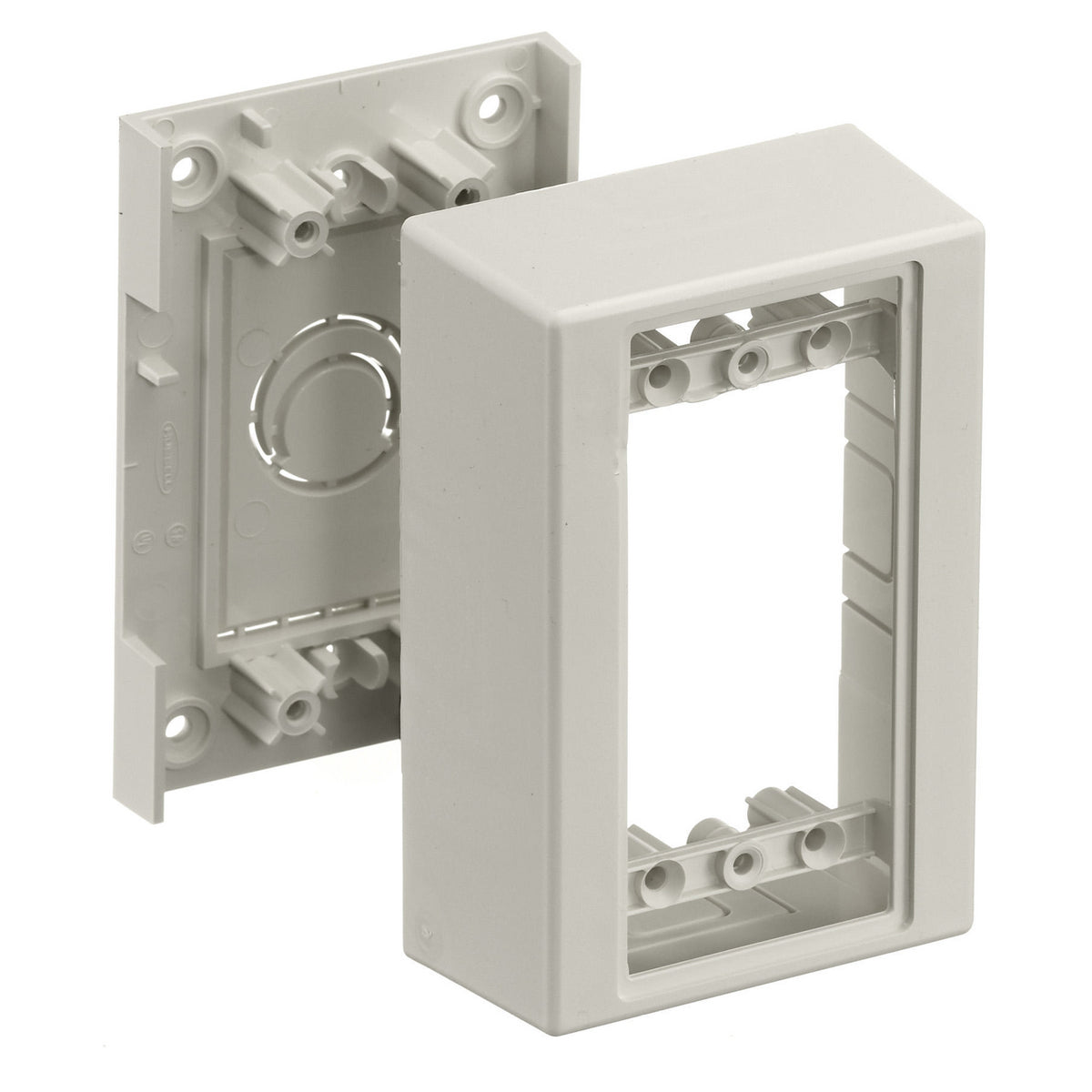

The Hubbell PT12DBA is a wiring device from the Kellems series. This standard 1-Gang deep extruded non-metallic station box is designed for surface mount applications. It is compatible with the PremiseTrak PT1 series single channel raceway and can also be used with POLYTRAK non-metallic raceways. This box is made of PVC and features dimensions of four point nine inches in length, three and one-quarter inches in width, and one point ninety-one inches in height.
- Designed for deep devices
- Compatible with various Hubbell raceway systems
- Includes all necessary fittings and devices
Product Highlights
The PT12DBA provides flexibility in mounting options and reduces the need for multiple inventory items.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
Manufacturer Part Number: PT12DBA
Technical Specifications
-
Application: Non-Hazardous Locations
-
Material: PVC
-
Color: Off-White
-
Height: 1.91 inches
-
Width: 3.25 inches
-
Length: 4.9 inches
-
Series: PT1
-
Suitable For Use With: PremiseTrak PT1 Series Single Channel Raceway
-
Standards/Approvals: CSA C22.2 No. 62, UL 5A File No. E118895/E119190, RoHS Compliant
