Product Description

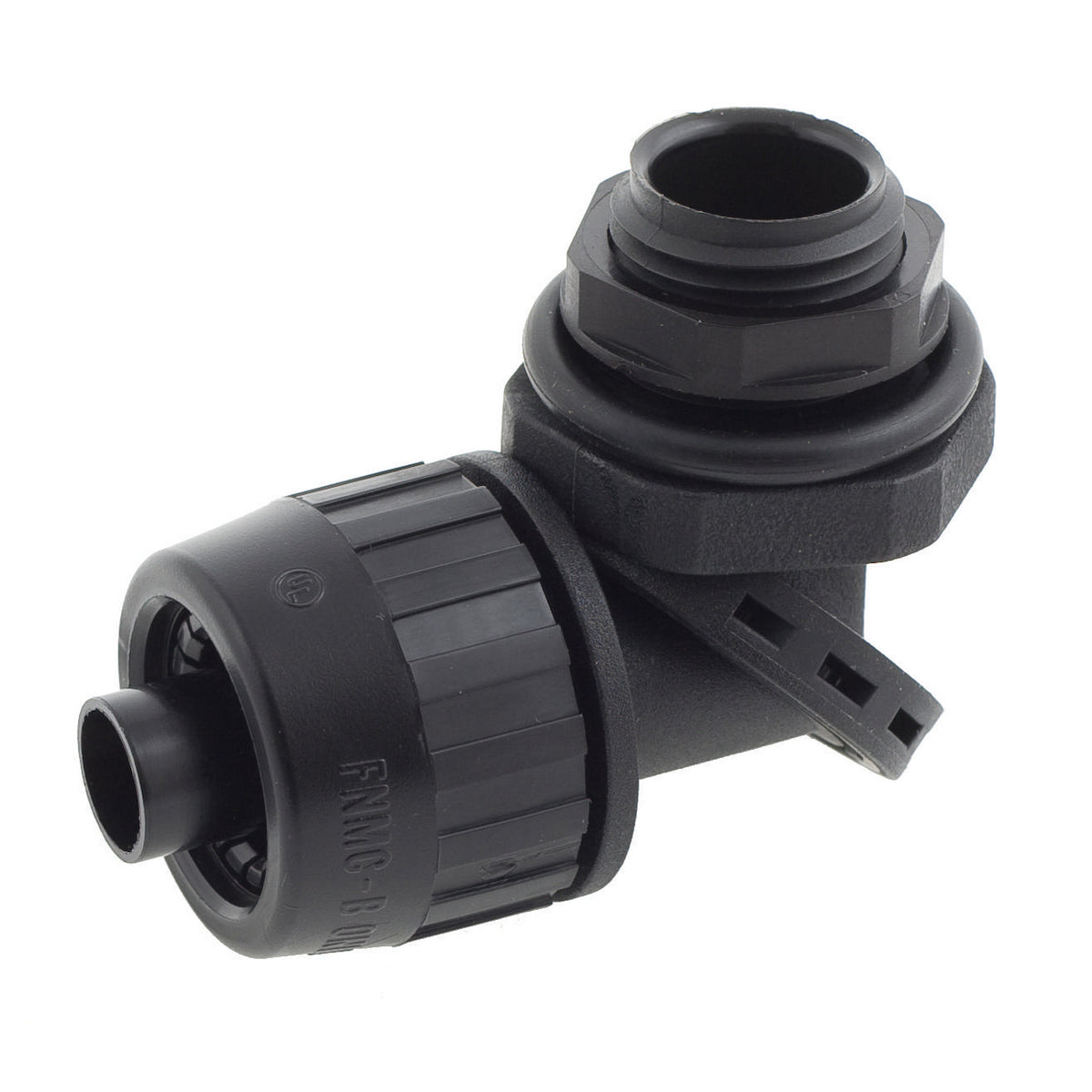

The Hubbell PS0509NBK is a liquidtight connector designed for use with PolyTuff I and PolyTuff II non-metallic conduits. This multi-position male non-metallic standard connector has a trade size of one-half inch and is made from nylon with a smooth finish. Its robust design provides a reliable solution for electrical connections in wet locations, ensuring safety and compliance.
- Suitable for use in wet locations when a listed sealing ring is used
- Nylon compression nut tightens securely onto the conduit
- Non-integral ferrule offers superior conduit seal and pullout protection
Product Highlights
This connector features a nylon two-piece swivel body allowing for a twist range from zero to ninety degrees. The neoprene O-ring provides liquidtight sealing at the hub or enclosure, making it effective for various installations.
Product Information
Standard Information
-
Manufacturer: Hubbell
-
MPN: PS0509NBK
Technical Specifications
-
Application: For use in wet locations with a sealing ring
-
Color: Black
-
Dimensions: 0.55 inches in diameter
-
Finish: Smooth
-
Material: Nylon
-
Mounting Type: Between enclosure and conduit
-
Standards/Approvals: CSA Certified, RoHS Compliant, UL 94V-2 Flammability Rating, UL Listed
-
Suitable For Use With: PolyTuff I and II non-metallic conduit
-
Trade Size: 1/2 inch
-
Type: Multi-Position Male Non-Metallic Standard
