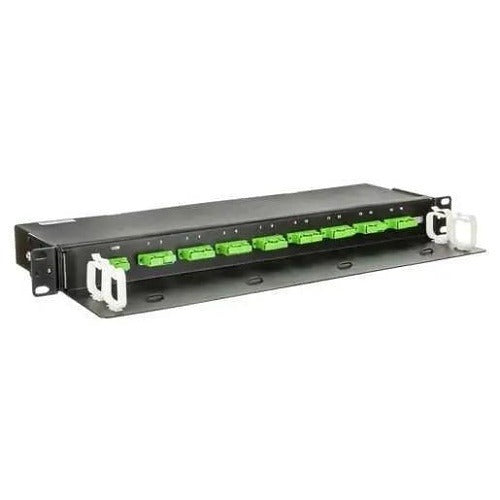

Hubbell Premise Wiring OFPNLSCA1X16P3 Fiber Splitter Panel

Product Description

The HUBBELL PREMISE WIRING OFPNLSCA1X16P3 is a 1U rack-mount fiber optic splitter panel configured in a 1x16 split ratio with SC-type connectors. It distributes a single optical input across 16 output ports, making it a passive component in fiber distribution networks. The panel-style housing is designed for standard 19-inch rack or enclosure installation. Licensed low-voltage and fiber optic technicians install this type of component in structured cabling, telecom, and data distribution systems where centralized optical splitting is required.

This splitter panel is suited for commercial and enterprise fiber optic distribution applications. The 1U form factor fits neatly into standard telecom racks and fiber enclosures. The 1x16 configuration supports point-to-multipoint passive optical network (PON) deployments, centralized fiber-to-the-floor distribution, or campus backbone splits. SC connectors are a widely used interface in both singlemode and multimode fiber plant installations.

Key Features

• 1x16 split ratio distributes one optical input to 16 output ports
• SC connector interface for broad compatibility with existing fiber plant
• 1U rack-mount panel form factor fits standard 19-inch telecom racks and enclosures
• Passive optical design requires no power for operation
• Sold as a single unit (each)

Compatibility

Designed as an OEM-style replacement or new-install component for 1U fiber optic distribution panels using SC-type connectors in standard rack enclosures.

Installation Notes

Installation should be performed by a qualified low-voltage or fiber optic technician familiar with structured cabling standards such as ANSI/TIA-568. Power to active equipment in the rack should be managed before routing fiber to avoid accidental damage. Use appropriate fiber handling tools and bend-radius guides when routing patch cables to SC ports. Never look directly into an optical fiber port or connector without confirming the fiber is not active.
