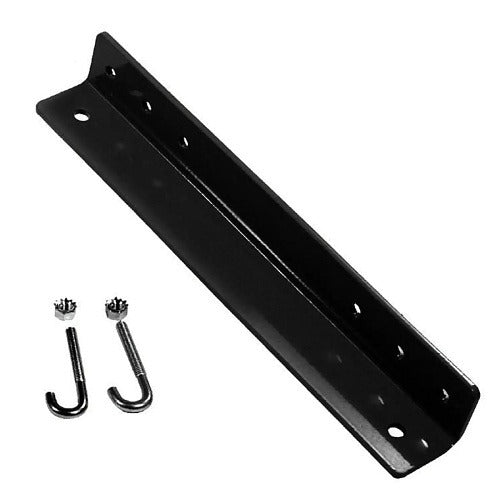

Hubbell Premise Wiring HLX24 Ladder Support

Product Description

The HUBBELL PREMISE WIRING HLX24 is a ladder support fitting designed for use in raceway and conduit installations. Ladder supports are structural mounting components that secure cable ladder systems to walls, ceilings, or overhead structures, maintaining proper spacing and load distribution along the cable run. This fitting is sold individually and is typically installed by licensed electricians or low-voltage cabling technicians during new construction or structured wiring retrofit projects. It provides a reliable anchor point that keeps ladder tray runs aligned and prevents sag between support intervals.

The HLX24 is suited for raceway and conduit applications where cable ladder systems require periodic support along their run length. Typical install scenarios include data centers, commercial office buildouts, industrial facilities, and institutional buildings where organized cable management is required by code or specification. The fitting is intended for use as part of a complete ladder tray assembly rather than as a standalone component.

Key Features

• Designed for ladder tray and raceway support applications
• Sold as an individual unit for flexible quantity purchasing
• Compatible with standard conduit and raceway cable management systems
• Provides structural support to maintain cable ladder alignment and spacing

Compatibility

Designed as an OEM-style fitting for raceway and conduit cable ladder support systems in commercial and industrial electrical installations.

Installation Notes

Installation is typically performed by a licensed electrician or structured cabling technician. De-energize all circuits in the work area before mounting hardware near live conductors. Follow applicable NEC guidelines for cable support spacing and load ratings. Ensure the mounting surface or structure can support the intended cable load before securing the fitting.
