Hubbell Power Systems PSCA790W Dome Closure All Dielectric 648 Single Fusion 8 Ports 24 in. L

Product Description

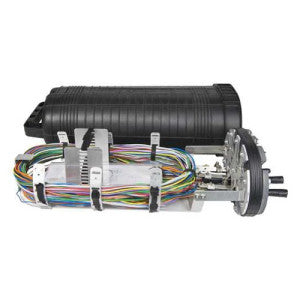

The Hubbell Power Systems PSCA790W is a dome closure for all dielectric fiber optic cables, supporting up to six hundred forty-eight single fusion and one thousand seven hundred twenty-eight ribbon fibers. Designed for durability, it features four backbone ports that accept cables with a maximum outer diameter of one point two five inches and four lateral ports for cables up to zero point eight seven five inches.

• Supports a variety of fiber counts
• Split seal and waterproof construction
• Innovative design allows easy cable additions

Product Highlights

This product is engineered for use with dielectric cables, and all ports are slotted to prevent cable trapping, making mid-sheath splicing and additions straightforward. It is equipped with a convenient carrying handle for mobility and features an impressive storage capacity for buffer tubes.

Product Information

Standard Information

• Brand: Hubbell Power Systems
• Part Number: PSCA790W

Technical Specifications

• Maximum cable diameter for backbone ports: 1.250 inches
• Maximum cable diameter for lateral ports: 0.875 inches
• Number of ports: 8
• Maximum number of trays: 12
• Maximum single fusion splice capacity: 648
• Tray capacity: Wide for 36, 48, 54
• Dimensions: 24 inches L x 7.5 inches H x 10 inches W
