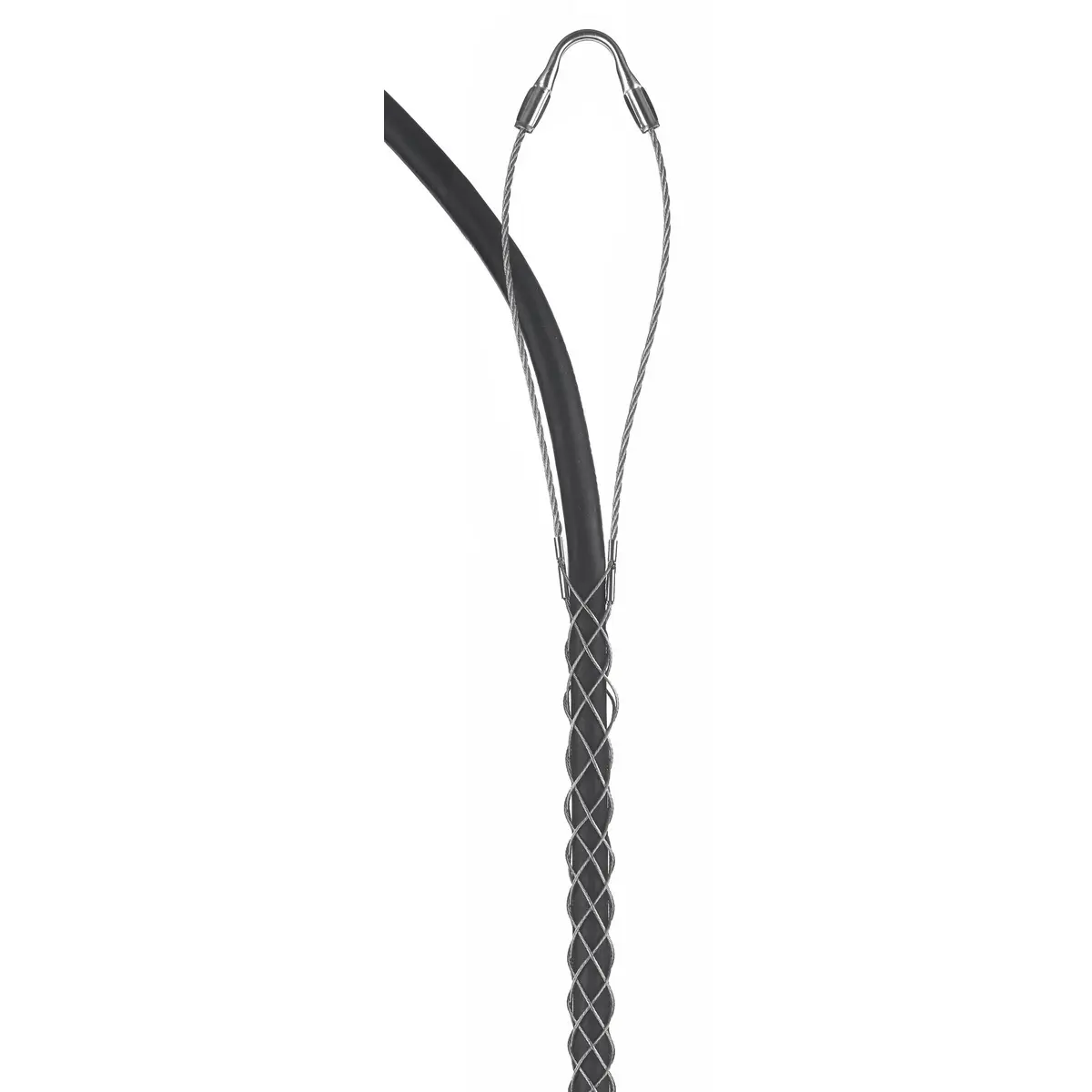

Hubbell Power 02201014 Standard Duty Support Grip Single Eye Closed Mesh Tin Coated Bronze

Product Description

The Hubbell Power 02201014 is a standard duty support grip used for supporting electrical cables. This grip features a single eye and closed mesh design, making it suitable for applications where cable ends are accessible. It is made from tin-coated bronze and can hold cables with diameters ranging from zero point six three inches to zero point seven four inches. This product is optimal for single hook attachment in both permanent indoor and outdoor setups.

• Closed mesh design for optimal grip
• Single eye for easy installation
• Constructed from durable tin-coated bronze

Product Highlights

The Hubbell Power support grip is versatile and reliable for various cable management needs.

Product Information

Standard Information

• Brand Name: Hubbell Wiring Device Kellems
• Sub Brand: Kellems Wire Management

Technical Specifications

• Item Name: Support Grip
• Type: Standard, Single Eye, Closed Mesh
• Cable Size: 0.63 to 0.74 in
• Conductor Range: 0.63 - 0.74 in
• Length: 19.000 in
• Color Code: Metallic, Galvanized
• Material: Bronze, Tin Coated
• Breaking Strength: 790 lb
• Mounting Type: Screw Hook or Beam Clamp
• Standards: CSA Certified
• Application: Single Eye
• Mesh Length: 10 in
• Finish: Tin Coated
• Approx Breaking Strength: 790 lbs
• Construction: Woven
• EU RoHS Indicator: Yes
• Series: Standard Duty
• Style: Closed Mesh, Single Weave
