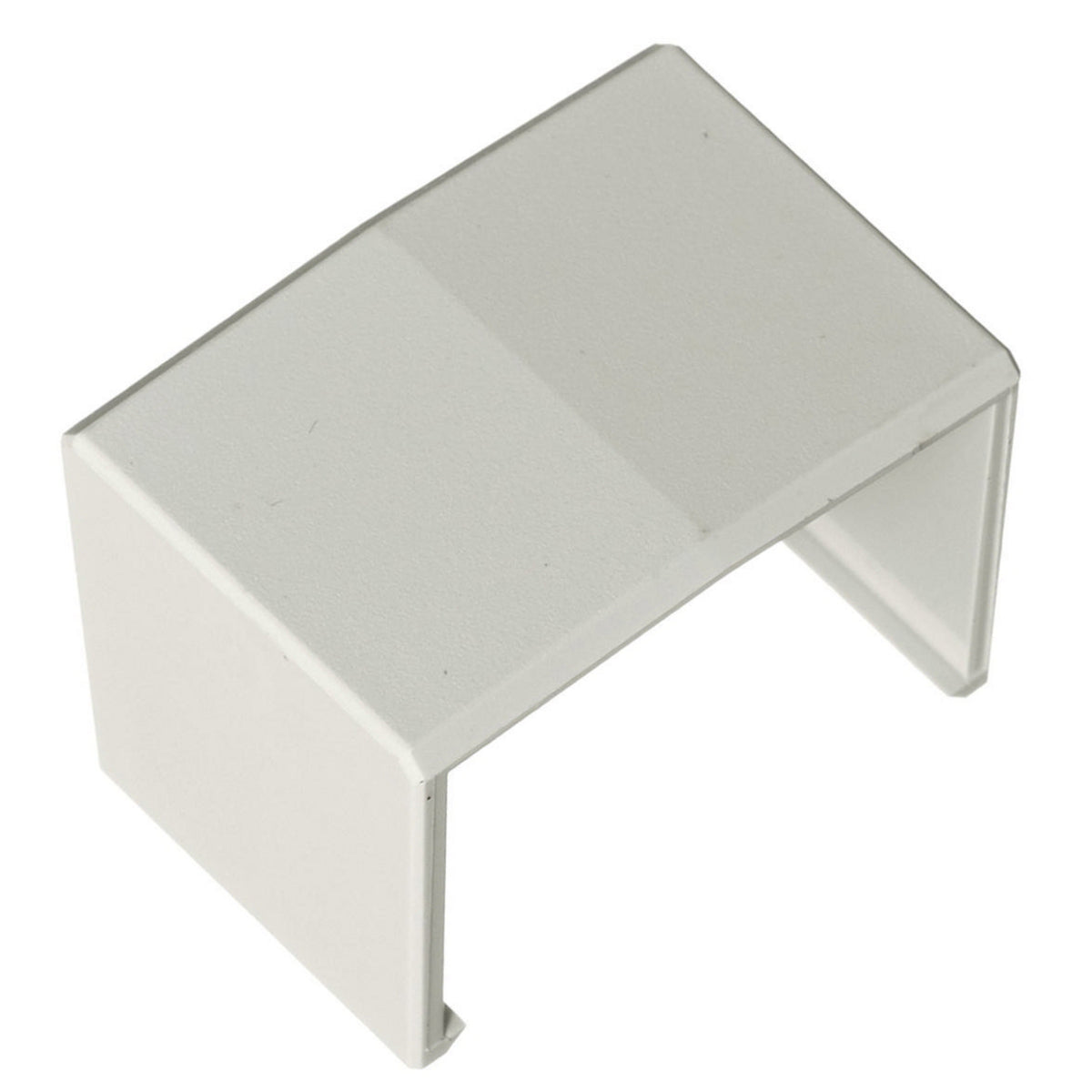

Hubbell PL1SC Lanktrak Splice Cover

Product Description

The Hubbell PL1SC Lanktrak splice cover is designed for covering potential openings where two lengths of raceway come together. This splice cover is part of the PL1 series and is made from PVC. It is suitable for use with LANTrak PL1 series latching non-metallic raceways.

• For covering potential openings where two lengths of raceway come together
• Without knockouts
• Used for PL1 Raceway

Product Highlights

The Hubbell PL1SC splice cover ensures secure connections in raceway systems, providing a clean and protected installation.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: PL1SC
• Country of Origin: PR - Puerto Rico

Technical Specifications

• Manufacturer Part Number: PL1SC
• Series: PL1
• Material: PVC
• Suitable For Use With: LANTrak PL1 Series Latching Non-Metallic Raceway;LANTrak PL1 Latching Non-Metallic Raceways
• Type: Extruded Non-Metallic Standard;Extruded Non Metallic Removable Standard
• Application: Non-Hazardous Locations
• Height: 1.11 in
• Length: 1.12 in
• Width: 1.55 in
• Standards/Approvals: CSA C22.2 No. 62|UL 5A File No. E118895/E119190;RoHS Compliant|UL 5A|CSA Certified
• Catalog Number: PL1SC
• Item Type: PL1 LANTrak (Latching) Series
• Performance: Environmental - Flame Rating - UL94V-0 Environmental - Temperature Range - -25.6° to 158° F
• Specifications: Crush Resistance - 300 lbs. Impact Resistance - 5 ft. lbs. Material - UV Stabilized PVC
• Style: Splice Cover
• UPC: 783585090337
• Industry Standard(s): CSA Standard C22.2 no. 62 E118895 / E119190 UL Standard UL 5A
• Standards - RoHS Compliance Status: CM
• ECCN: EAR99
• UNSPSC: 39131711
• Brand: HUBBELL
• Country of Origin: United States
• Minimum Order Qty: 1
• Order Interval: 1
• Size: 1.12 in L X 1.55 in W X 1.11 in H
