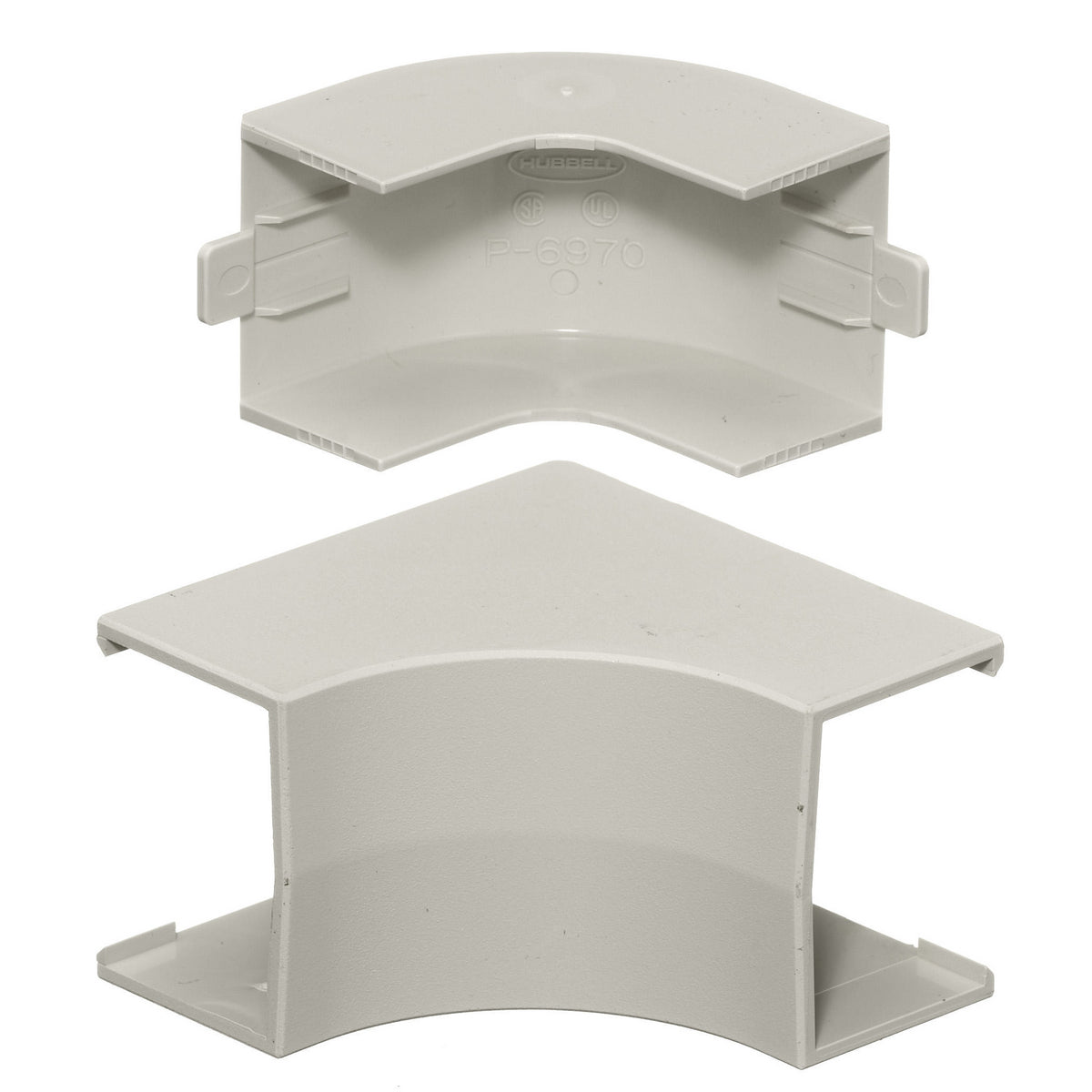

Hubbell PL1IEBC HUB LAN/PLUG 1 1/4 Radius Internal Elbow

Product Description

The Hubbell PL1IEBC is a raceway elbow designed for LANTrak systems. This elbow has a bend radius of one and one-quarter inches and is made from non-metallic materials. The PL1IEBC provides a path for electrical wiring while maintaining a clean appearance. It is ideal for installations in non-hazardous locations.

• For use with LANTrak PL1 Series raceways
• Extruded non-metallic full capacity standard
• Dimensions: 2.51 inches L x 1.57 inches W x 2.51 inches H

Product Highlights

This product features an internal latching system to securely hold the raceway in place. It also complies with CSA and UL standards, making it a reliable choice for electrical installations.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358509028

Technical Specifications

• Application: Non-Hazardous Locations
• Bend Radius: 1-1/4 inches
• Color: Off-White
• Includes: Base and Cover
• Size: 1.03 sq-in
• Standards/Approvals: CSA C22.2 No. 62, UL 5A File No. E118895/E119190, RoHS Compliant, CSA Certified, NEMA 1
• Suitable For Use With: LANTrak PL1 Series Latching Non-Metallic Raceway
• Type: Extruded Inside Latching Non-Metallic Full Capacity Standard
