Hubbell PL1FE Elbow Flat PVC Used for PL1 Raceway

Product Description

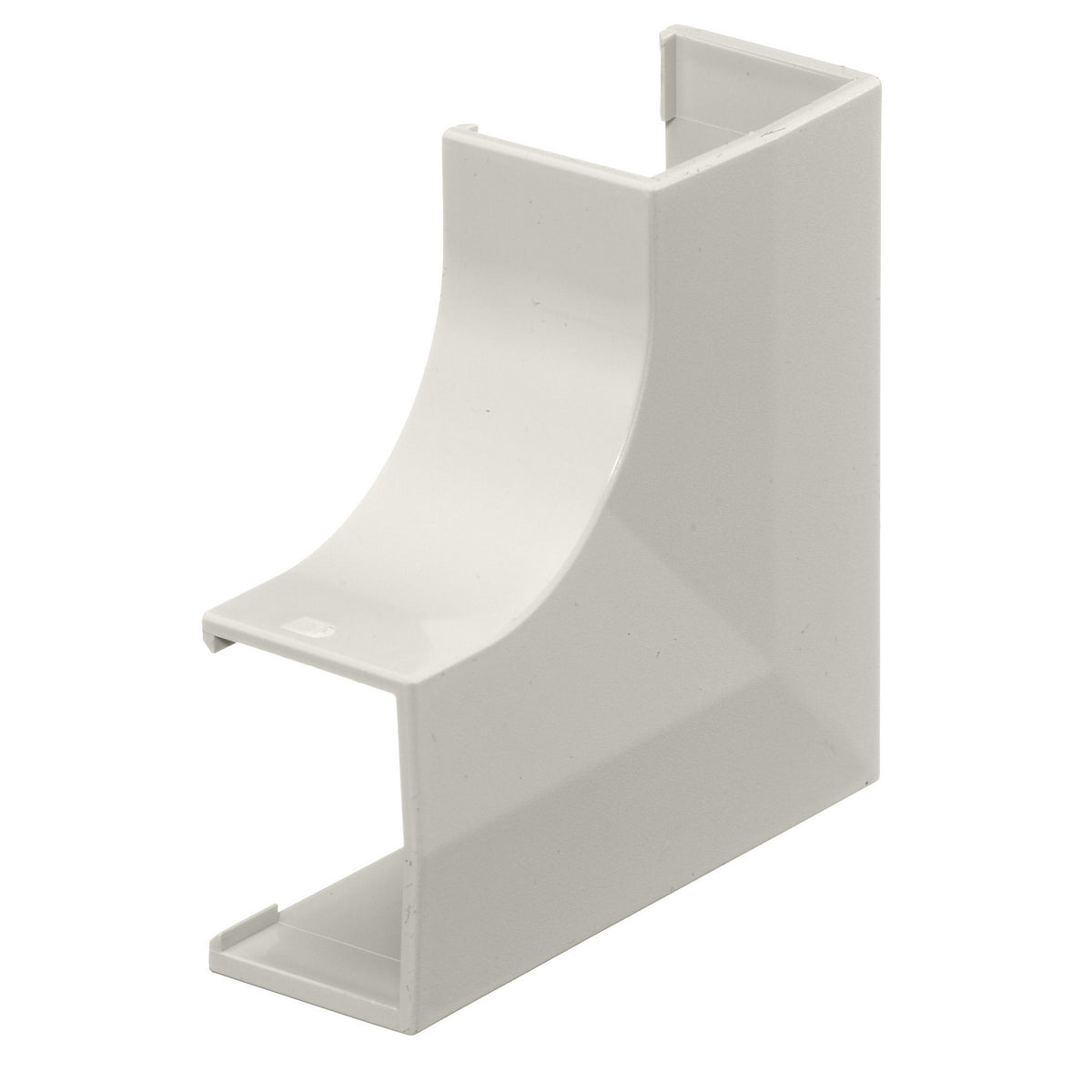

The HUBBELL PL1FE is a flat elbow, constructed from PVC, designed for use with PL1 raceways. This elbow provides a full capacity 1 in. bend radius. It is suitable for use with Lantrak and New Plugtrak one-piece non-metallic latching raceways. UL Listed and CSA Certified.

• Constructed from PVC
• Designed for use with PL1 raceways
• Full capacity 1 in. bend radius flat elbow

Product Highlights

The HUBBELL PL1FE flat elbow is ideal for creating bends in PL1 raceway systems, ensuring a neat and organized cable management solution.

Product Information

Standard Information

• Brand: HUBBELL
• Manufacturer Part Number: PL1FE
• Country of Origin: Puerto Rico

Technical Specifications

• Catalog Number: PL1FE
• Color: Office White
• Item Type: PL1 LANTrak (Latching) Series
• Material: PVC
• Performance: Environmental - Flame Rating - UL94V-0 Environmental - Temperature Range - -25.6 to 158 F
• Series: PL1 PP1
• Specifications: Crush Resistance - 300 lbs. Impact Resistance - 5 ft. lbs. Material - UV Stabilized PVC
• Style: Flat
• Type: Elbows
• UPC: 783585090306
• Industry Standard(s): CSA Standard C22.2 no. 62 E118895 / E119190 UL Standard UL 5A
• Connection Type: Snap-On
• Enclosure: NEMA 1 Rating
• Material Type: Non-Metallic
• Standard: CSA Standard C22.2 No. 62,E118895,E119190,UL Standard UL 5A
• Brand: Hubbell Premise Wiring
• Sub Brand: Non-Metallic Raceway Products
• 12-Digit UPC: 783585090306
• Construction: Extruded
• GTiN: 00783585090306
• Product Series: PL1,PP1
• Product UPC: 78358509030
• Used With: PL1 LANTrak (Latching) Series Non-Metallic Raceway
• Height: 1.1 Inch
• Length: 3.2 Inch
• Width: 6.0 in
• Suitable For Use With: Lantrak[T], New Plugtrak[R] One Piece Non Metallic Latching Raceway
• Manufacturer: Hubbell
• Family Series: Hubbell Raceways, PL1 Series
• Description: LANTRAK, FLAT ELBOW
