Hubbell PL1EEBC Premise Wiring LAN/Plug 1 1/4 Radius Ext Elbow

Product Description

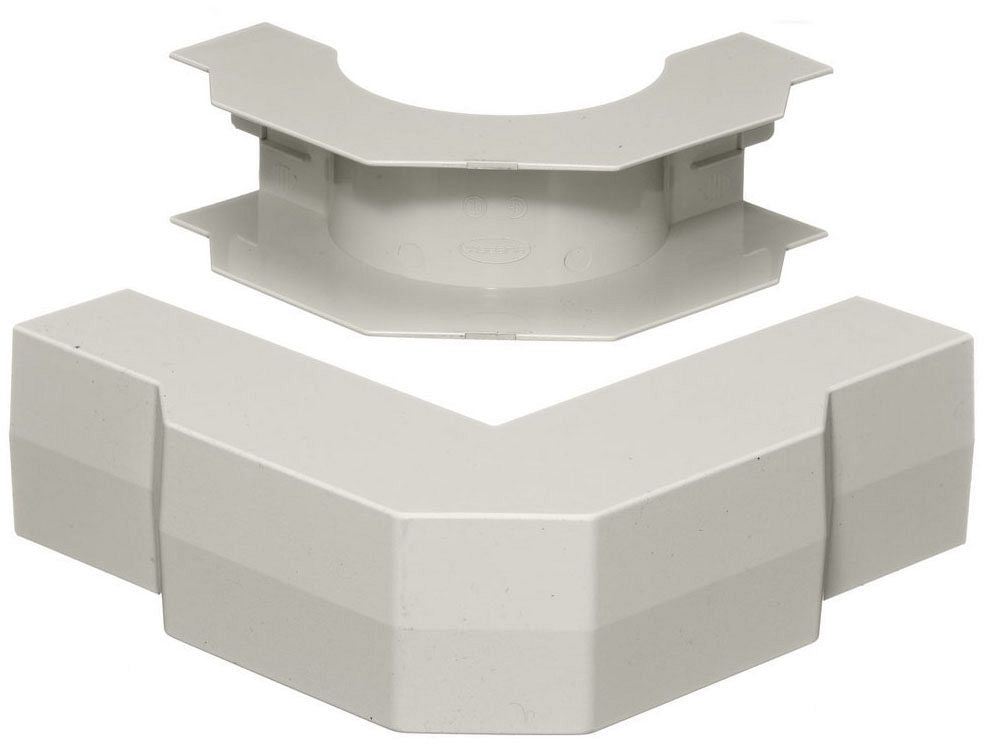

The Hubbell PL1EEBC is an external elbow designed for non-metallic raceways. It provides a bend radius of one and one-fourth inches. This elbow is suitable for use with the LANTrak PL1 Series latching non-metallic raceway. It measures eleven inches in length, eight inches in width, and one point nine inches in height.

• Non-hazardous applications
• Includes base and cover
• RoHS compliant and UL approved

Product Highlights

The PL1EEBC elbow allows effective routing of cables while maintaining the integrity of the raceway.

Product Information

Standard Information

• Manufacturer: Hubbell
• UPC: 78358509026

Technical Specifications

• Type: Extruded Non-Metallic Full Capacity Standard
• Bend Radius: 1-1/4 in
• Color: Off-White
• Dimensions: 11 in L x 8 in W x 1.9 in H
• Application: Non-Hazardous Locations
• Includes: Base and Cover
• Manufacturer Part Number: PL1EEBC
• Standards/Approvals: RoHS Compliant, UL 5A File No. E118895/E119190, CSA C22.2 No. 62, NEMA 1
• Suitable For Use With: LANTrak PL1 Series Latching Non-Metallic Raceway
